13-9
CONTROL SYSTEM
Revision Y05-01Service Manual - DNG Series
13.4 Cooling
Mode: Cool, Auto (at Cooling)
Temp: Selected desired temperature.
Fan: HIGH, MED, and LOW
Timer: Any
I Feel: On or Off

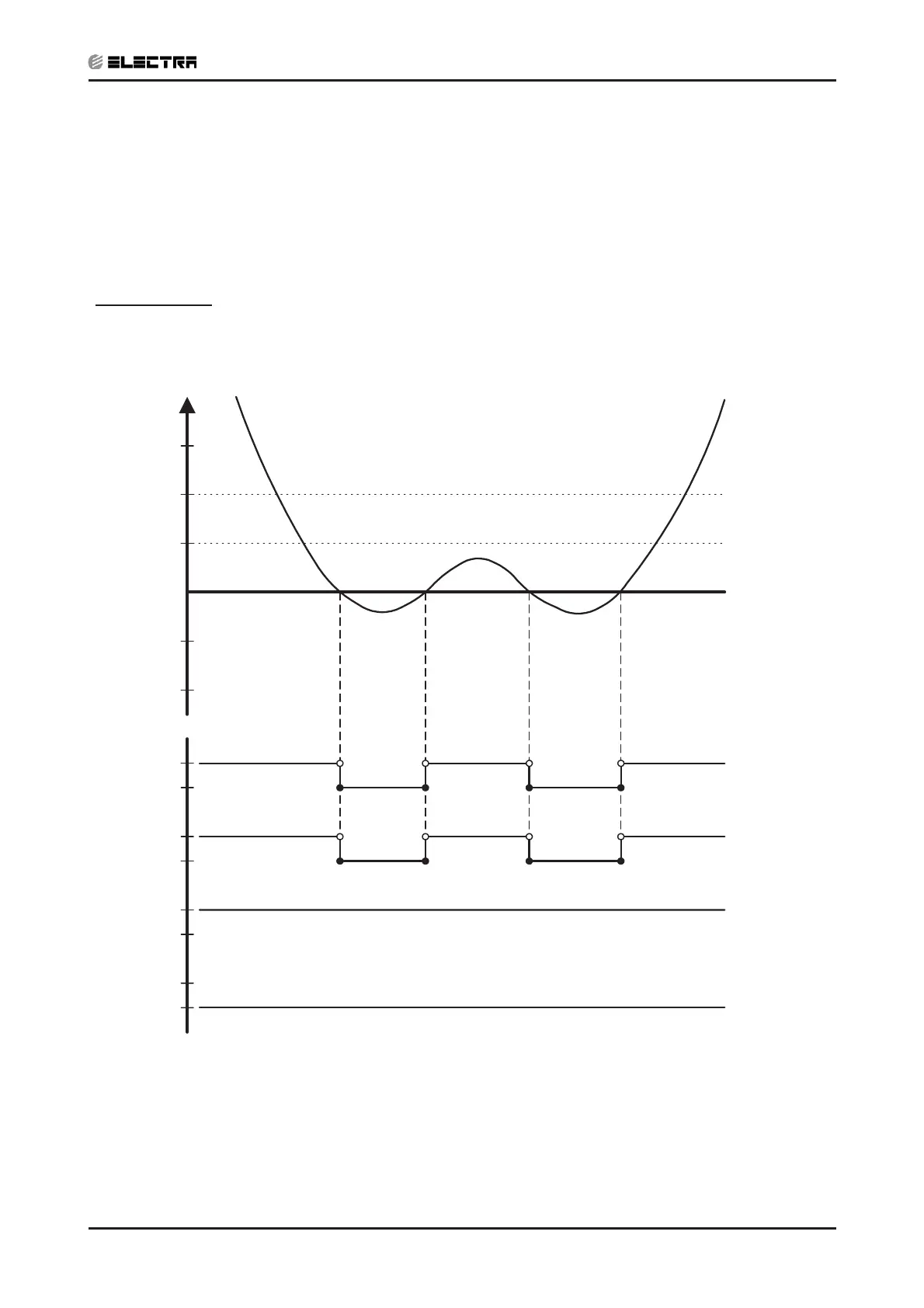

Control function
Maintains room temp at desired level by comparing RT and SPT.
(RT - SPT) [
o
c]
+3
+2
+1
0
-1
-2
ON
OFF
ON
OFF
USER FAN SPEED
ON
OFF
COMP
(WVL)
OFAN
IFAN
RV
Note:
1) IFAN is always running at High, Medium or Low speed selected by user.
2) In IFEEL mode, the Room Temperature (RT) is the RCT from an R/C.
Otherwise, the RT is the RAT from the Room Thermistor.
