CONTROL SYSTEM
Revision Y05-01
Service Manual - DNG Series
13.4.1 Cooling with Autofan
Mode: Cool, Auto (at cooling)
Temp: Selected desired temperature
Fan: Auto
Timer: Any
I Feel: On or Off

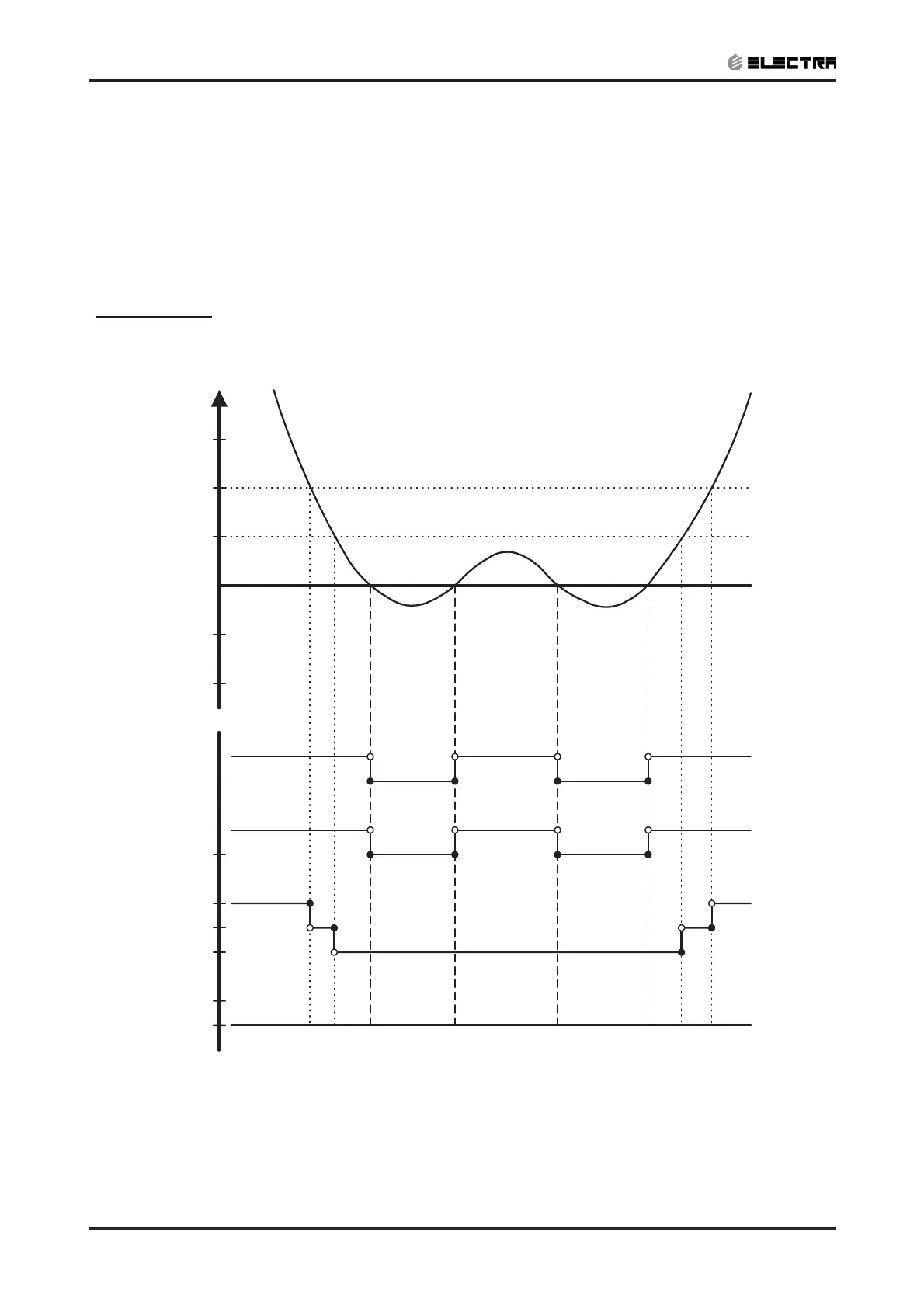

Control function
Maintains room temp at desired level and controls the IFAN speed for optimal comfort.
(RT - SPT) [
o
c]
+3
+2
+1
0
-1
-2
ON
OFF
ON
OFF
H
L
M
ON
OFF
COMP
(WVL)
OFAN
IFAN
RV
