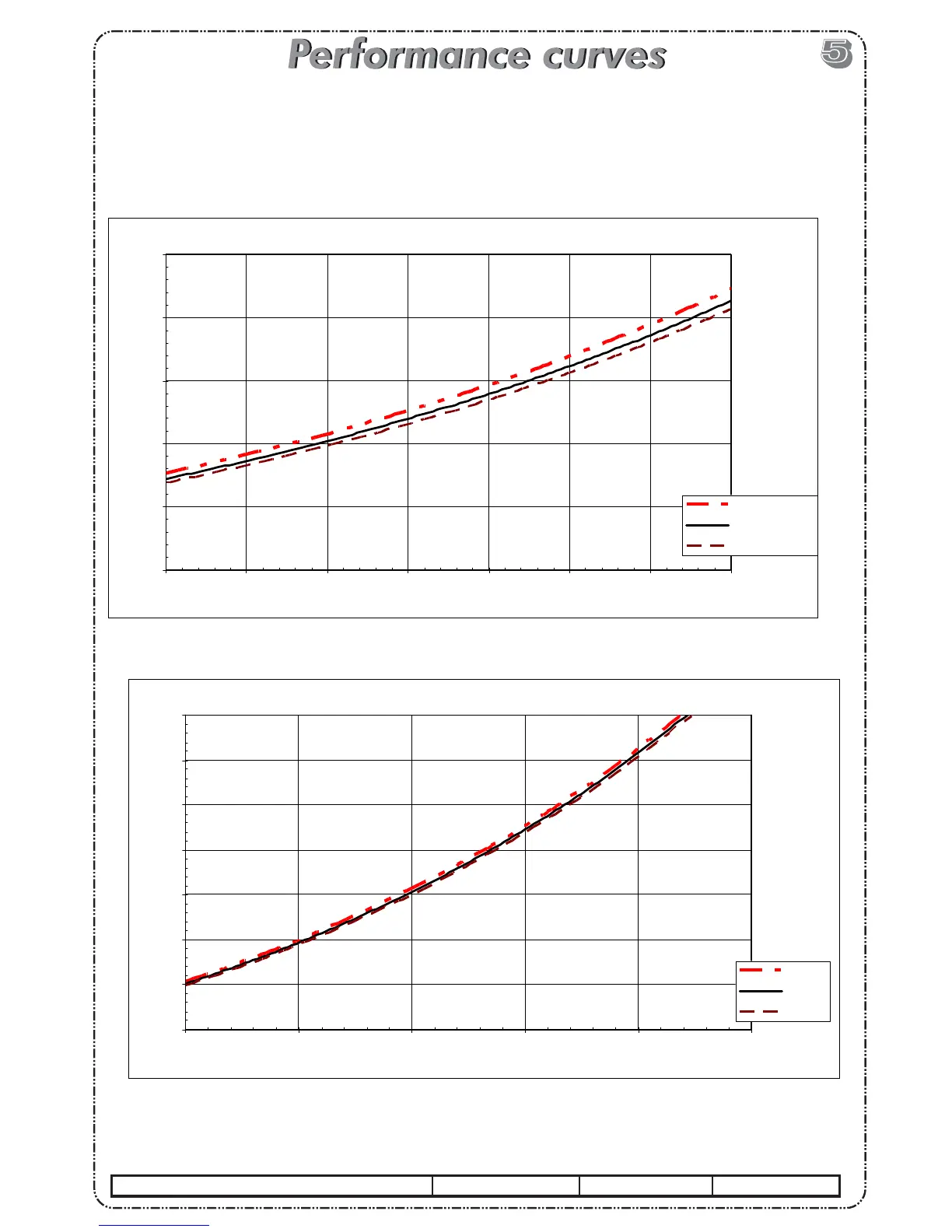

FS1200T R407c COOLING DISCHARGE PRESSURE
5.0
10.0
15.0
20.0
25.0
30.0
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
DISCHARGE PRESSURE [Bar(g
30 C DB/50%RH
26 C DB/50%RH
23 C DB/50%RH
Indoor Temp.
FS1200T R407c HEATING SUCTION PRESSURE
1.50
2.00
2.50
3.00
3.50
4.00
4.50
5.00
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
SUCTION PRESSURE [Bar(g
)
20 C DB
18 C DB
15 C DB
Indoor Temp.
FS KFR 120L
Rev.: 01
Series: FS
Date: 20/02/2004
