Electra FS 1200 - Page 6

Model:

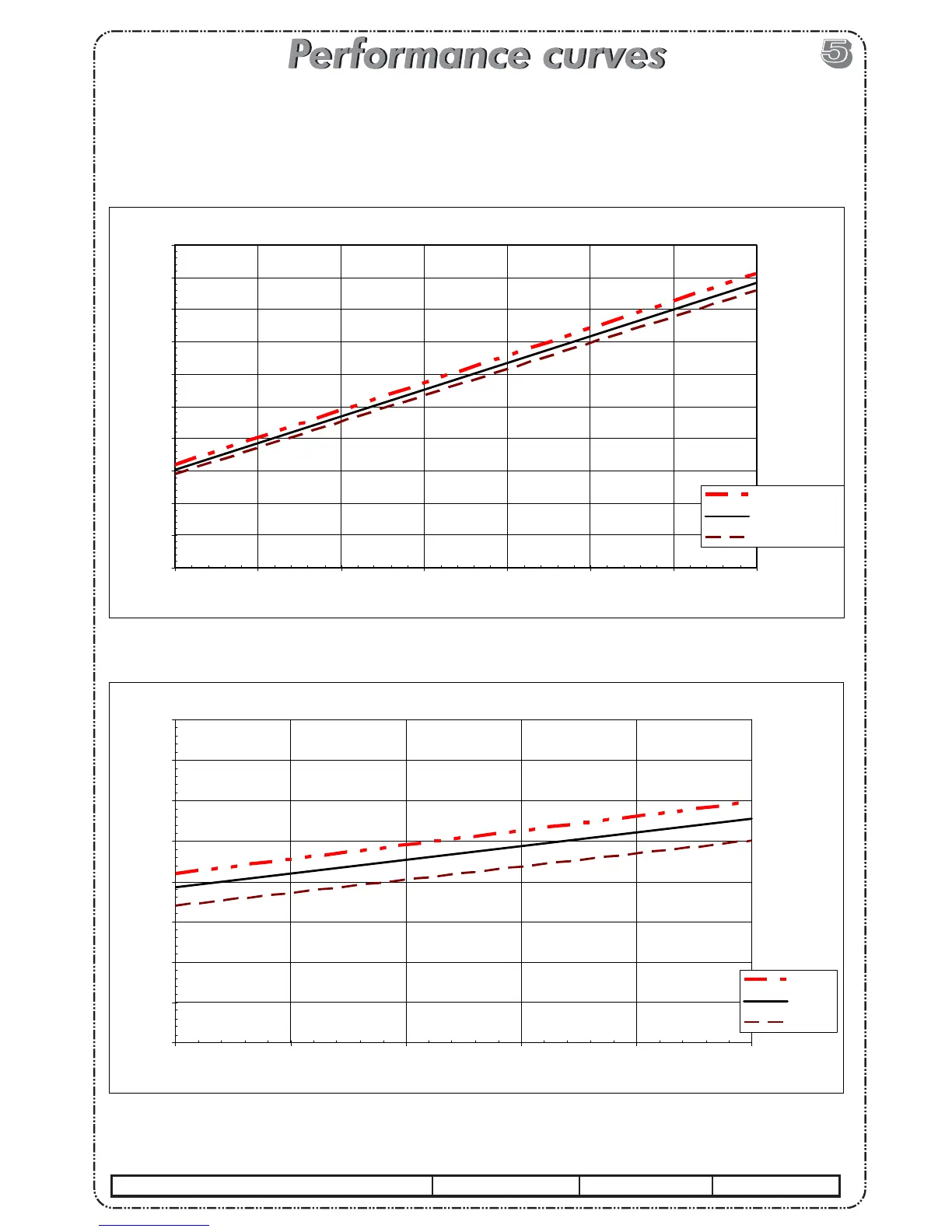

FS1200T R407c COOLING TOTAL INPUT
1,500
2,000
2,500
3,000
3,500
4,000
4,500
5,000
5,500
6,000
6,500
10 15 20 25 30 35 40 45
Outdoor Temp. (C DB)
TOTAL INPUT (W
)
30 C DB/50% RH
26 C DB/50% RH
23 C WB/50% RH
Indoor Temp.
FS1200T R407c HEATING TOTAL INPUT
2,500
3,000
3,500
4,000
4,500
5,000
5,500
6,000
6,500
-10 -5 0 5 10 15
Outdoor Temp. (C DB)
TOTAL INPUT (W
)
20 C DB
18 C DB
15 C DB
Indoor Temp.
FS KFR 120L
Rev.: 01
Series: FS
Date: 20/02/2004
