SOI/DT 2003 - 01 eb 14 599 35 63-72

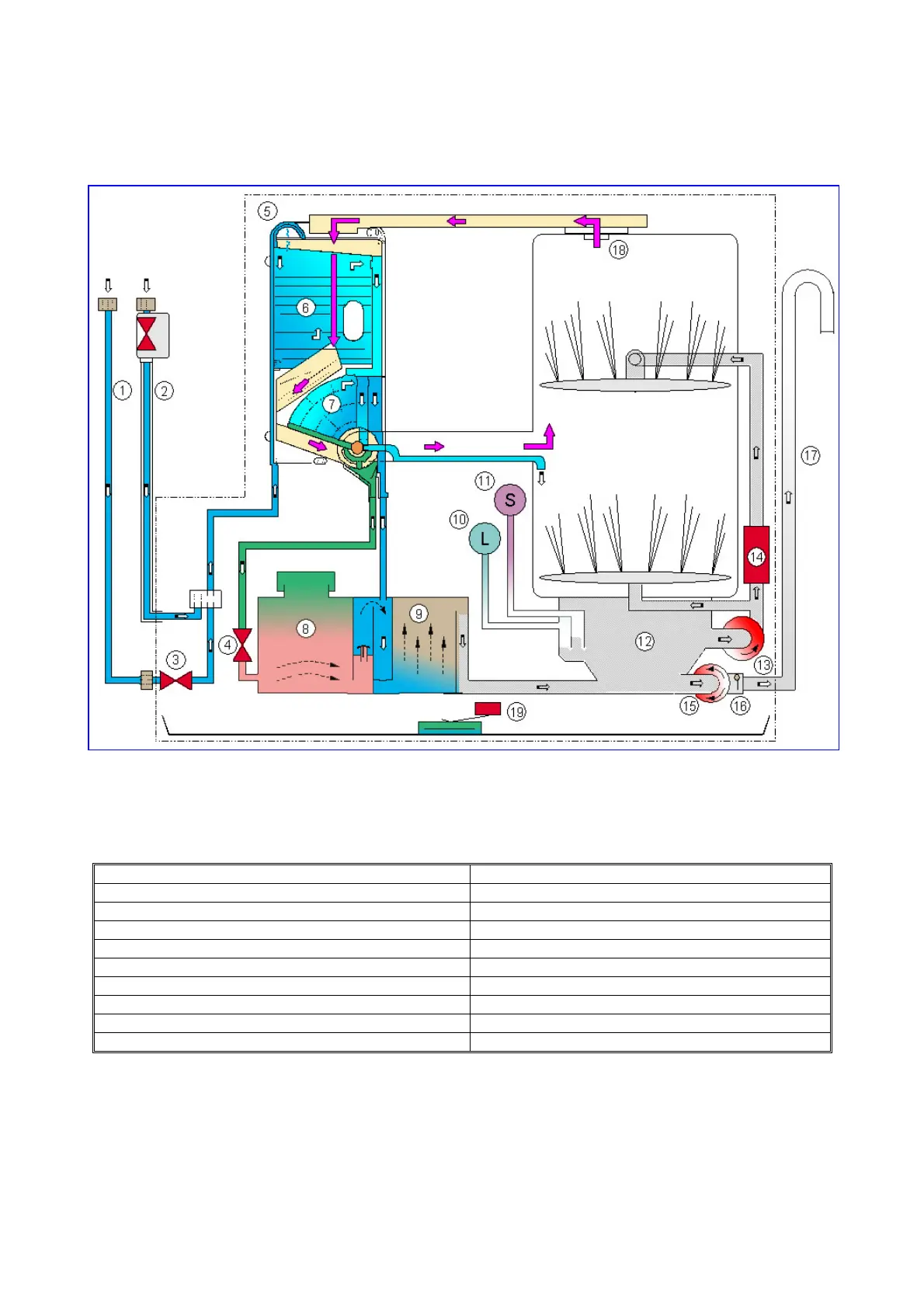

5.3 Hydraulic circuit
KEY
1 - Fill hose 11 - Anti-overflow pressure switch
2 - Fill hose with Acquacontrol 12 - Sump assembly
3 - Fill solenoid 13 - Wash pump
4 - Regeneration solenoid 14 - Tube-enclosed heating element
5 - Air-Break 15 - Drain pump
6 - Steam condenser 16 - Non-return valve
7 - Regeneration chamber 17 - Drain hose
8 - Salt Reservoir 18 - Drying duct / fan
9 - Resin Reservoir 19 - Anti-flooding device
10 - Level pressure switch
