4 CONTROL PANEL
4.1 Control panel
The configuration of the control panel depends on the following:
Typology of the electronic board:
horizontal buttons
vertical buttons
Number of programme selection buttons (from a minimum of 3 to a maximum of 6)
Number of LEDs (max.13)
Position of the ON/OFF button (right or left)

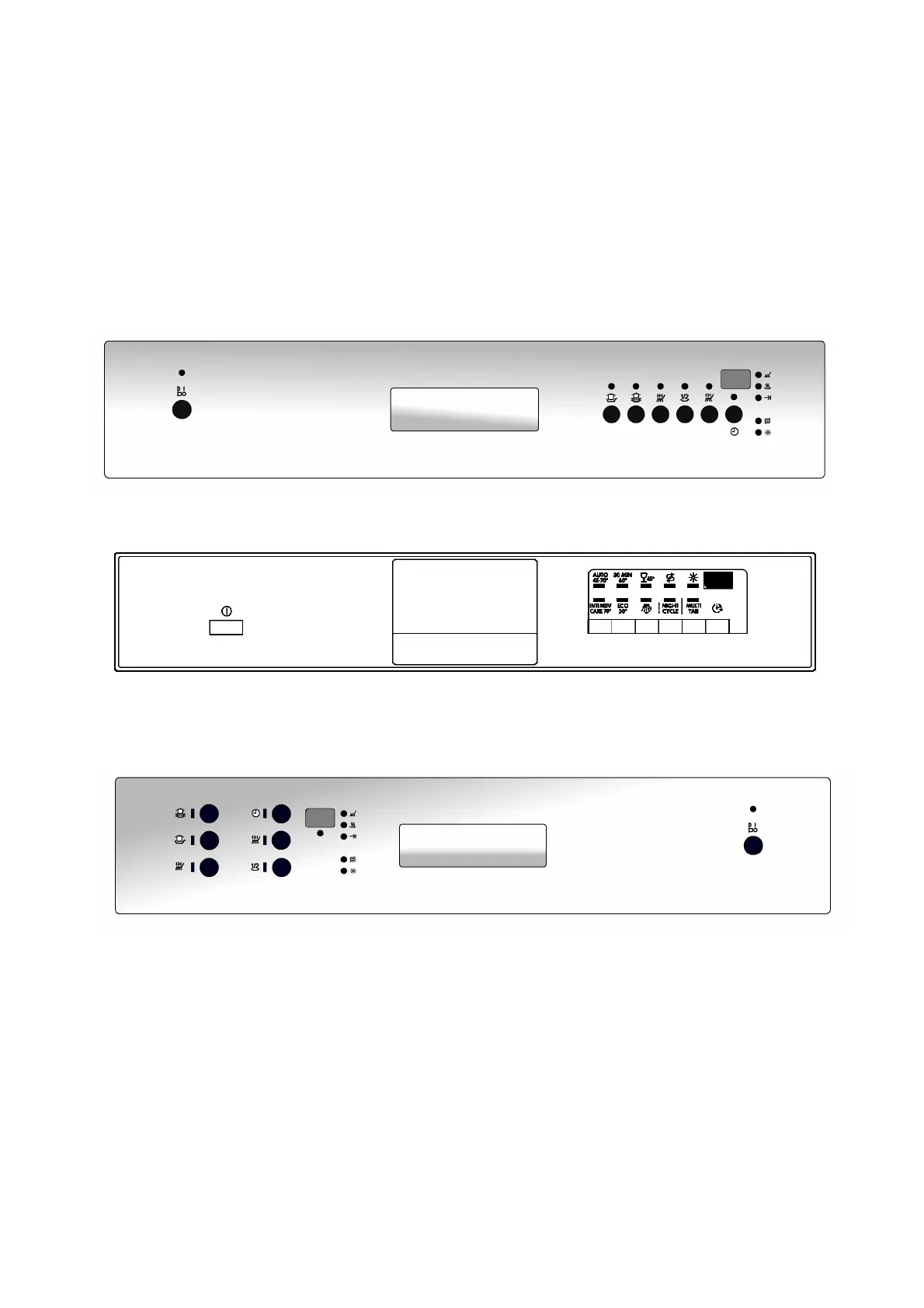

Version EDW1500 with horizontal buttons
Version EDW1510
Version EDW1500 with vertical buttons
Key
S0 ON/OFF button
S1
÷
÷÷
÷
S6 Programme/option selection buttons
LD1
÷
÷÷
÷
LD6 Programme/Option indicator LEDs
LD7
÷
÷÷
÷
LD12 Indicator LEDs phases / warnings (washing, drying, end of cycle, salt, rinse-aid)
