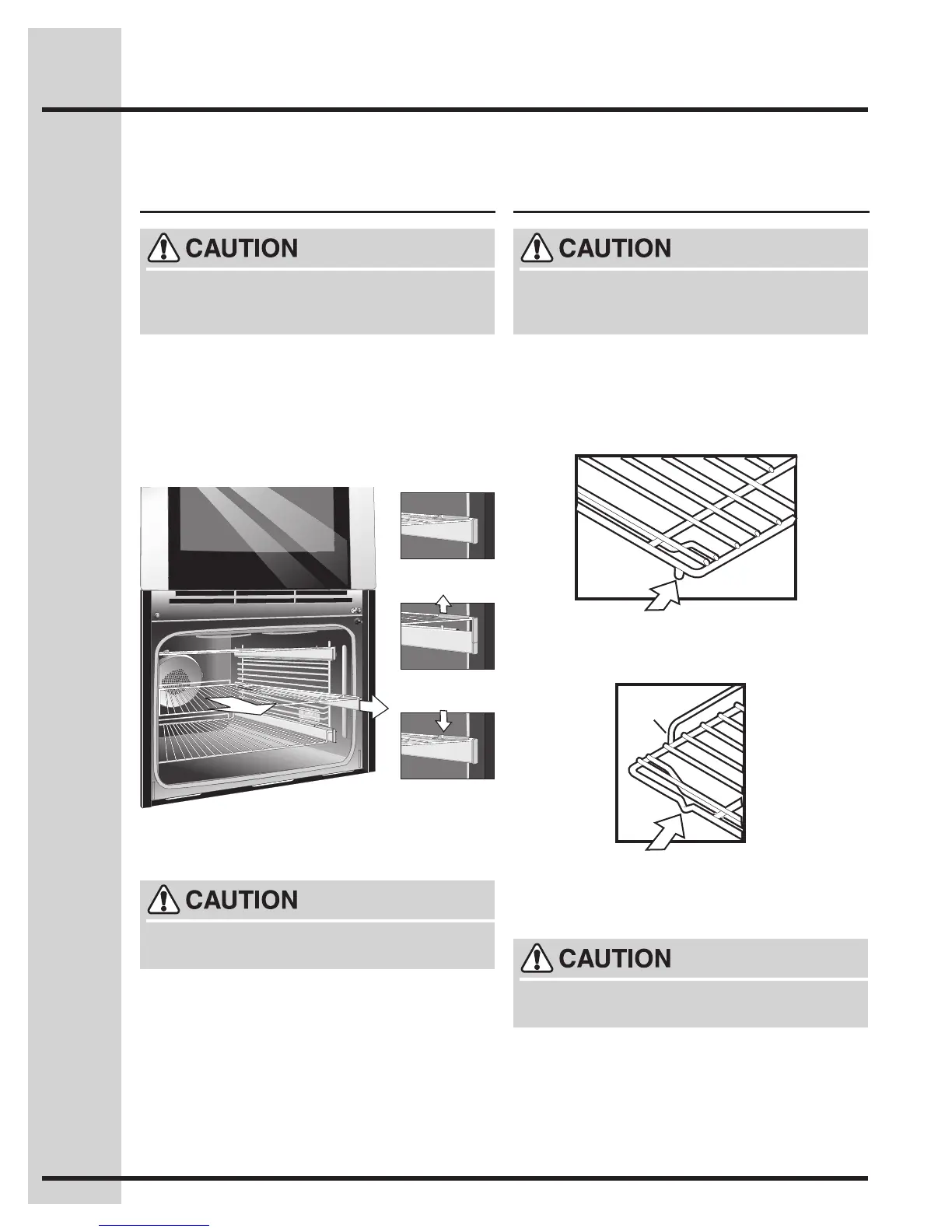

Electrolux E30MC75JPS - Oven Rack Installation

20
Setting for Best Results
Removing and replacing
extendable oven racks
Installing standard oven
racks
Always arrange the oven racks when the oven is
cool (prior to operating the oven).
Always use oven mitts when using the oven.
Always arrange the oven racks when the oven is
cool (prior to operating the oven).
Always use oven mitts when using the oven.
Donottrytoinstalltheextendableovenracksinto
the standard oven rack levels (or rack support).
Donottrytoinstallthestandardovenrackonthe
sliders.
Installed on
sliders
To remove
from sliders
To place on
sliders
Pull oven rack forward and lift
it up off the oven rack slider.
To install, take a standard oven rack with the handle
in front of you and the stoppers looking down. Align
the rear of the rack on the level you want to install
it, then push on the rack to slide it in the level until it
stops.
This stopper will prevent the rack to bump on the
convection fan cover at the end of its course.
This“safetystopper”willstoptherackwhenyou
pull it out. This will prevent you to accidentally pull
the rack too far and make it fall.
Mustpoint
upward
FRONT
BACK
To remove an oven rack, pull the rack forward.
Liftuptherackofftheovenrackslider.Toinstall
an oven rack, locate the two pinholes in the small
plates at the front corners of the rack. Place the
rack on the side sliders and drop the pin holes over
the pins on the sliders.
