Electrolux GOOD - Auto Temp System (Better Models); Automatic Dispenser

52
activated. When the TEMP switch is set to Cold/Cold,
in the wash cycle the wash solenoid is activated and the
bleach solenoid is activated, for all except the last fill, in
rinse. For the last rinse fill, the wash and bleach solenoids
are activated.

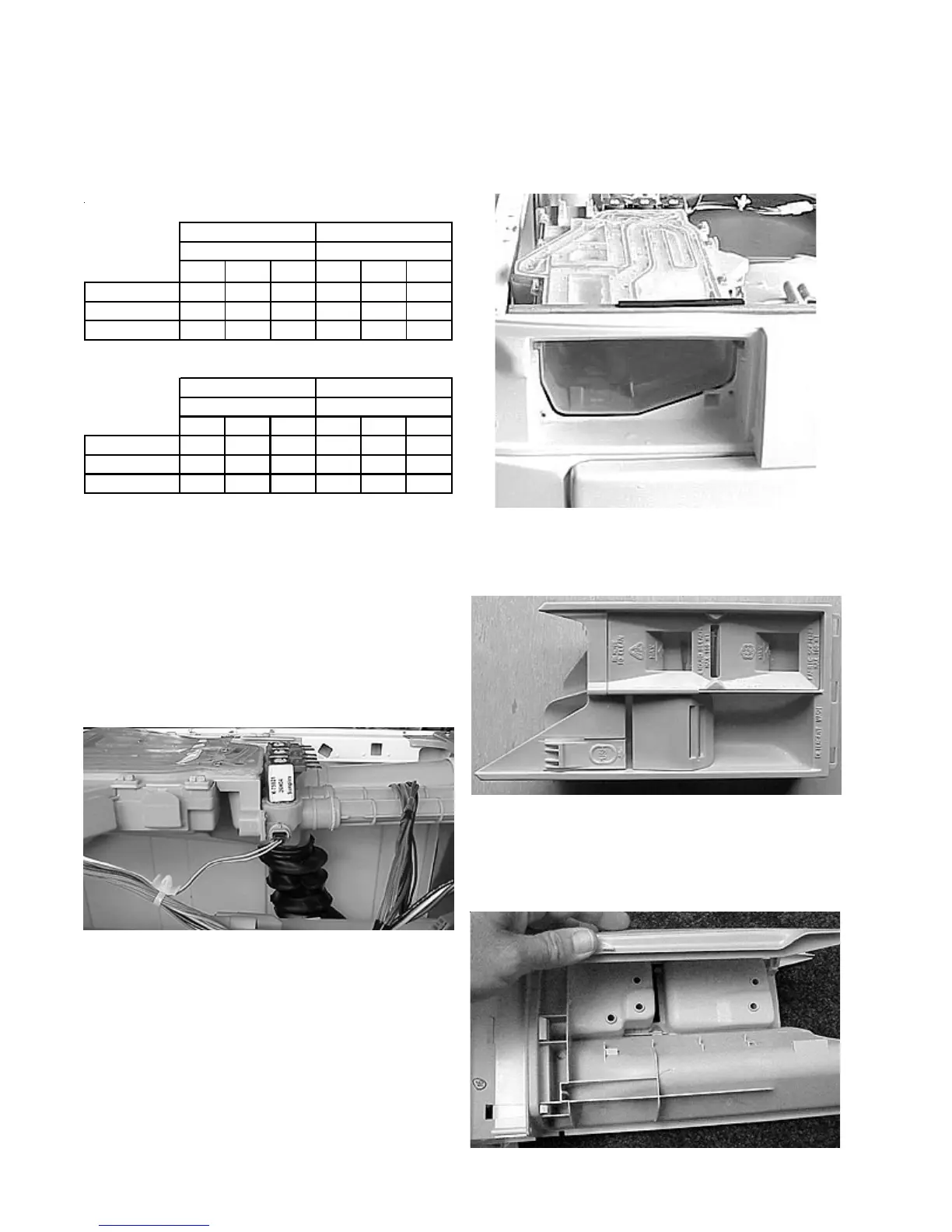

Auto Temp System: (Better Models)
The auto temp system controls the minimum temperature
of the cold water setting (approximately 65° F) and
maximum temperature of the warm and hot water setting
(approximately 90° F and 130° F). Auto temp system is
made up of the control board and a negative temperature
coefficient sensor mounted in the water inlet valve
assembly.
When warm or hot temperature is selected in the wash
cycle, the control board connects the hot water solenoid
to neutral and cycles the center cold water solenoid off
and on to regulated the temperature. When cold tem-
perature is selected, the control board connects the center
cold water solenoid to neutral and cycles the hot water
solenoid off and on to regulated the temperature. When
a Warm rinse is selected for the final rinse, the control
connects the outside cold solenoid to neutral and cycles
the hot solenoid.
Automatic Dispenser:
The automatic dispenser for detergent, liquid bleach and
fabric softener system is made up of the dispenser cavity
and a removable drawer with three cavities, one for
detergent, one for bleach and one for fabric softener.
A plastic conveyer is snapped to the bottom of the drawer
to direct the outputs, from the bleach and softener
chambers, to the dispenser housing outlet channel. This
prevents the mixtures from coming out the front of the
drawer.
Hot Wash Bleach Hot Wash Bleach
Wash
X
X
X
X
X
Rinse
(
s
)
X
X
X
X
X
Final Rinse
X
X
X
X
Hot Wash Bleach Hot Wash Bleach
Wash
X
X
X
X
X
Rinse
(
s
)
X
X
X
X
X
Final Rinse
X
X
X
X
Temperature Setting
Solenoid Solenoid
Solenoid Solenoid
HOT/COLD WARM/COLD
COLD/COLDWARM/WARM
Temperature Setting
