9
Resistance Ω
Electrical component @ 77° F (25°C)
Dispenser valve solenoids 800 ± 7%
Door lock solenoid 1325 ± 10%
Pump motor 12 ± 7%
NTC Thermistor 50K ± 2%
M1 TO M2 5.3 ± 7%
M2 TO M3 5.3 ± 7%
M1 TO M3 5.3 ± 7%
M4 TO M5 118 ± 7%

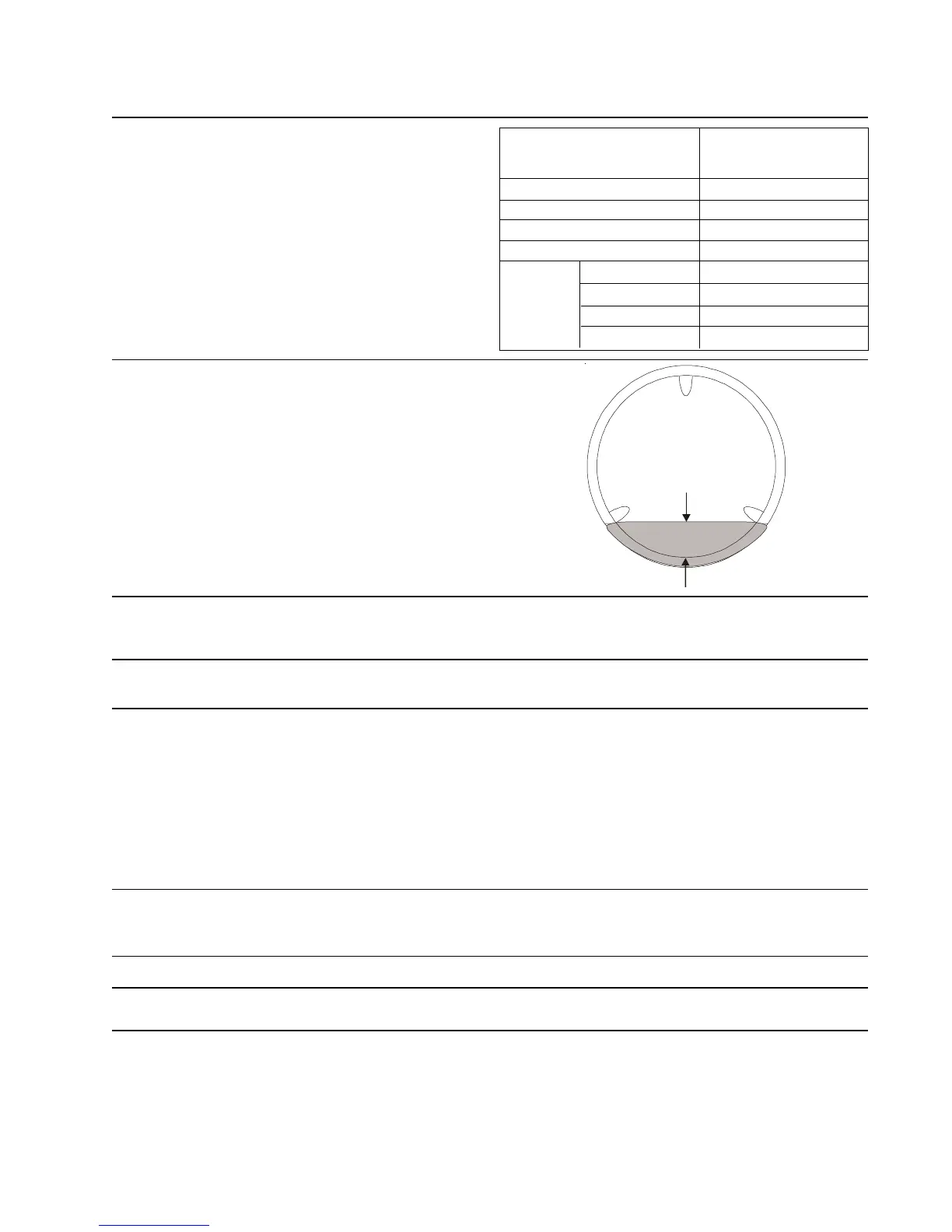

QUICK REFERENCE SHEET
Component resistance chart.
Good Models
Water fill height 3 ± .5 “
No load, start position of permanent press cycle.
Better Models
Water fill height dependent upon selected cycle.
Electrical requirements.
Incoming water pressure.
Drain requirements.
Motor.
Circuit - Individual, properly polarized and grounded 15
amp. branch circuit fused with 15 amp. time delay fuse
or circuit breaker.
30 and 120 pounds per square inch (maximum
unbalance pressure, hot vs. cold, 10 psi.)
Drain capable of eliminating 17 gals (64.3 L) per minute.
A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.
The standpipe height above the floor should be:
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm)
Motor
No load agitate wattage - Max 150
No load spin wattage - Max 550
Tub Pulley to Motor Pulley Ratio. 16 TO 1
Tub Capacity. 3.0 cu. ft.
Automatic Temperature Control Specifications. (Better Models).
Regulated hot wash temperature 130° ± 7° F
Regulated warm wash and rinse temperature 90° ± 7° F
Regulated cold wash and rinse temperature 65° ± 7° F
