Electrolux GOOD - Jacks and Plugs

63
Speed control board circuits:
J1 Line to neutral voltage from control
board.
J3 Code inputs from control board.
J5 Outputs to the motor windings and
inputs from the tacho generator.
Motor plug
Motor connections:
C5.1, C5.2& C5.3 Motor winding connections.
C5.4 & C5.5 Tacho generator connections.

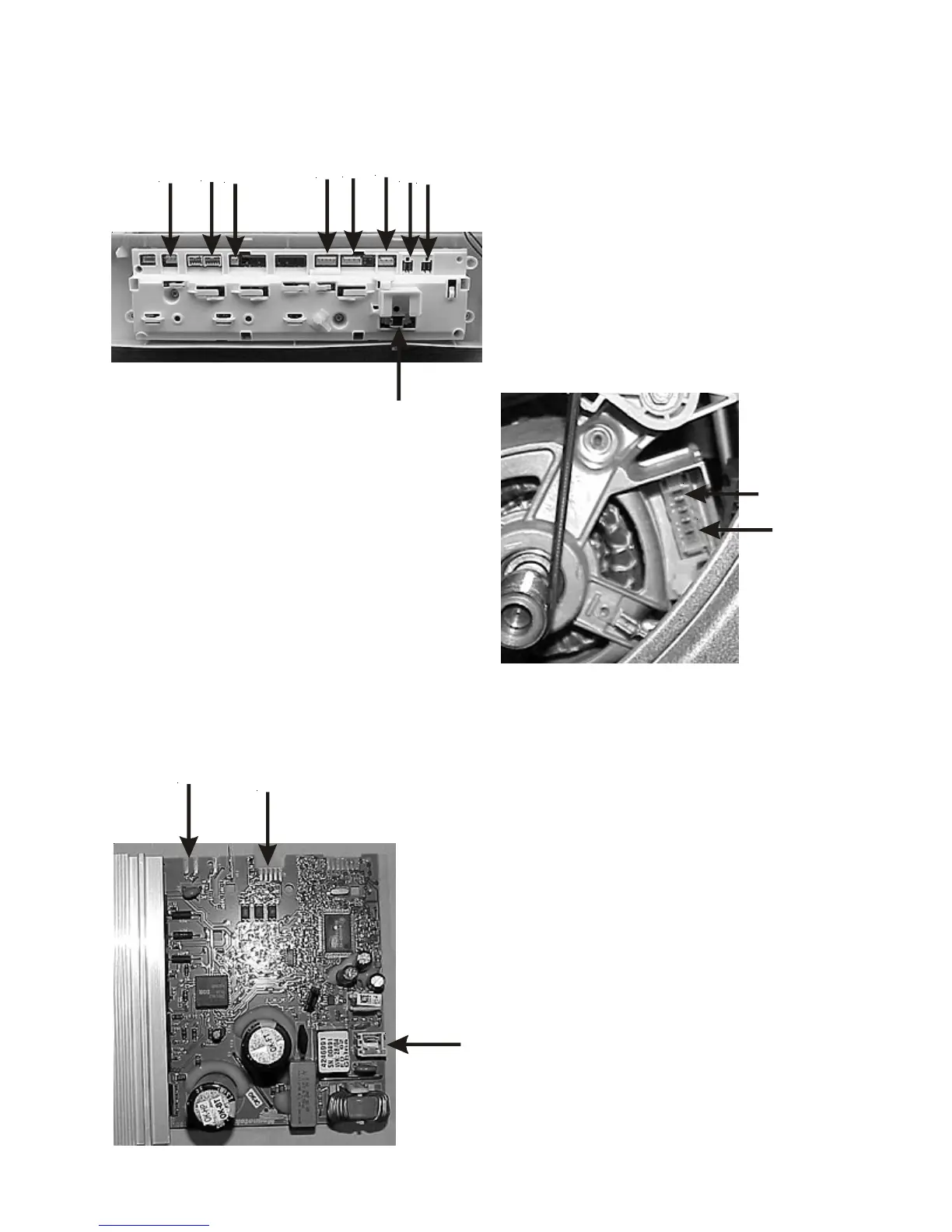

Jacks and plugs
Control panel
J3
J4 J5
J8
J6
J14
J1
J2
Control panel circuits:
J1 Power to the speed control board.
J2 & J3 Door switch assembly circuits.
J4 & J5 Water inlet and drain pump circuits.
J6 Codes to the speed control board.
J7 Thermal sensor circuit. (Some models)
J8 Reed switch circuit.
J14 Incoming power.
Speed control board
J7
J1
J3
J5
C5.1
C5.5
