80

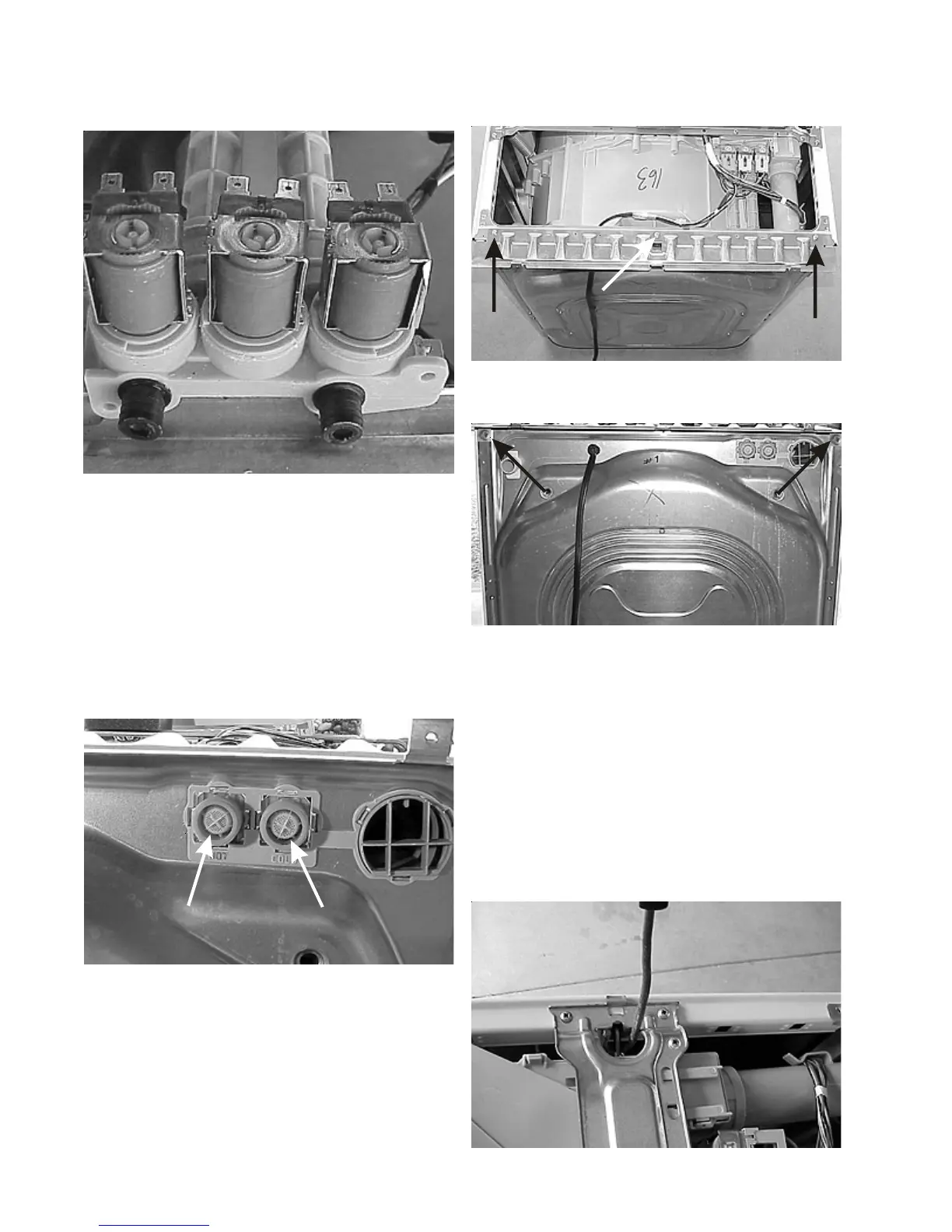

5. Pull back on the valve assembly to disengage it from
the detergent dispenser housing and lift it out.
Removing the water inlet screens:
Water inlet screens are located in the ends of the water
inlet tubs to filter the incoming water. These screen can
be removed for cleaning.
1. Disconnect the incoming water hoses.
2. The screens have a X molded them. Using pliers
grab one of the legs of the X and pull the screen out.
Removing the top rear brace:
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. Remove the (3) screws from the top of the brace.
3. Remove the (2) screws from the rear of the brace.
4. Pull back to disengage the (2) tabs and lift the brace
off.
Removing the suspension springs:
1. Disconnect the washer from the electrical supply
and remove the top panel.
2. It is necessary to hook the top of the spring, raise it
about 1” to release the top hook from center brace
flange, then allow it to drop about 6” to relieve the
spring pressure and then unhook the other end of the
spring from the tub.
