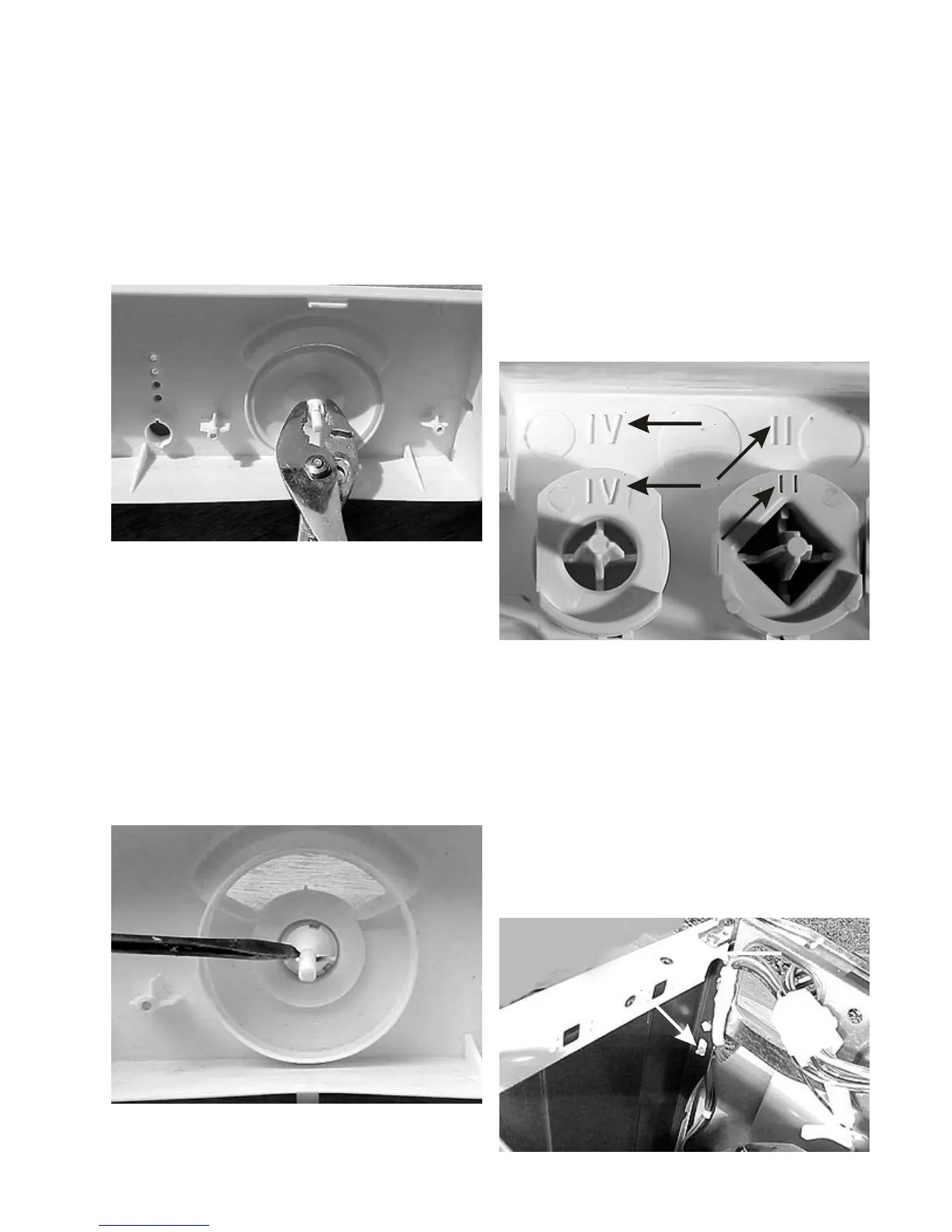

Removing the selector dial:
(Better Models)
1. Disconnect the washer from the electrical supply
and remove the electronic control.
2. Grab the cone of the dial around the knob shaft with
a pair of pliers. Hold the knob and pull with the pliers
while slightly twist them back and forth.
Note: Do not use a screwdriver to pry the dial off
because it will scratch the dial.
Removing the selector knob:
(Better Models)
1. Disconnect the washer from the electrical supply,
remove the electronic control and the cycle selector
dial.
2. Release the shaft lock by expanding one of the side
slots with a screwdriver and pull on the knob.
Removing the programing buttons and
springs:
1. Disconnect the washer from the electrical supply
and remove the electronic control.
2. Lift the buttons and springs out of the console.
3. The buttons are not all the same. Each button has
a Roman numeral stamped into it. The console has
Roman numeral above the button slot. Match the
number on to button to the number on the slot.
Removing the front panel:
1. Disconnect the washer from the electrical supply,
release the console and remove the front access
panel.
2. Release the bellows from the front panel and remove
the (2) screws holding the door safety switch
assembly to the front panel.
3 Release the plastic rivet wire tie holding the door
switch harness to the front panel.
