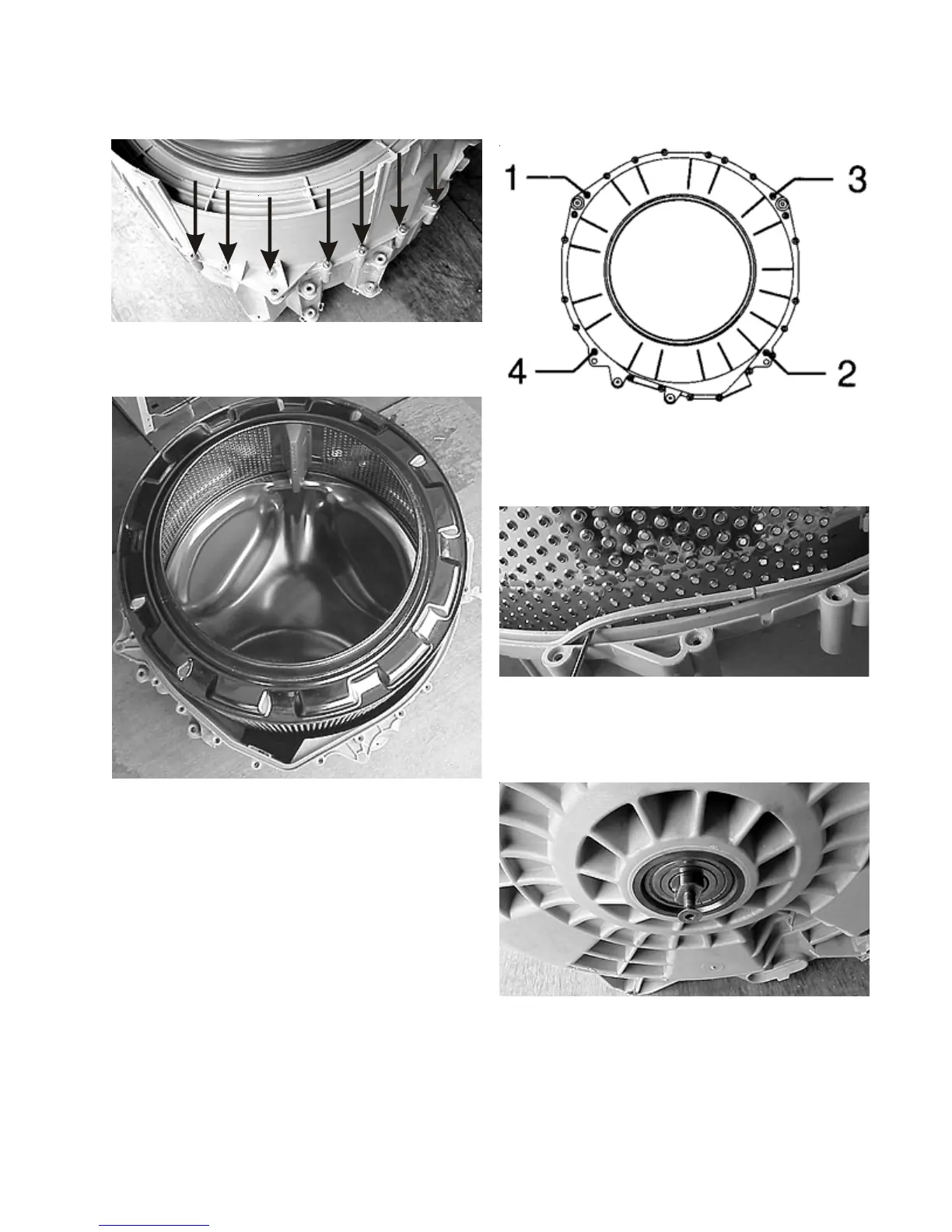

12. Turn the tub over and remove the (23) screws holding
the two halves of the tub together.
13. Lift the front half of the tub off the assembly.
CAUTION: Use caution in handling the spin
basket. The outer surface is very
sharp!
14. Reverse procedure to reassemble using illustration
below to show outer tub screw tightening sequence.
15. The seal between the (2) tub halves is placed in the
groove of the rear half and can be lifted out.
16. To remove the spin basket, set the back half of the
outer tub on it’s side, and reinstall the screw that
secured the large pulley to the shaft. Tap the inner
tub out with a rubber hammer.
