67

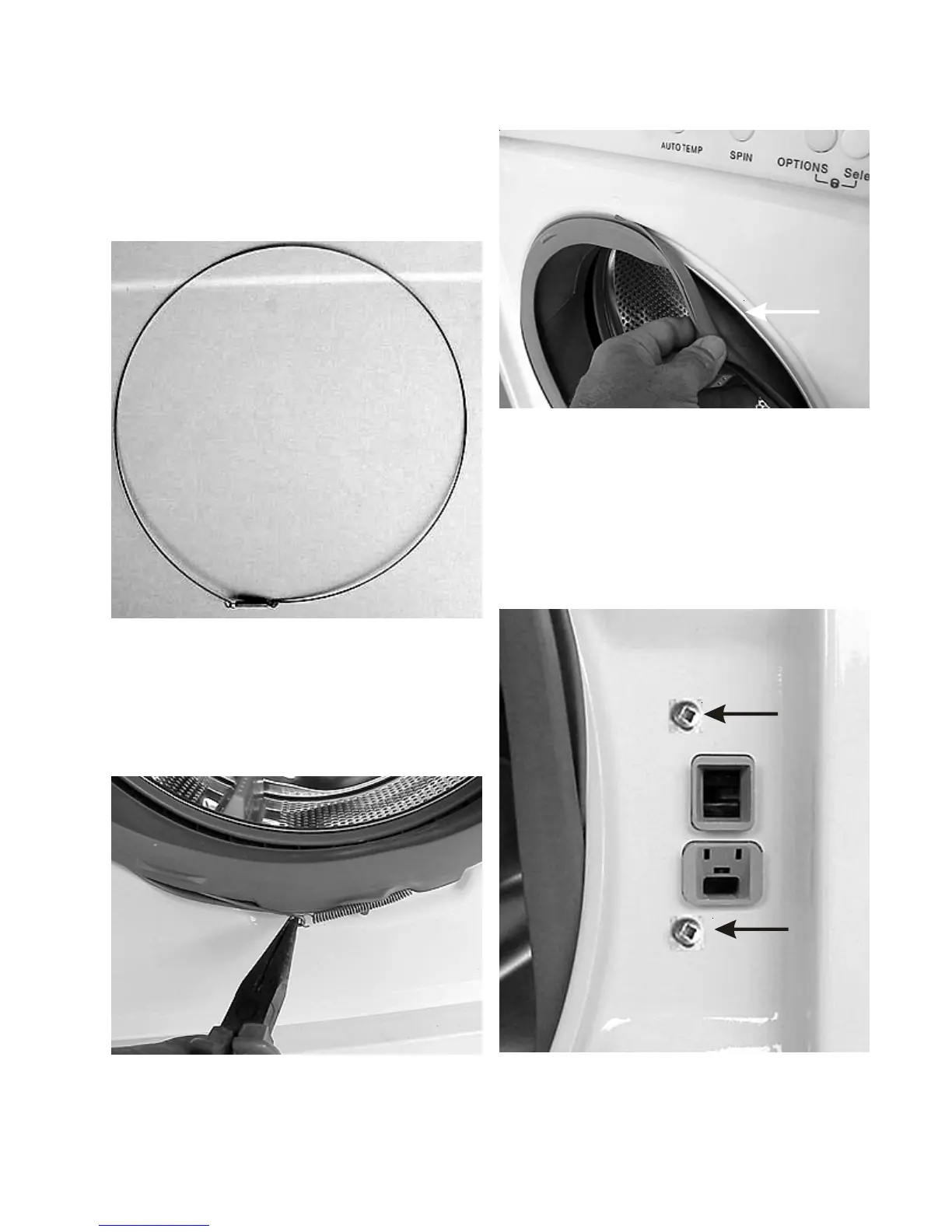

Releasing the bellows (door boot) from the
front panel:
The front of the bellows is installed over the lip of the
door opening in the front panel and held in place by
a spring loaded wire loop.
1. Open the loading door.
2. Using needle nose pliers, start where the spring and
wire are connected at the bottom of the bellows and
pull the wire out of the groove of the bellows.
3. Pull the bellows off of the lip of the front panel.
Removing the door safety switch:
1. Disconnect the washer from the electrical supply.
2. Release the bellows from the front panel.
3. Remove the (2) screw holding the switch assembly
to the front panel.
