77

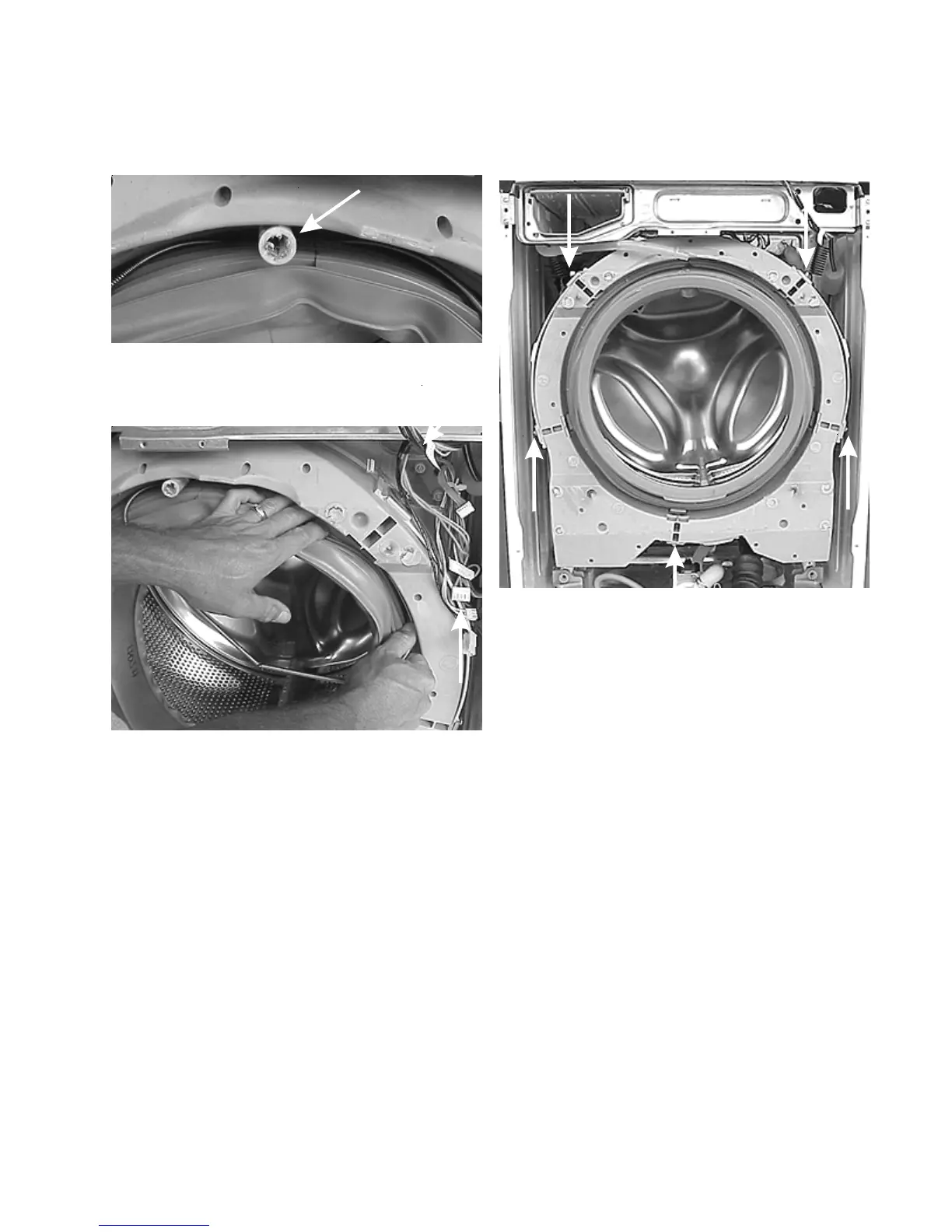

2. Using a 7/16” socket, remove the (5) bolts holding
the weight ring to the outer tub and slide the weight
ring off the outer tub front.
The water inlet and overflow/vent tube
grommet:
Note: The water inlet and overflow/vent tube
grommets are connected for ease of
installing during manufacturing and can
be separated by cutting the thin wall joint
section for removal in the field.
Removing the water inlet grommet:
1. Disconnect the washer from the electrical supply,
remove the top panel and cut the thin wall joint
section between the water inlet and the overflow/vent
tube grommet .
7. Place the spring in the groove at the top of the bellows
and wedge a round object, about 3/4 “ in diameter,
between the weight ring and the bellows to hold the
spring in the groove.
8. Pull the spring with one hand while working it into
the grove with the other.
9. Remove the wedge, unfold the bellows, and insert
the advance rinsing technology hose .
Removing the weight ring:
1. Disconnect the washer from the electrical supply,
remove the front panel and disconnect the advance
rinsing technology hose from the bellows.
