86
4. Slide motor forward while supporting to remove.
5. Reverse procedure to reinstall, making sure that belt
tracks in the center of the large pulley. Adjust by
moving belt on motor pulley if required.
Removing the speed control board
assembly:
1. Disconnect the washer from the electrical supply
and remove the front and rear access panels.
2. Unplug the (2) terminal plug from the lower front.

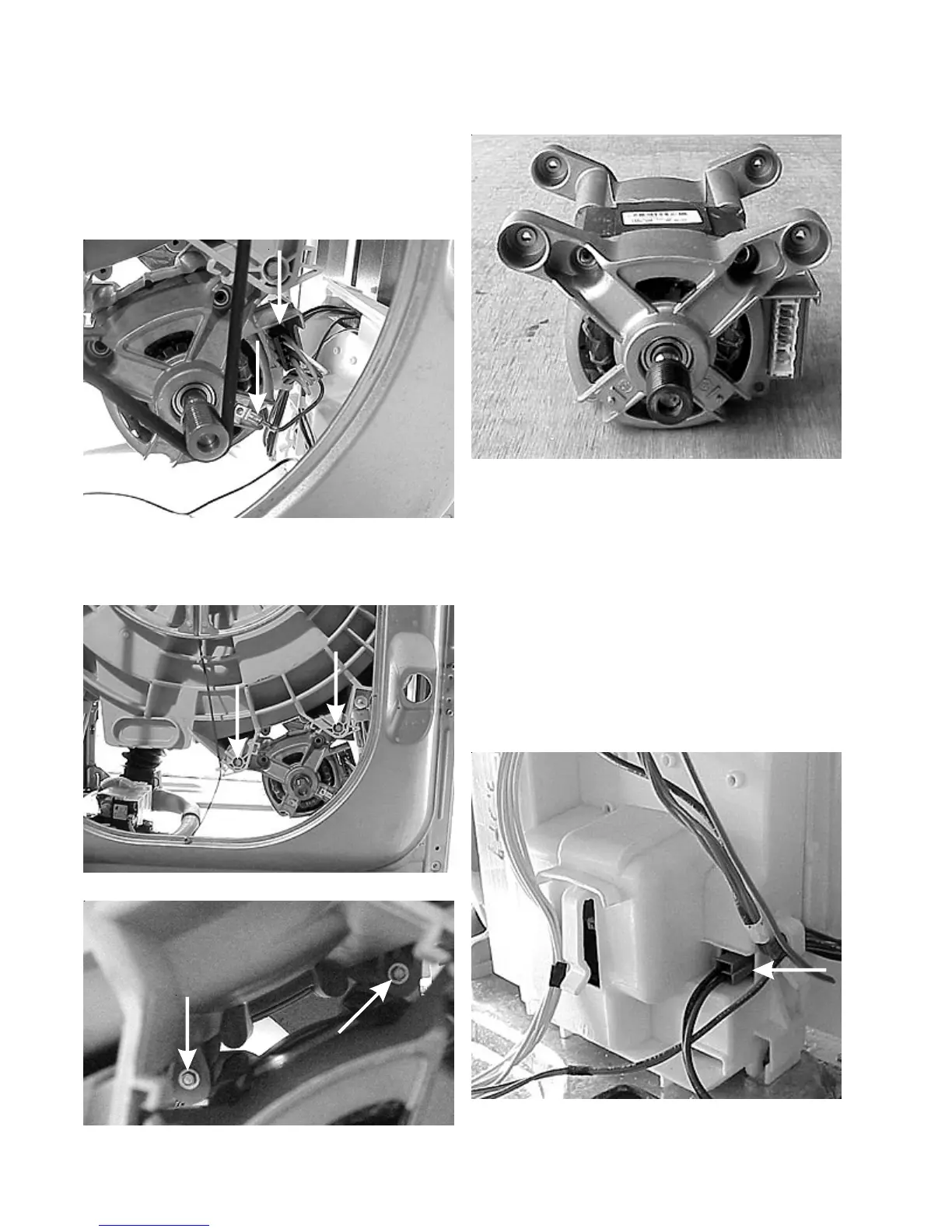

Removing the drive motor:
1. Disconnect the washer from the electrical supply
and remove the rear access panel and the belt.
2. Unplug the electrical plug and the ground wire from
the motor.
3. Using a 5/16” socket remove the (4) bolts, two in the
front and two in the rear, that hold the motor to the
outer tub.
