Electrolux T5675 N2 - Page 27

Service Manual
27

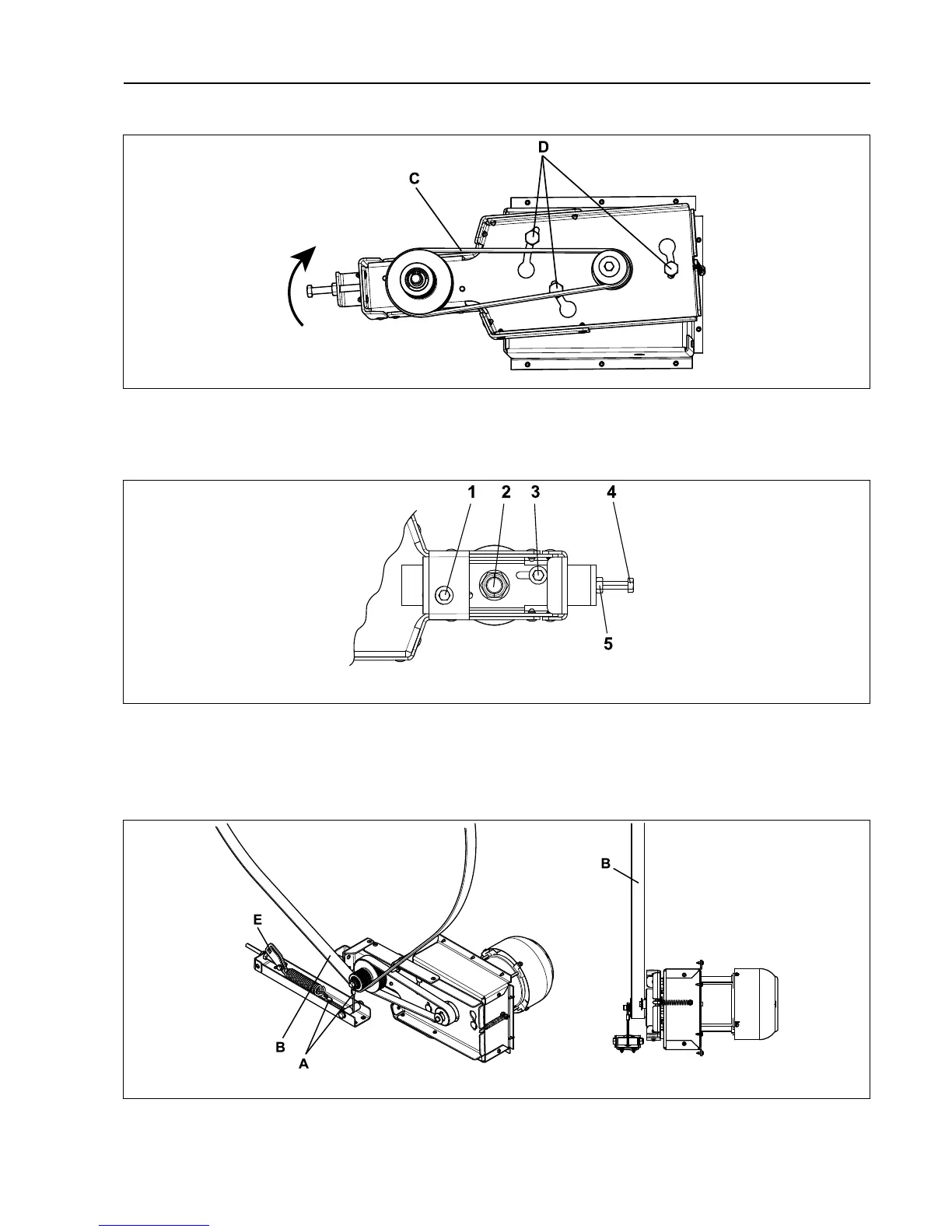

Fasten the tension arm on the motor panel in the holes and turn it clockwise until it is in position.
fig.7224A
Put the belt in position (C) and tighten the screws (1, 2, 3, 4 starting with 4).
Check the belt tension with a frequency meater or similar. The frequency shall be 80 Hz ± 5. Adjust if necessary.
Check that 5 is tightened.
fig.49077800A
Remount the motor module in the machine.
Fasten the belt (B) and the wire (A). Make sure the belt is in position.
Tighten the belt tensioner with a torque wrench by pulling the tension plate (E) clockwise until it is in position.
Check the belt tension with a frequency meater or similar. The frequency shall be 75 Hz ± 5. Adjust if necessary.
fig.7220D
