6. Main parts
To fully understand the content of this operator’s manual, you need to be fully conversant
with the terminology used for[www] the descriptions. In this chapter you can find a set of
parts identified by name. It is a good idea to take time to study the machine beforehand for an
improved understanding of the descriptions provided in this user manual.

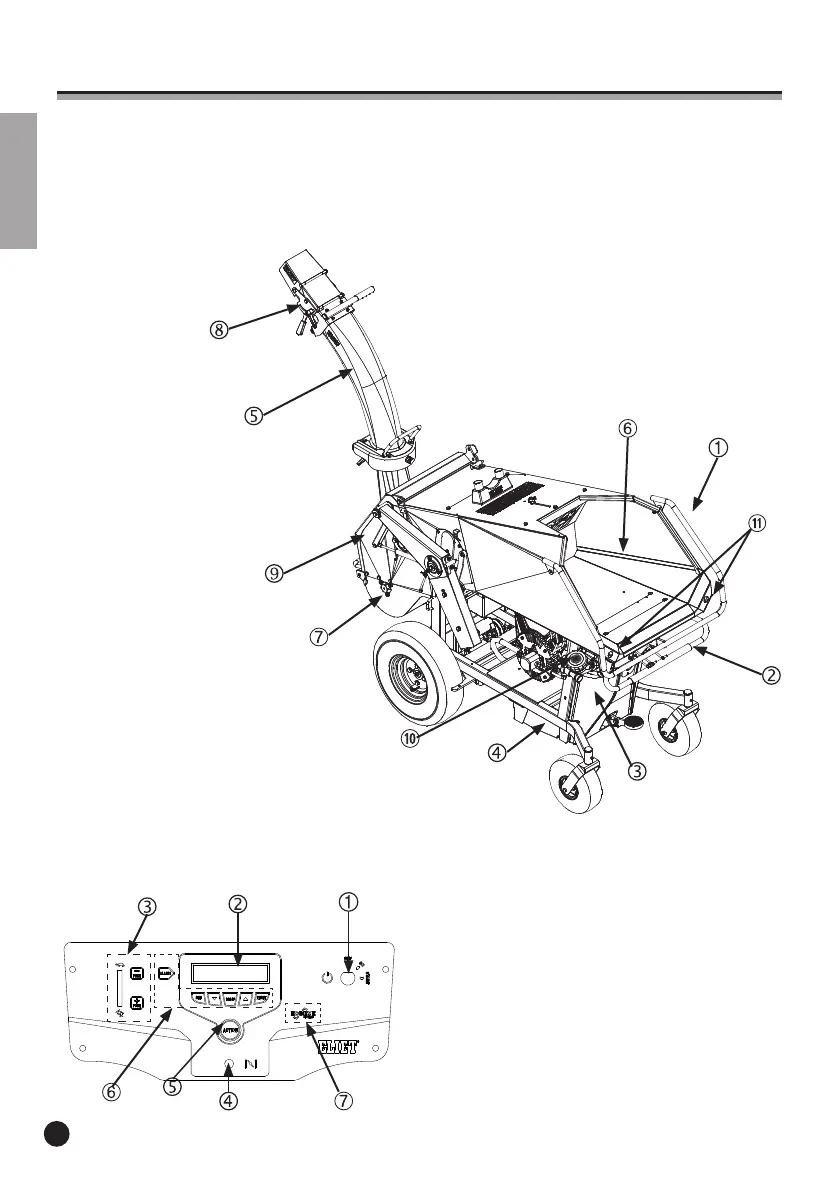

1) Safety-stop-bracket
2) Wheel drive control / steering wheel
3) Petrol tank
4) Hydraulic oil tank
5) Blow chute
6) Loading hopper
7) Axelero
TM
8) Deflector cap
9) Maintenance hatch
10) Fuel tank filler cap
11) Controls feed roller
1) Ignition Key
2) LCD controle screen
3) Throttle
4) Choke
5) Action button
6) Controlbuttons Display
7) Eco Eye signage (optional)
