4/6 kg
1 cm
60
English
Caution:
• Incorrectly or poorly installed blades may lead to the machine breaking down
or being damaged. This will also put operators and bystanders in danger.
• Not retightening the blades after the first 5 working hours after reversing
or changing the blades may lead to the machine breaking down or being da-
maged.
• The damage and consequential damage that may arise from poor maintenance
of the blades will invalidate the warranty.

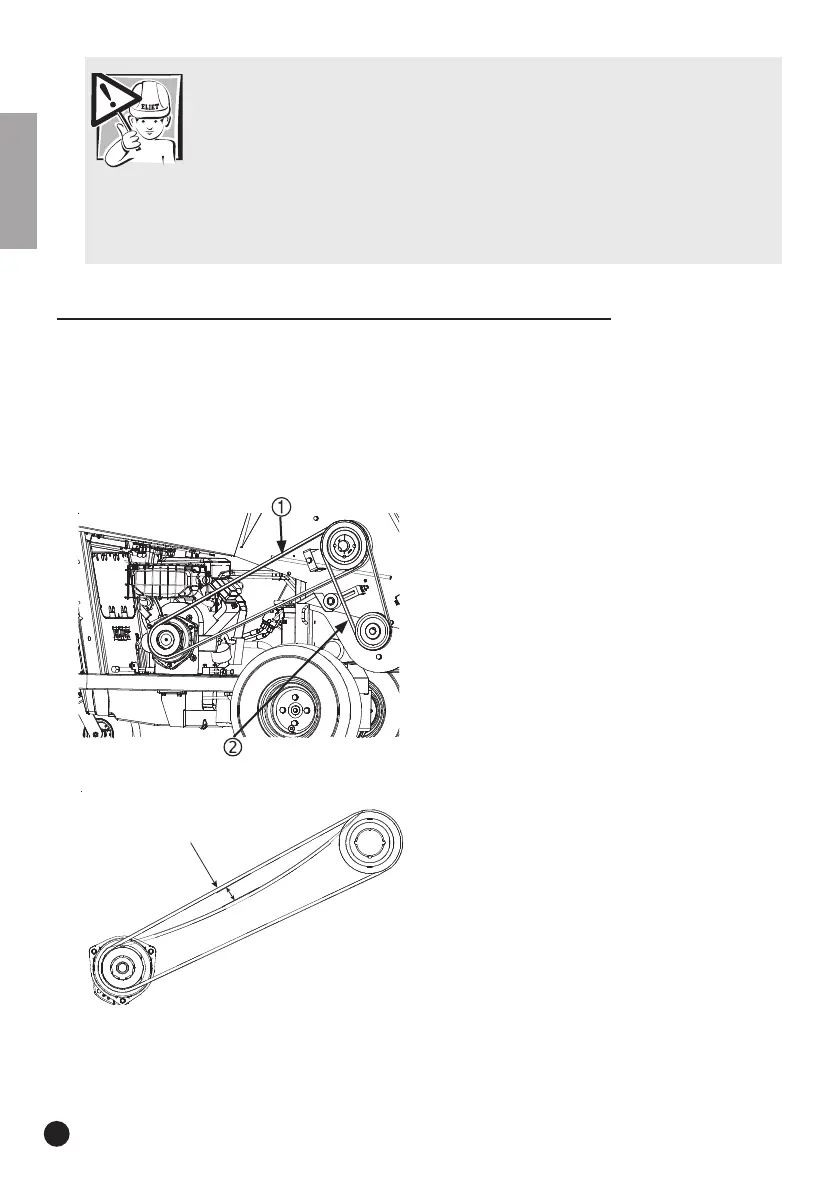

11.4.4 Checking the drive belt for correct tension (Chk Belt Tens.)
There are two belts on the Super Prof, both are hidden behind the belt protection guards for
safety. In order to check the tension on the belts, you must do the following:
Belt 1: Engine - Mesas
Belt 2 : Blade axle - Axelero
TM
Belt 1: Engine - Blade axle
•
Remove the belt guard
(read “11.2.1 Removing the belt guard” on page
41).
• Place an 6 kg load on the V-belt midway
between the two pulleys.
• If this produces a 1 cm deflection, then the belt
tension is correct.
Belt 2: Mesas - Axelero
TM
• Place an 4 kg load on the V-belt midway
between the two pulleys.
• If this produces a 1 cm deflection, then the belt
tension is correct.
