Chapter 7 Quick Start
7.1 Installation
7.1.1 Robot installation
Take the ELITE robot out of the packing box and install it on the base. Please refer to Chapter 6
Robot Installation for the specific installation instructions.
【NOTES】
1. The control box should be placed on the ground horizontally. A 50 mm clearance should be
reserved on each side of the control box to ensure smooth air circulation.
2. The teach pendant can be hung on the control box. Make sure that the cable will not cause
tripping hazard.
【DANGER】
1. Make sure the control box, the teach pendant and the cables do not come into contact with
liquids. The wet control box may cause casualties.
2. The control box and the teach pendant should not be exposed to the dust or the humid place
exceeding the level of IP54. Pay close attention to the environment of conductive dust.
7.1.2 Cable Connection
There are two sockets at the bottom of the control box, and the corresponding cable should be
inserted into the socket before use.

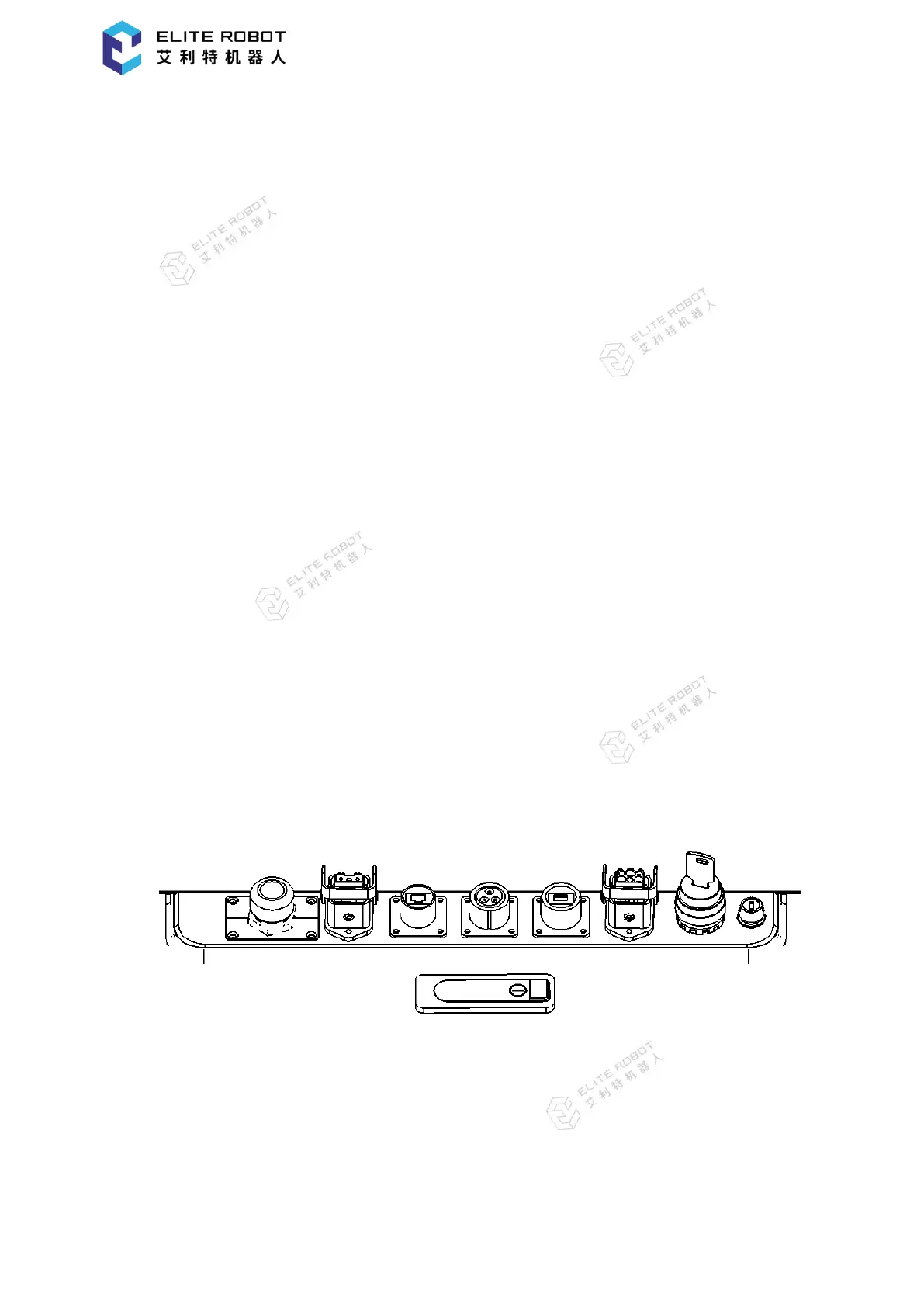

Figure 7-1 Plugs at the bottom of the control box
7.1.2.1 Connection of the robot arm to the control box
There is a heavy-load rectangular plug at the end of the robot arm cable. Insert the heavy-load
