rectangular plug into the control box. Pay attention to the insertion direction, and lock the connector
after tight insertion, as shown in the following figure.
Figure 7-2 Connection of the robot cable to the control box
7.1.2.2 Connection of the control box to the mains supply

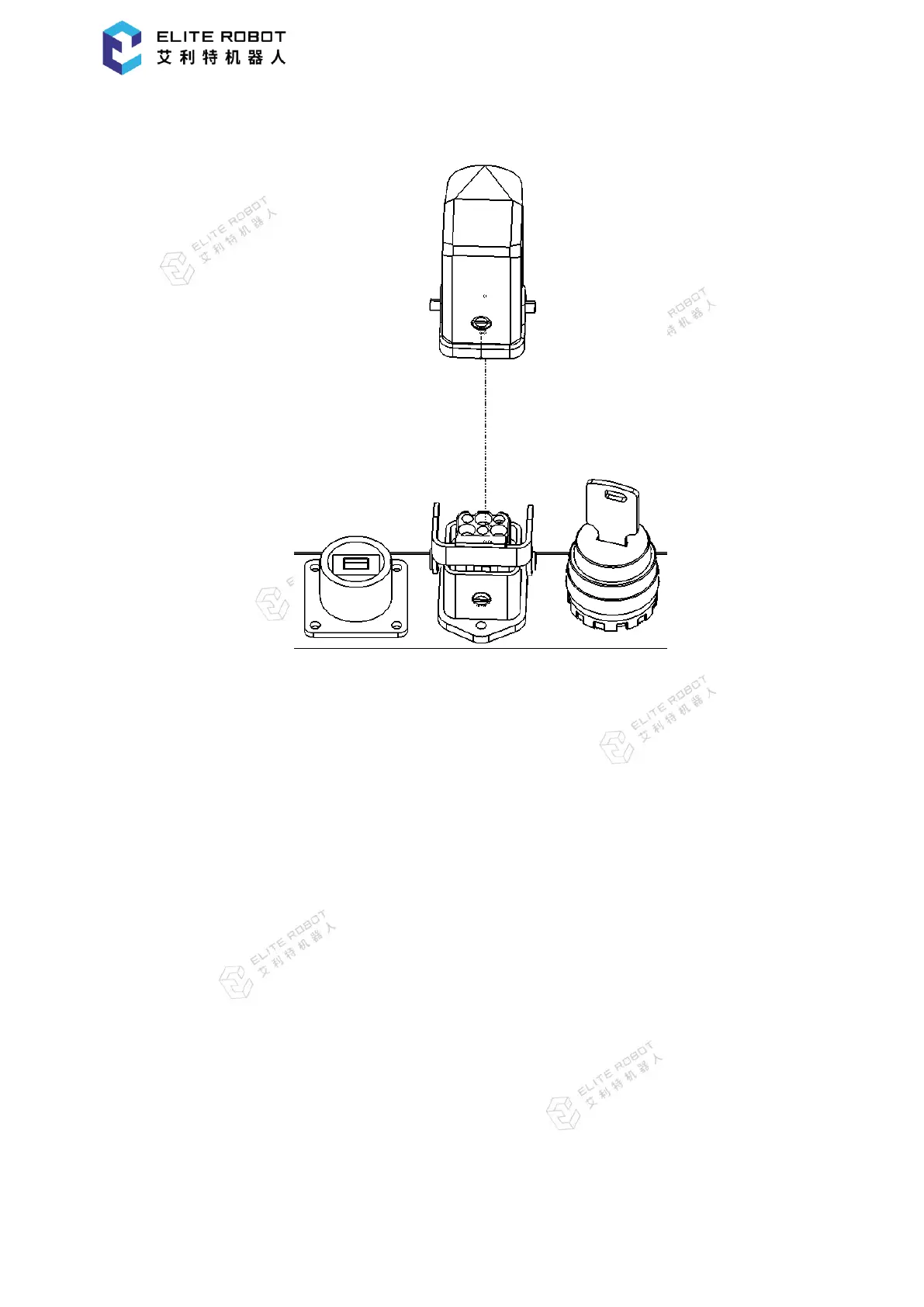

There is a heavy-load rectangular plug at the end of the mains cable of the control box. Connect
the local dedicated mains cable to the heavy-load rectangular plug. Pay attention to the insertion
direction, and lock the connector after tight insertion, as shown in the following figure.
