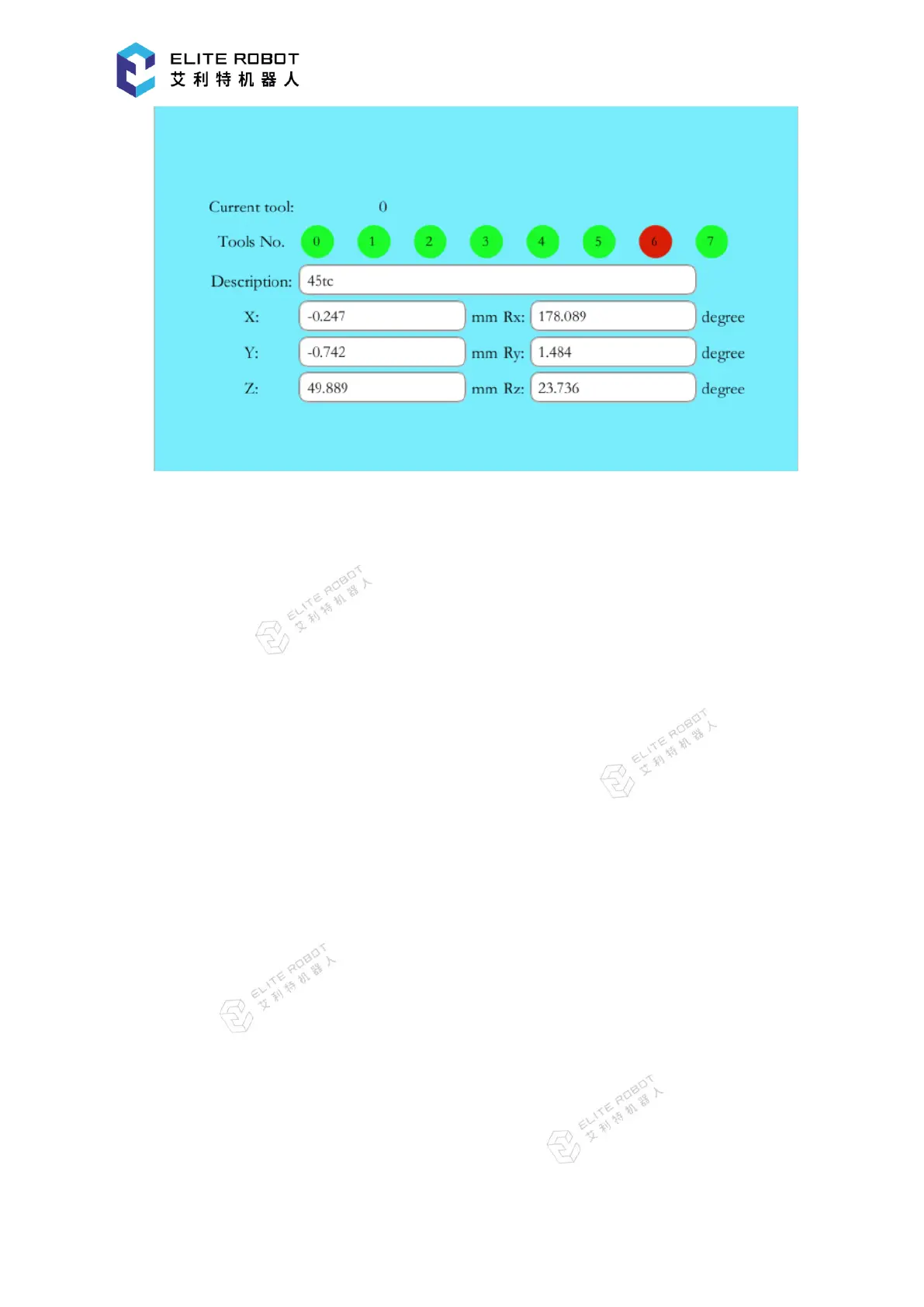

Tool coordinate setting
9.1.3 Monitoring Area
The monitoring area is mainly used to display the robot coordinates, variable values, IO port
status, motor running status, etc. All the options under the “Monitor” menu are displayed in the
monitoring area, as shown in the following figure (the half-width display and full-frame display
of the monitoring area).
