Elma T310 - 4 Description of Operating Elements

Description of operating elements
8
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG

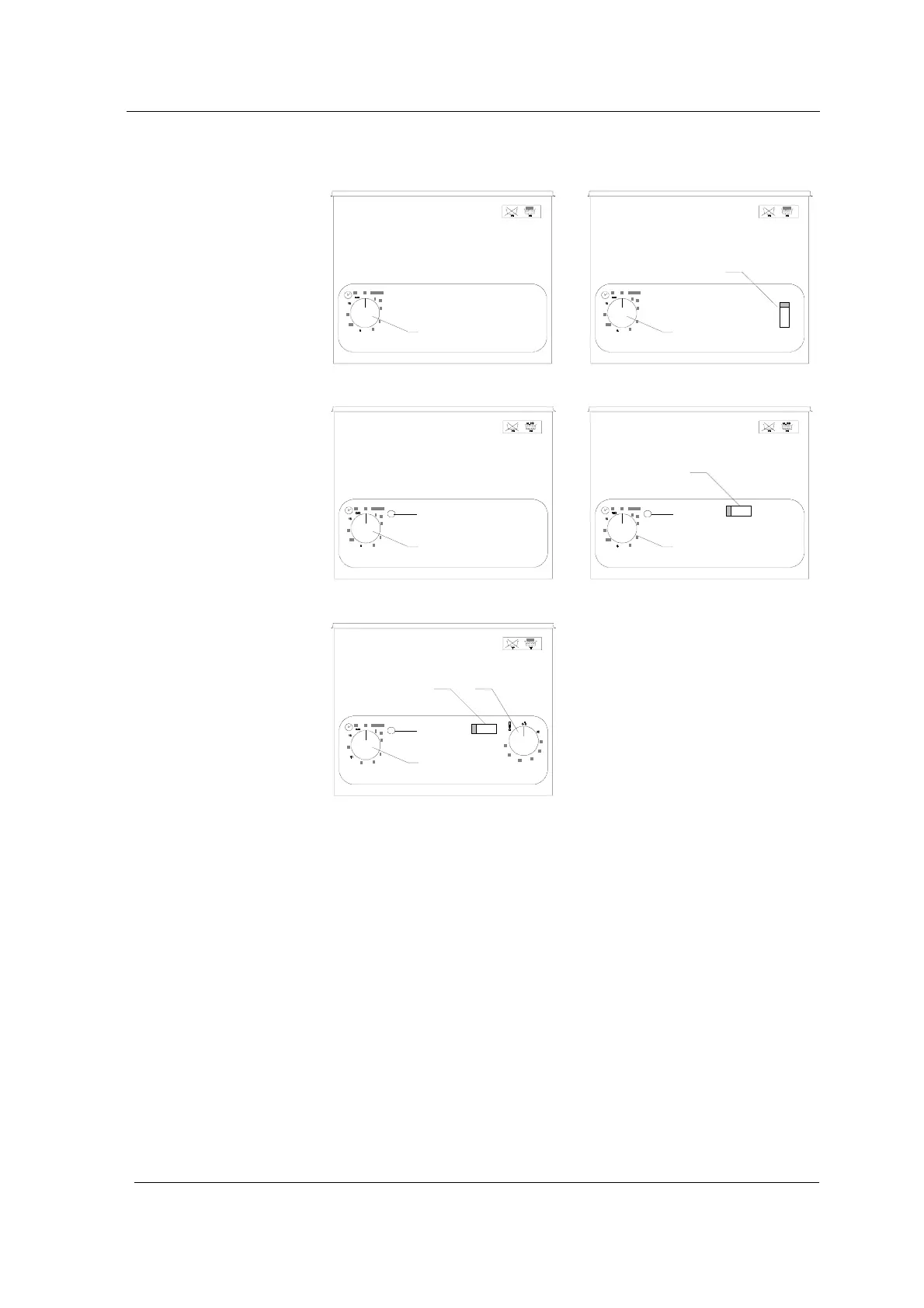

4 Description of operating elements
1 - Zeitschaltuhr
2 - Heizungsschalter
3 - Signalleuchte US
4 - Thermostat
Legende:
Modell: T310 Modell: T310/H
Modelle: T420, T460, TS540, T570, TP690
T700, T780, T890, LC30
Modelle: LC20/H, LC30/H, LC60/H, LC130/H
Modelle: T460/H, T470/H, T570/H, T660/H,
T700/H, T780/H, T820/H, T880/H, T890/H,
TP1000/H, T1040/H, T1060/H, T1200/H
T1700/H
1
3
1 1
3
2
heating
heating
1
2
2 4
heating
1
3
Datei:c:\daten\texte\techdok\...\bild001A.DRW
Timer for ultrasonic operation
Operating modes: 1 - 15 min for short-period operation
permanent operation ∞ (manual switch-off required).
Heating switch
On / Off switch for heating.
Pilot lamp ultrasound
Turns on when ultrasound is activated.
Thermostat
Stepless regulation of the heating temperature.
1
2
3
4
