13.3 Interference filter on T780 – T1040/H
The interference filter is arranged on a separate printed board.
Older units have no fuses. The interference filter coil can be
interrupted in case of a short circuit.
If the fuses are blown there is usually a short circuit in the
heating element.
In order to find the cause we recommend to interrupt the cables
of the heating and to test the unit again with new fuses.

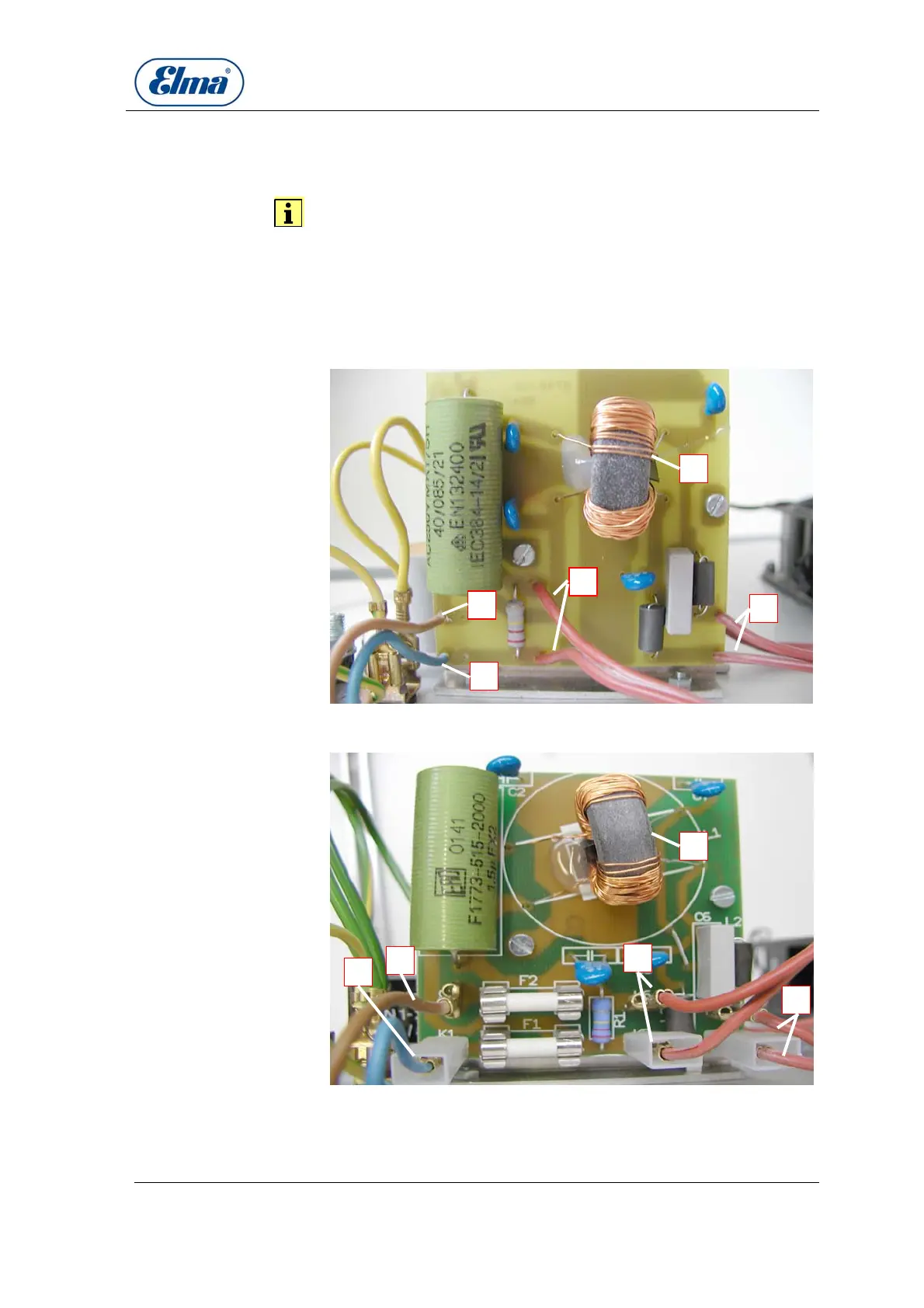

Illustration 13.3.1. Interference filter on units made before 2002
Illusration 13.3.2. Interference filter on units made since 2002
Interference filter on
old units
E
B
B
E
C
C
D
D
A
A
Interference filter on
new units
