Faulty operating and switch elements
26
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG

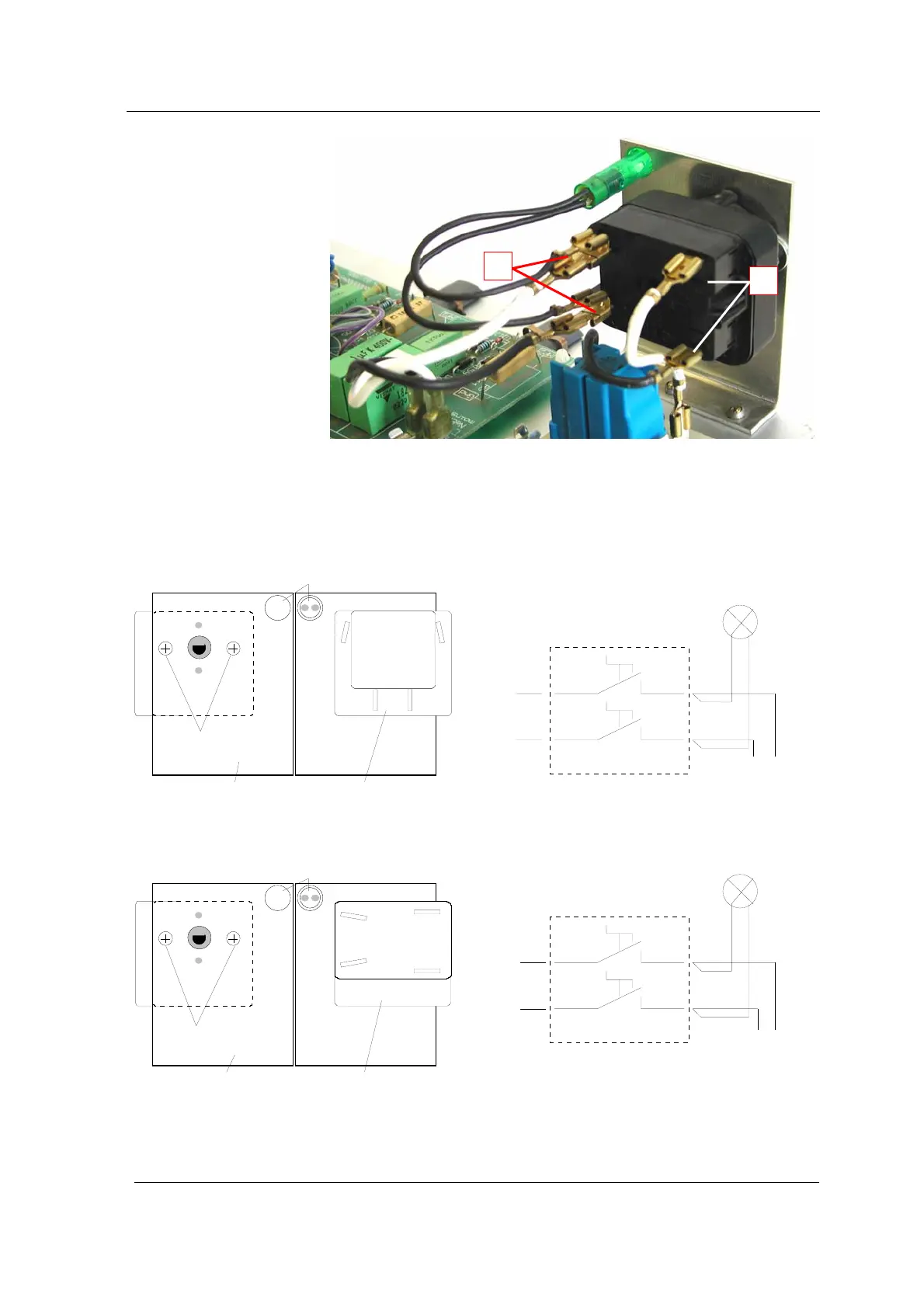

Illustration 8.2.1. Wiring of timer on models made since 1997
Cable from interference filter (polarization irrelevant).
Supply timer.
Output timer to voltage supply of printed board. Parallel
connected pilot lamp for ultrasound operation.
Datei:c.\daten\texte\techdok\...\BILD003.DRW
2
1
2A
1A
COUPATAN C10
1
21
2
Typ 600
Diehl
1
2
1
2
1
2
1A
2A
Netzeingang
Entstörung
Generator
Netzeingang
Entstörung
Generator
Signallampe
Signallampe
Haltewinkel
Haltewinkel
Zeitschaltuhr
Zeitschaltuhr
Halteschrauben
Halteschrauben
Signallampe
Signallampe
Bild 3
Zeitschaltuhr
Zeitschaltuhr
Illustration 8.2.2. top: timer type DIEHL in units made before 1997
bottom: timer type COUPATAN in units made since 1997, this timer is
delivered as spare part
A
B
B
