How to replace the heating
© Elma GmbH & Co KG SM/Transsonic_LC/1104/D
43
Insert the heating
vertically

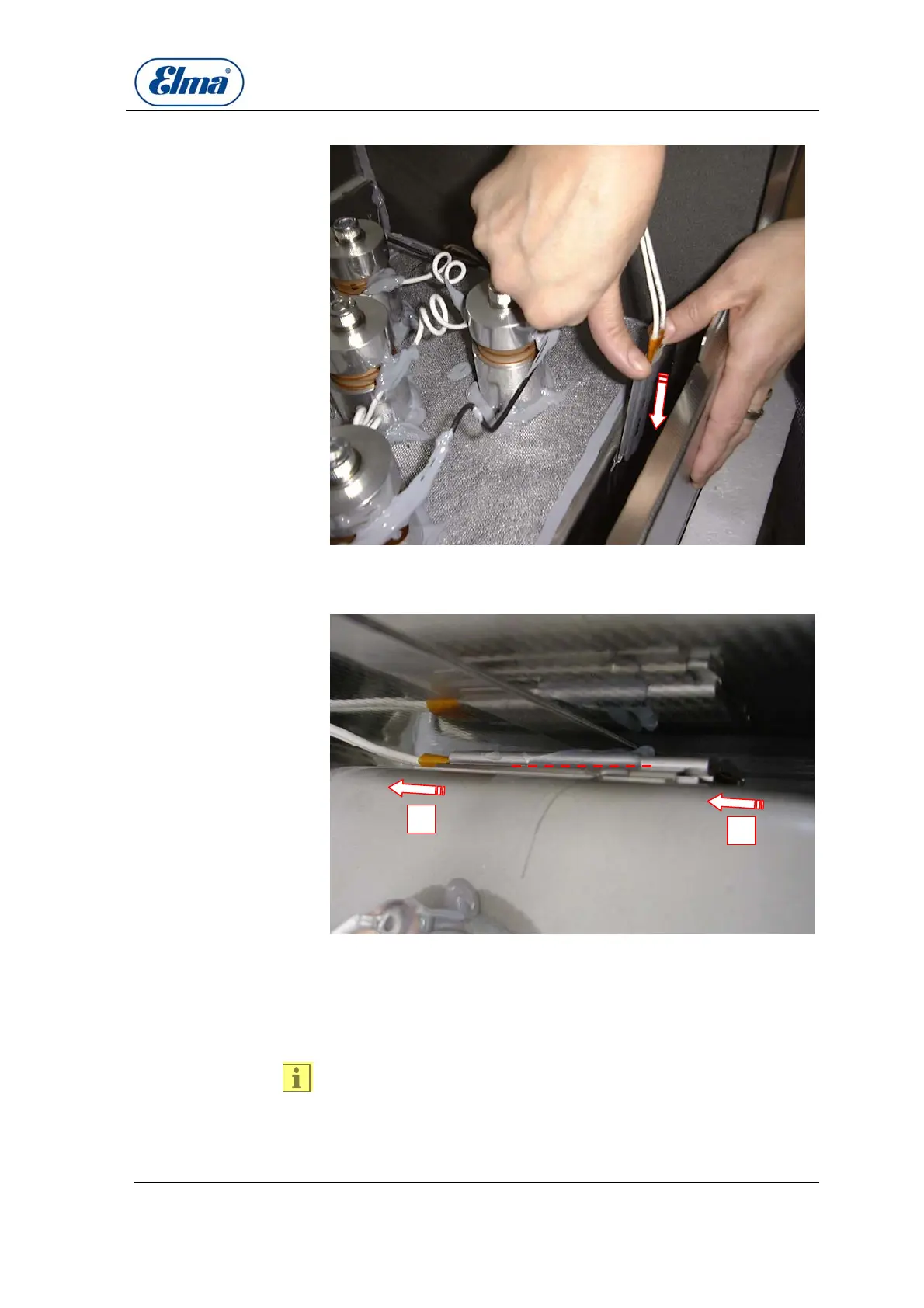

Illustation 9.4. Mounted tank with vertically fixed heating elements.
Push the new heating element(s) into the guiding rails into the marked
direction.
Illustration 9.5. Mounted tank with horizontally fixed heating element.
Red dotted line: Cut silicone fixation here to remove the heating
element.
Push the heating element toward its connected side (A) out of
the guiding rails.
The new heating element can be pushed in more easily if the
edges of the aluminum profile are rounded off with a file.
Put the new heating element into the guiding rails in the marked
direction (B). Carefully push it into the guiding rails without
jamming. Then secure against displacement with silicone.
Insert the heating
horizontally
A
B
B
