How to replace the ball valve
© Elma GmbH & Co KG SM/Transsonic_LC/1104/D
57
Mounting of the 3/8“
drain duct

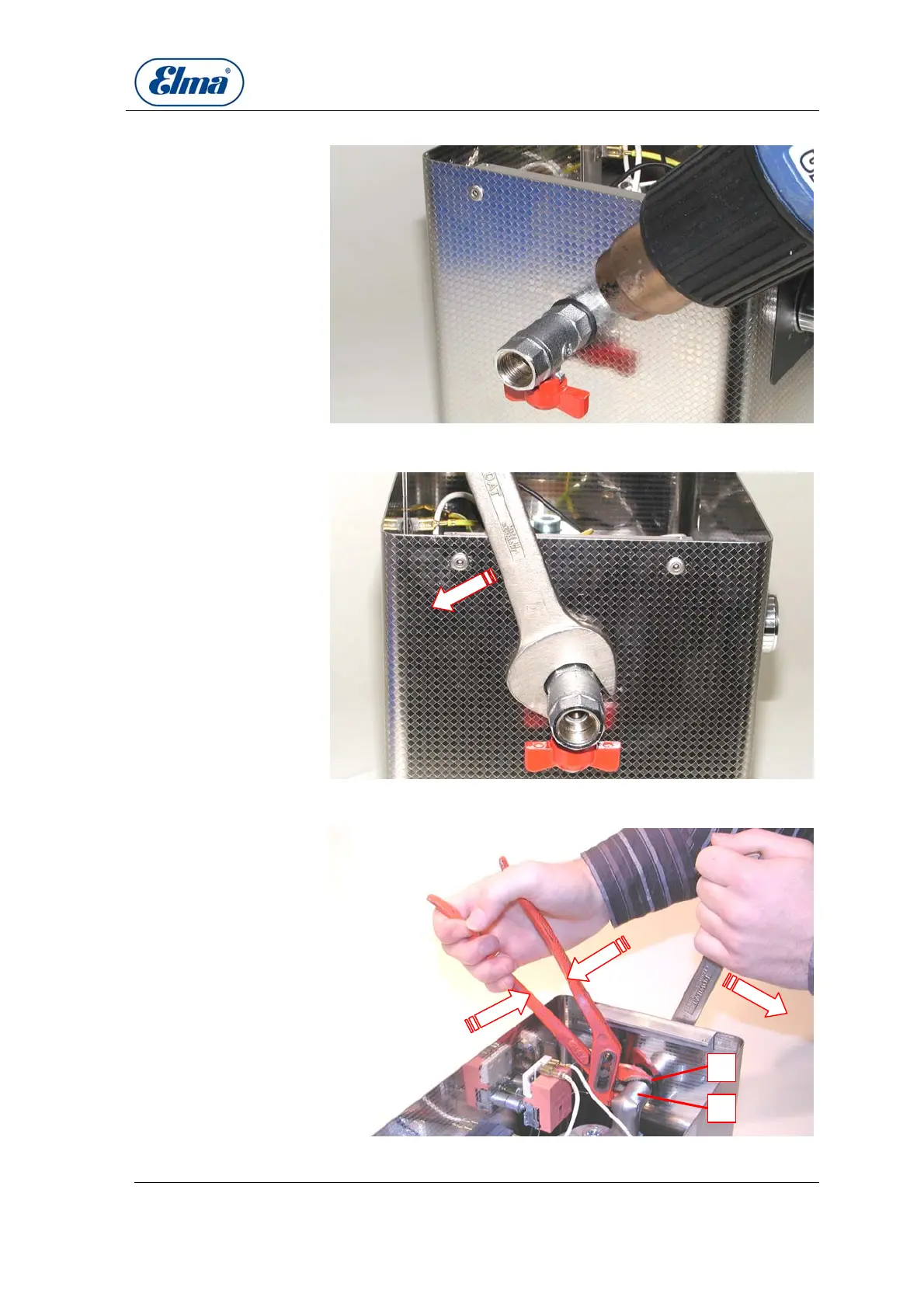

Illustration 12.1.1. 3/8“ drain duct: Heat the Loctite thread sealing with
a hot air fan
Illustration 12.1.2. 3/8“ drain duct: Open the ball valve with a 19 mm
fork wrench anti-clockwise
Illustration 12.1.3. 3/8“ drain duct: Secure the duct nipple (A) with a
pipe wrench to avoid an opening of the sealing in the duct angle (B).
A
B
