How to replace the ultrasonic generator
66
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG

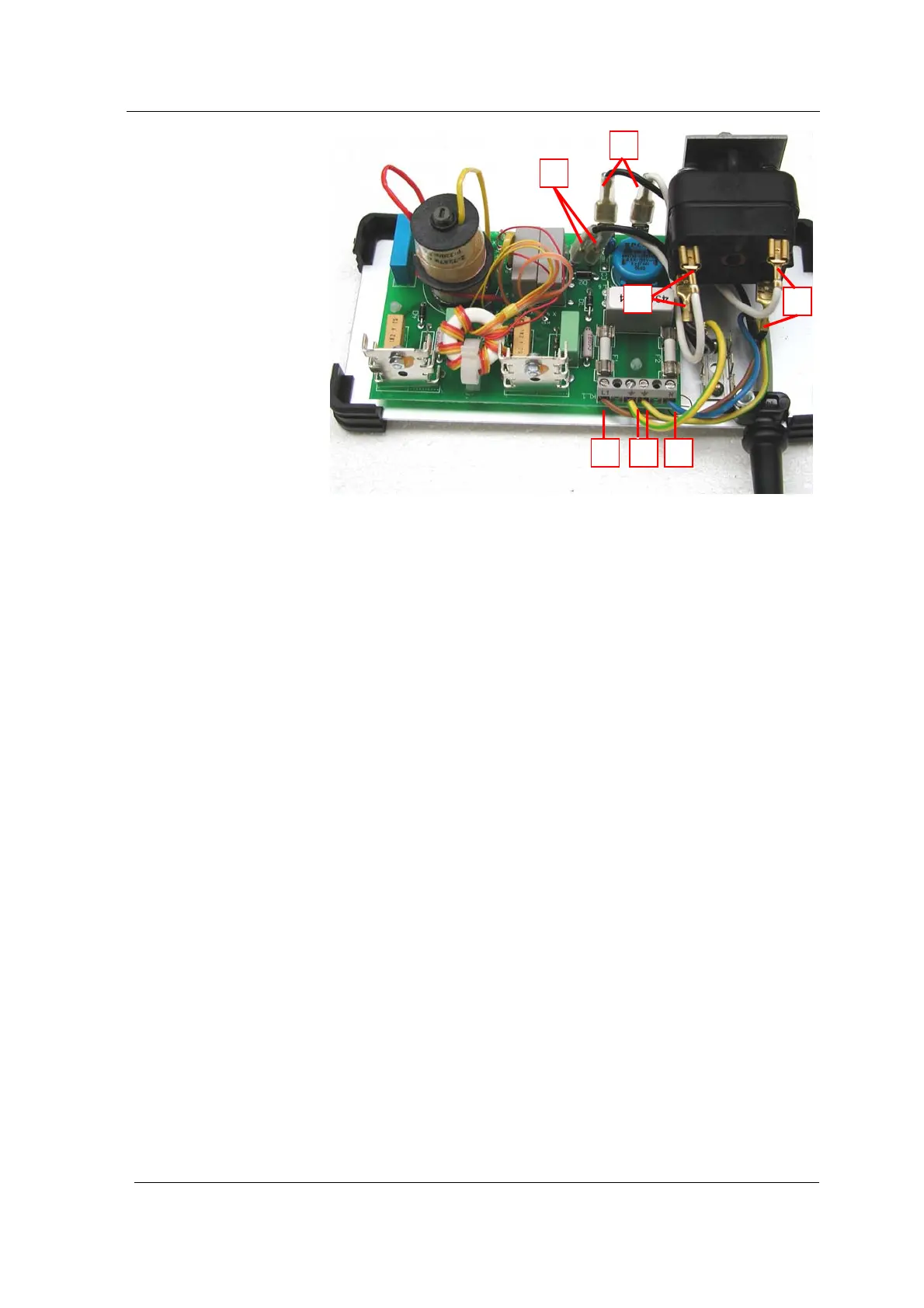

Illustration 14.1.2 Generator print mounted onto bottom plate (back
view)
Supply cables generator >> timer input.
Polarization irrelevant.
Supply cables timer output >> generator.
Polarization irrelevant.
Mains supply phase (brown).
Earthing cables.
Mains supply zero (blue).
D
E
G
F
H I K
D-E
F-G
H
I
K
