How to replace the ultrasonic generator
70
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG
Electric connections
and fixation o
f
transistors

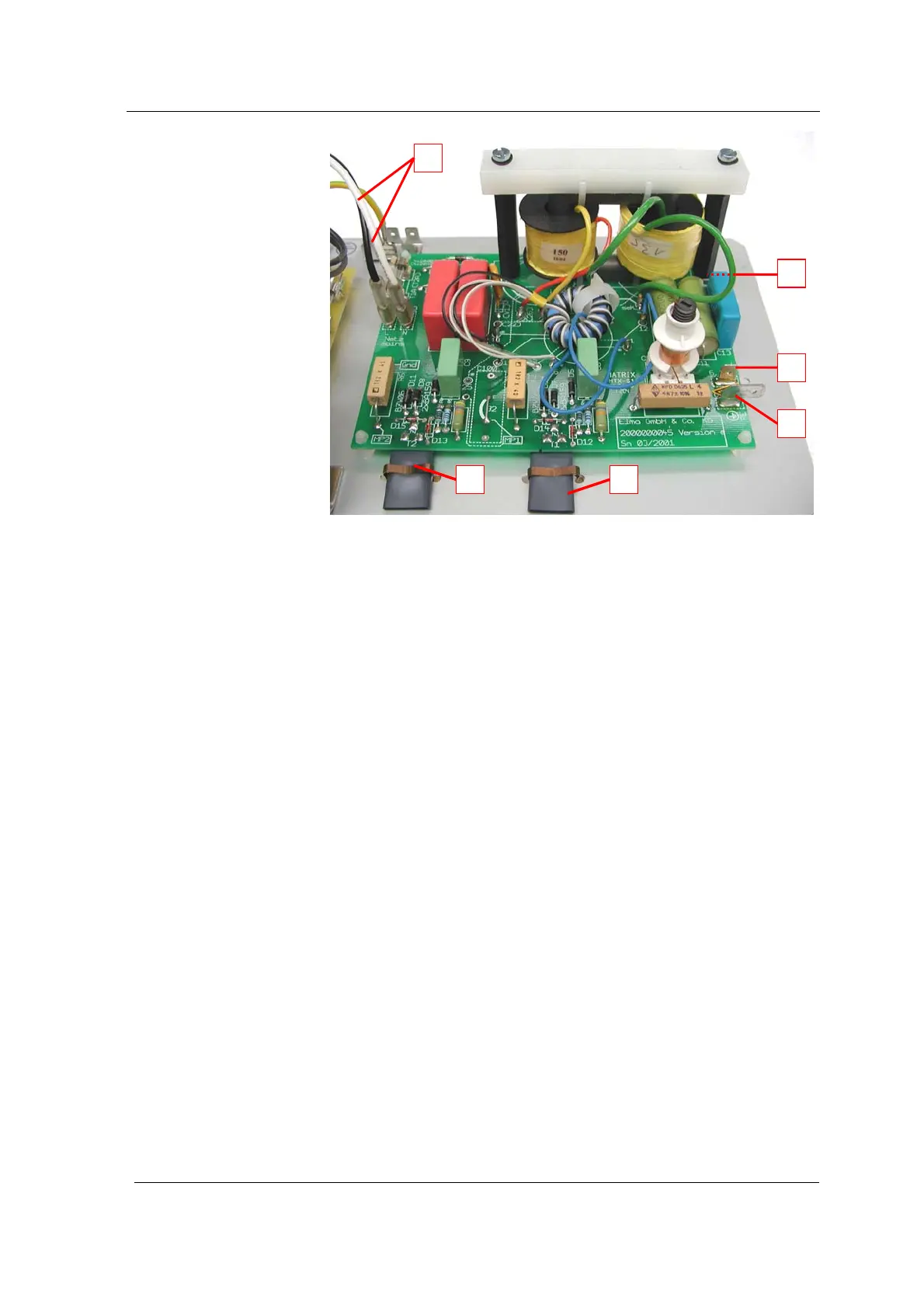

Illustration 14.3.1. Generator print TS540 – T700H; LC130H
Supply cables timer >> generator print.
Polarization irrelevant.
Plug contact 4.8 mm: HF output (+) to transducer system.
Plug contact 6.3 mm: HF output (-) to transducer system.
Earthing connection generator print >> earthing point bottom
plate (units made since 2000).
Holding clamps for transistors.
Insulating sleeves for transistors.
A
D
E
C
F
B
A
B
C
D
E
F
