How to replace the ultrasonic generator
72
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG
Electric connections

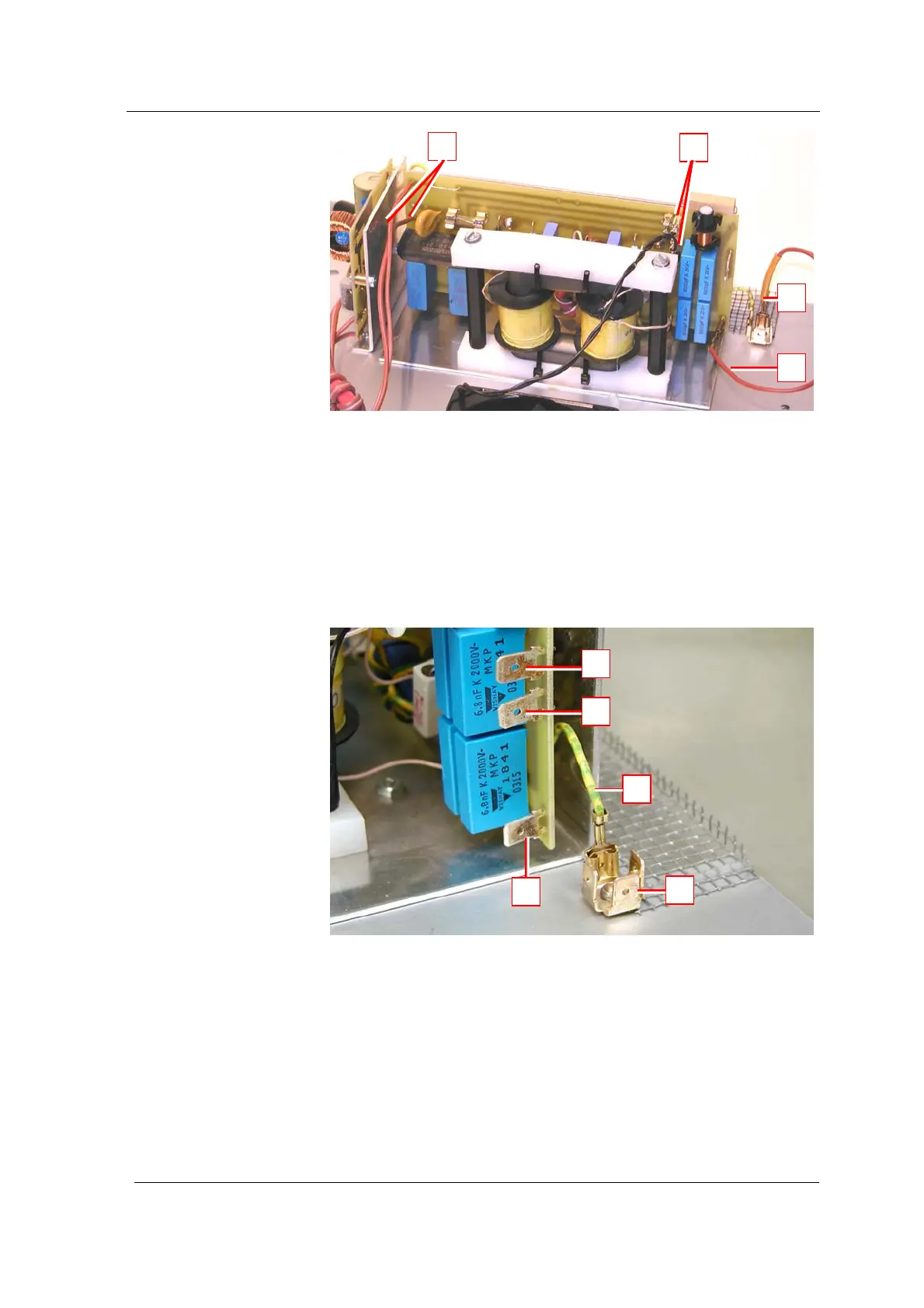

Illustration 14.4.1. Generator T780 – T1060H
Mains supply timer >> generator print.
Polarization irrelevant.
Supply cable to fan (2 plug contacts 2.8 mm).
HF (+) supply to transducer system.
Mass (-) supply to transducer system.
Earthing connection generator print >> earthing point on bottom
plate.
Illustration 14.4.2. Detailed view HF output
HF (+) output (plug ocntact 6.3 mm).
Earthing point (plug contacts 6.3 mm).
Mass connection (-) generator >> earthing point (D).
HF (+) output >> supply transducer system.
A
B
C
E
D
F
G
D
C
A
B
C
D
E
HF output
T780 – T890
C
D
E
