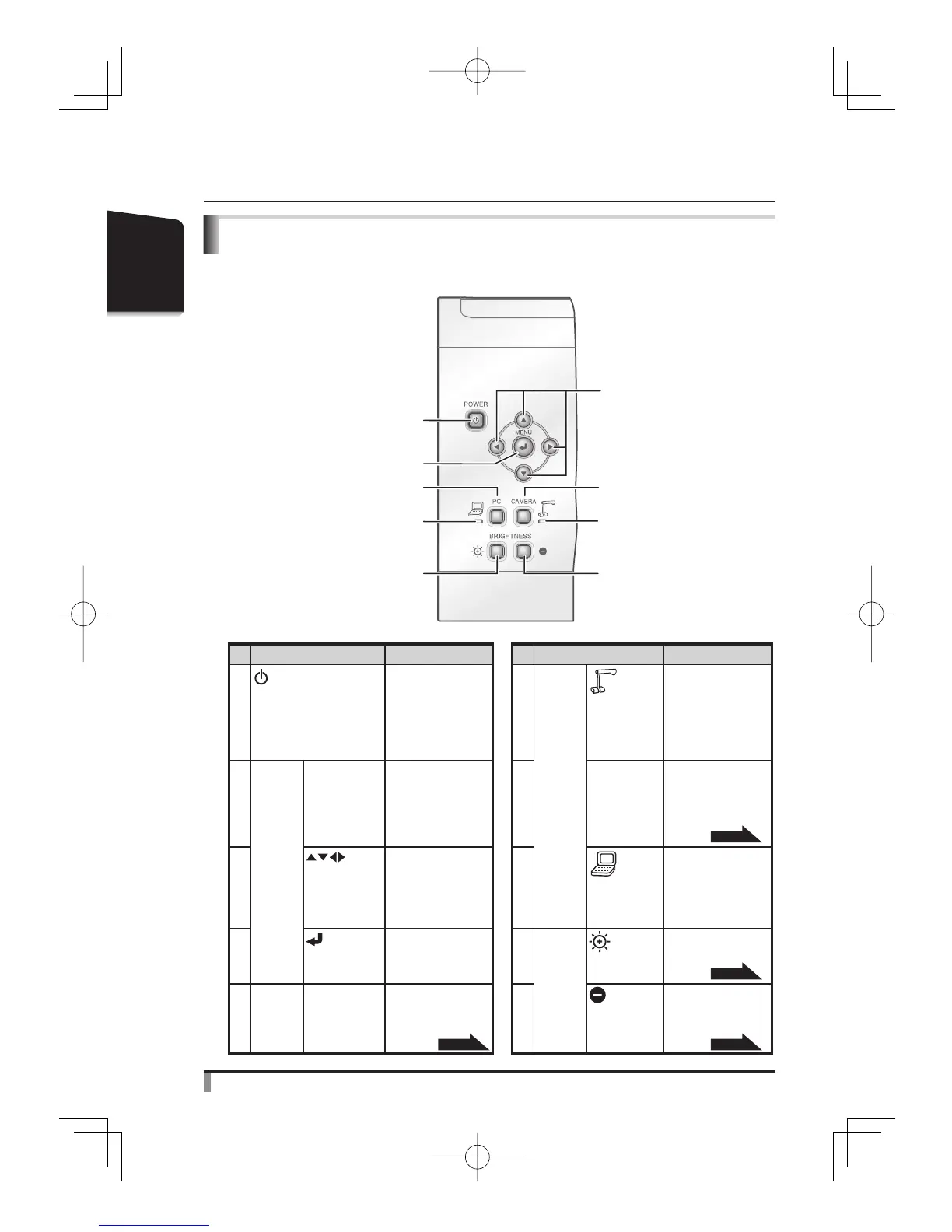

Functions

Operating buttons
Name Function Name Function
(1)
POWER
(Power switch ON/
OFF standby)
To turn ON/OFF
the power.
Power ON: Green
light turns on
Power OFF standby:
Red light turns on
(6)
select
(Camera
selection
display lamp)
To turn on when
the camera
image is selected
as the output
image.
(2)
OSD
operation
MENU To display/delete
MENU OSD.
(7)
PC
([RGB IN]
terminal
image)
To output the image
inputted to [RGB IN]
terminal from RGB
output terminal.
P. 2 7
(3)
(Direction)
To select the OSD
item.
(8)
([RGB IN]
terminal image
selection lamp)
To turn on when
[RGB IN] terminal
image is selected
as the output
image.
(4)
(Decision)
To decide the
OSD item.
(9)
BRIGHT
NESS
To brighten the
camera image.
P. 2 6
(5)
select
CAMERA
(Camera
image)
To output the
camera image
from the output
terminal.
P.27
(10)
To darken the
camera image.
P. 2 6
(1)
(8)
(7)
(9) (10)
(6)
(5)
(2)(4)
(3)
