Front Panel Operation
This chapter describes the Smartpack2 Master controller’s keys and indicators, and how to
operate the Smartpack2-based DC power system from the controller’s front panel.

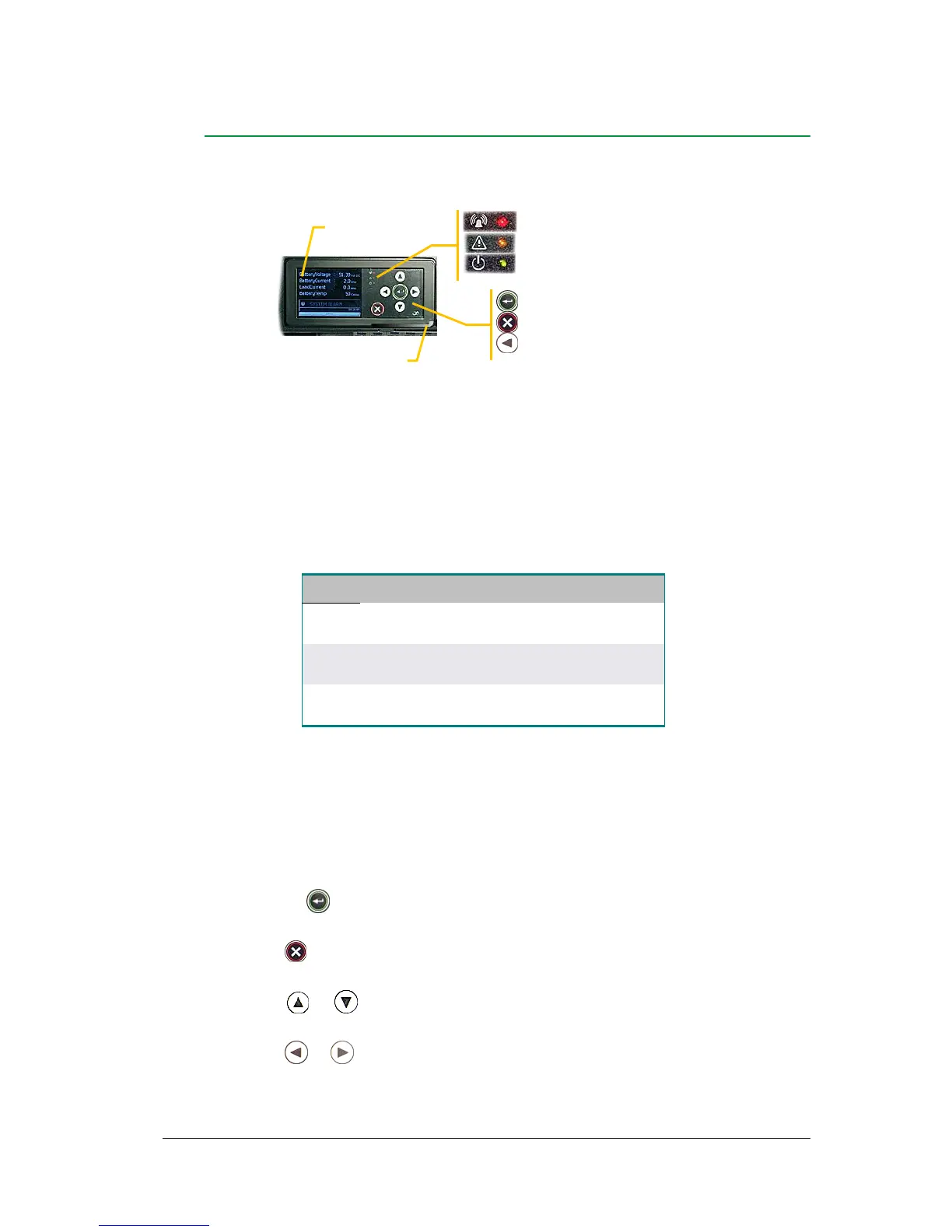

Figure 4 Smartpack2 Master controller’s front keys and indicators
Graphical Display
The Graphical Color Display — 3.2” TFT 32k, QVGA 320x240 — is either in Status
Mode (displays the system’s status) or in Menu Mode (displays the menu structure).
The Smartpack2 Master controller has the following LED indications:
Table 1 Description of the Smartpack2 Master controller’s LED illumination status
Front Keys
You can operate the power system navigating intuitively through the graphical menu
structure via the following 6 front keys.
 Press on the key
to change from Status Mode to Menu Mode and to select options, enter values
 Press the key
to navigate to previous level and cancel options and values
 Press the
or
keys
to navigate up- or downwards, point at options and increase and decrease values
 Press the
or
keys
to navigate one page up- or downwards and point at options
Smartpack2 Master controller
Handle in locked position
”Enter” key
“Cancel” key
Arrow keys
”Alarm” LED lamp (red)
“Warning” LED lamp (yellow)
“Power” LED lamp (green)
Graphical Color
Display
3.2” TFT 32k, QGVA
320x240
LED
Indicator
Illumination
Status
Description
Power
OFF
ON green
Flashing Green
The controller has NO supply
Supply healthy
Distributed Power Fault
Warning
OFF
ON amber
Flashing amber
No Warning
Warning (Minor alarm, non-critical alarm)
Communications Fault
Alarm
OFF
ON red
Flashing red
No Alarm
Alarm (Major Alarm, critical alarm)
SW Fault / Boot Loader Mode

Eltek Smartpack2 Specifications

General

Type	Power System Controller
Input Frequency	45 - 65 Hz
Operating Temperature	-40°C to +70°C
Communication Ports	RS232, Ethernet
Protocols	Modbus, SNMP
Protection Features	Overvoltage, Overcurrent, Over Temperature
