3.17 3.17 Additional safety features for furnace pneumatics (optional)

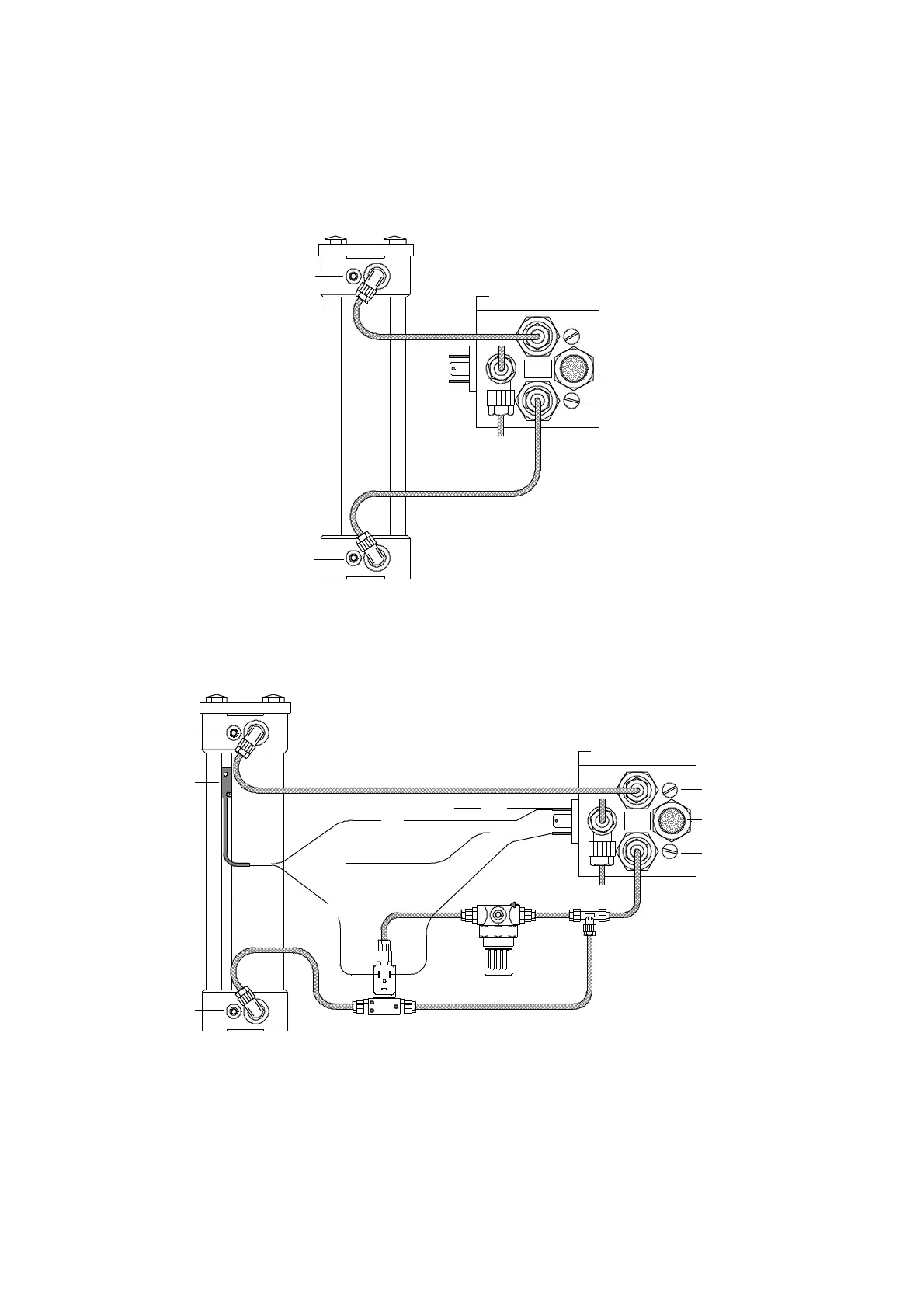

This is the standard pneumatics for the furnace piston drive.
A more controlled upward movement of the furnace piston is obtained this way:
When upgrading the standard pneumatics with the magnetic switch ( 9 ), the solenoid
valve ( 10 ), and the pressure regulator ( 11 ), the furnace piston will go up with a very low
pressure ( no danger ), and finally it will close at full pressure.
