1- CHARACTERISTICS
Control panel for governing 24 Vdc swing gates with 50 W + 50 W rated power, equipped with encoder interface used for obstacle detection and speed
control and integrated receiver.
The control panel enables:
- customizing the space and speed of deceleration in both opening and closing phases
- equipped with obstacle detection system
- LED for input diagnostics
- removable saved data memory
- integrated receiver with capacity for 200 remote controls (hard coded or rolling code)
- current control for electric motor protection

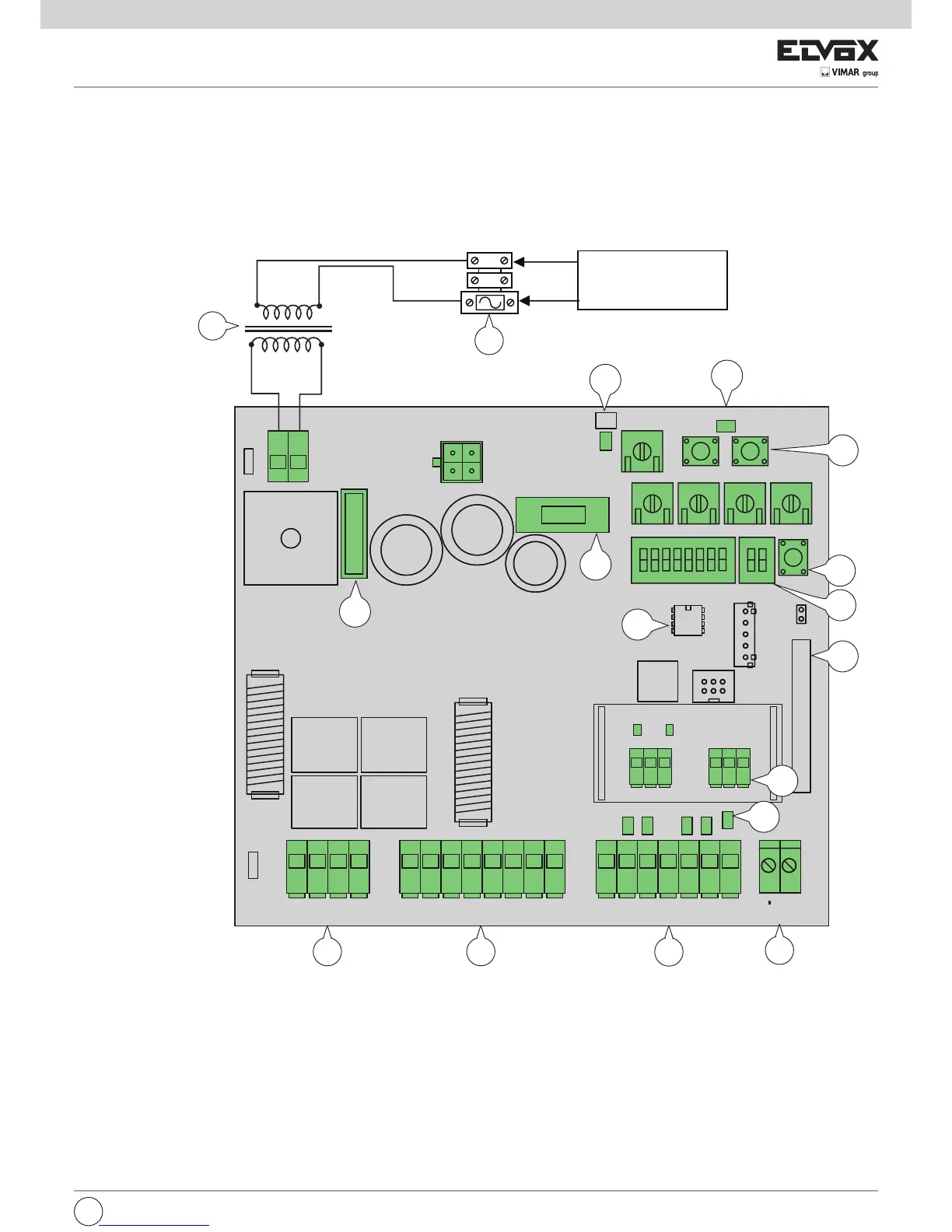

2- DESCRIPTION OF THE CONTROL PANEL
Key:
1- Transformer primary fuse (2 A delayed)
2- Transformer 230/120 Vac - 22 Vac
3- 15 A fuse protecting motor
4- 3.15 A fuse protecting accessories
5- LED signalling mains power supply
6- LED for programming diagnosis
7- AP/CH control button
8- Programming buttons
9- External memory
10- Radio module
11- LED for input diagnostics
12- Terminal for aerial connection
13 - Functions dip switches
14- Encoder interface
15- Removable terminal for connecting safety and control inputs
16- Removable terminal for connecting electric lock, power supply for accessories, flashing light, second radio channel output and gate open warning light
output
17- Removable terminal for connecting the motor output
Fig. 1
EN
20 A
CN4CN3CN2CN1 STPA
AC
ON ON
1 21 234 5 678
PT1
CN5
FST
VA2
VA1
SEC
TR5
P2 P3
TR1TR2 TR3TR4
FORZA M1 FORZA M2 V.RALL V.MAX
DIP1 DIP2
AP/CH
P1
JP5
U1
U2
CN8CN6
IBRIDO RX
IBRIDO RX
ENCM1ENCM2
Led
encM1
Led
encM2
APCH APED STOP FOTO
1234
5678
910111213141516171819
20 21
22 23 24 25 26 27
CN7
F1 (ATO)
F2 (5x20)
F 3.15A
DL6
DL7
