3- RISK ASSESSMENT

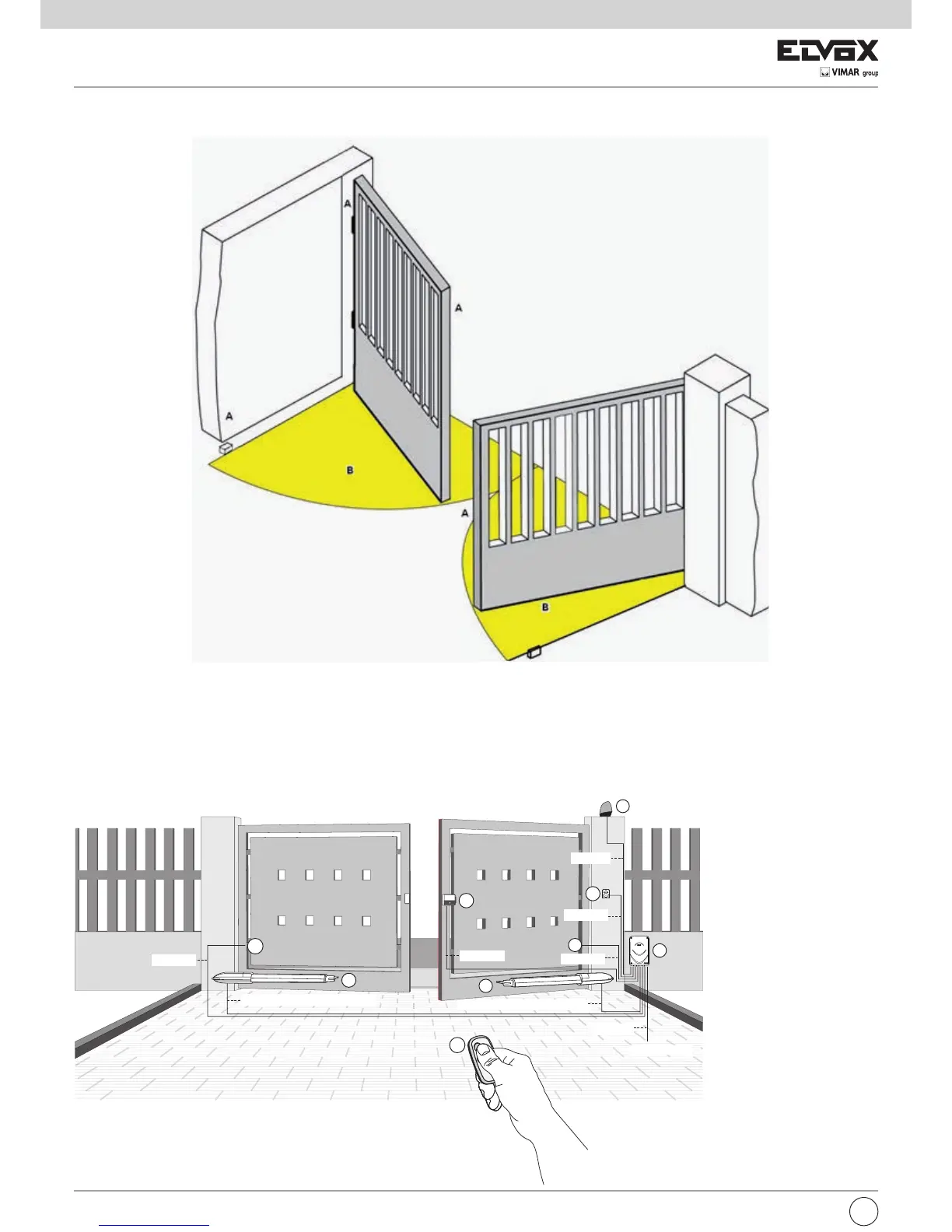

Before starting to install the automatic gate system it is necessary to evaluate all possible points of danger during the movement of the gate. The figure
shows some of the danger points of the swing gate.
Before starting installation you need to check that there are secure mechanical stops and check the gate support system.
4- ELECTRICAL WIRING HARNESSES
System set-up
Fig. 2
Key:
A - Linear actuator
B - Control unit
C - Flashing light
D - 2-channel radio control
E - Pair of photocells
F - Selector
G - Electrical lock
2x0.5 mm
2
2x1 mm
2
3x0.5 mm
2
4x0.5 mm
2
2x0.5 mm
2
2x2.5 mm
2
+3x0.5 mm
2
(encoder)
2x2.5 mm
2
+3x0.5 mm
2
(encoder)
3x0.5 mm
2
230/120 Vac
C
B
E
E
A
A
D
F
G
