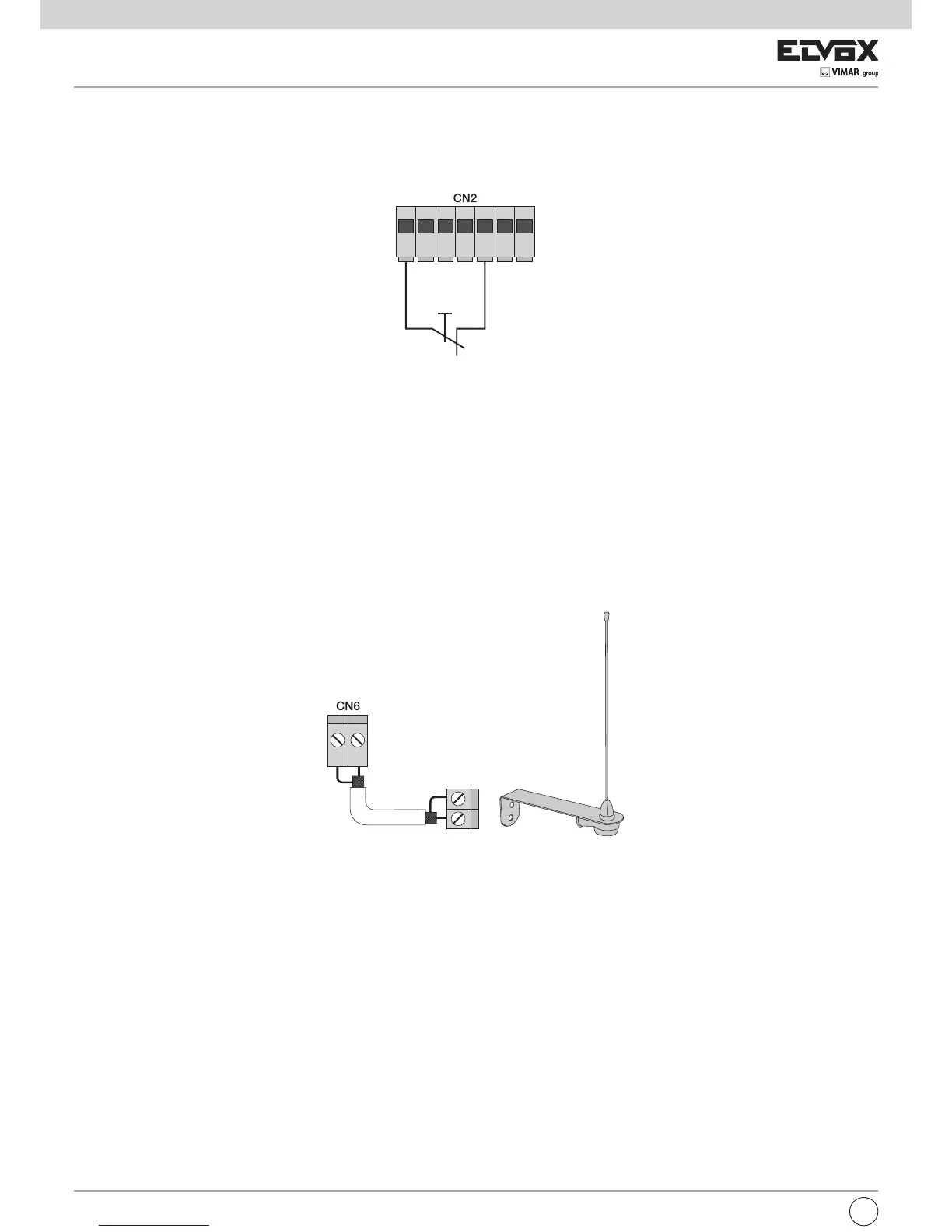

4.8- Stop button connection
normally closed contact, opening the contact causes the gate to stop and suspends the automatic closing time (when the button is not engaged, the STOP
LED should be lit), if not used then jumper between COM and STOP:
N.B. If the system has no photocells, sensitive edges or stop buttons (the PHOTO, STPA and STOP inputs must be jumpered), do not activate the
photo-test function and select the switch edge (dip switch 1-5 and 1-7 set off).
4.9- Connecting the aerial
The 17 cm rod is supplied pre-wired, to increase the range connect the aerial ZL43, as shown in the figure:
Normally closed button
Fig. 10
Fig. 11
