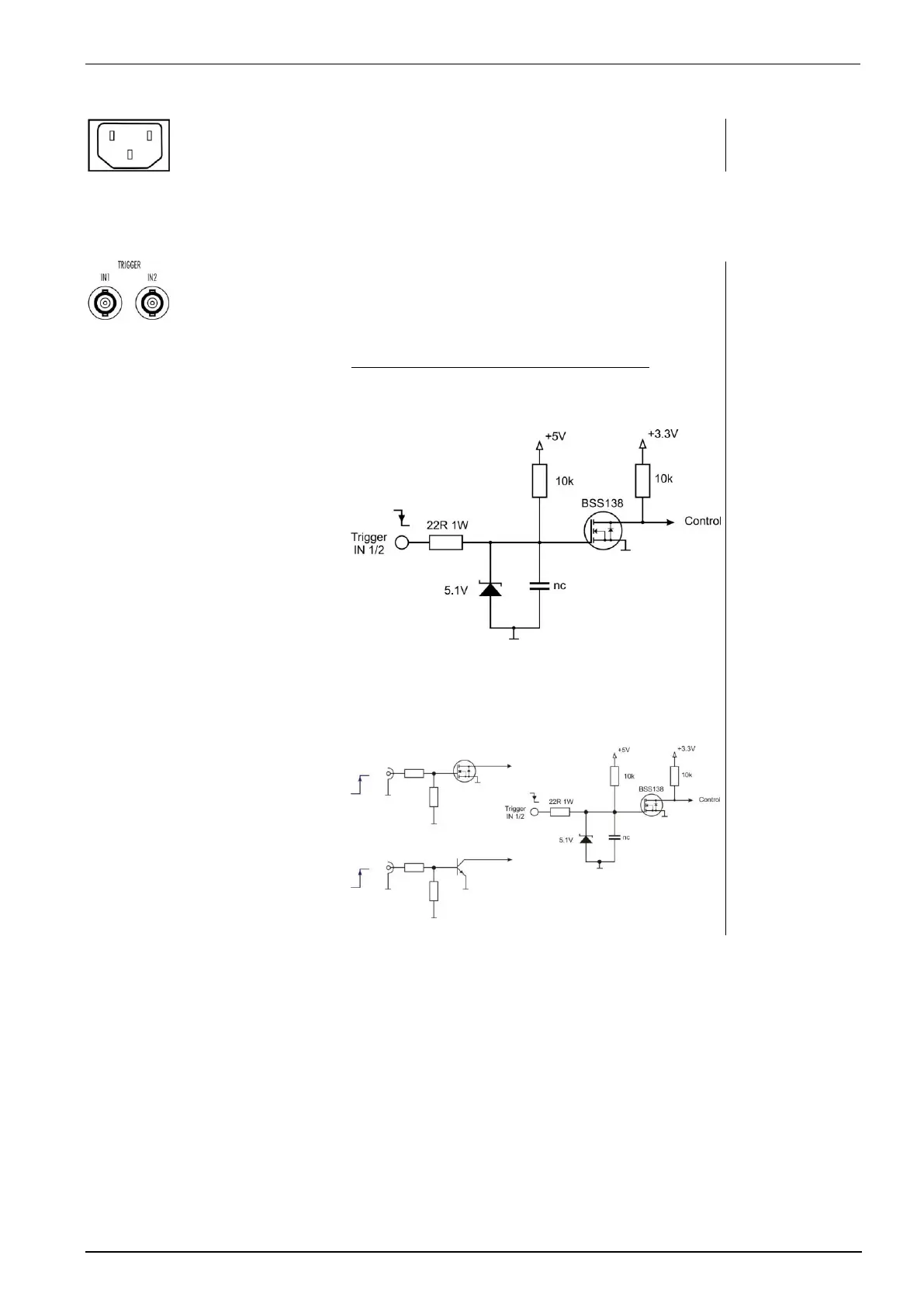

Manual for Operation V 5.9.1 10 / 45
9. Mains input
The plug is part of the mains filter. ( 90 - 250V / 1A )
10. Trigger IN
Start Stop
Trigger input for event triggering. This trigger inputs
are connected directly to the DSP signal processor.
Input Signal : Negative slope
Input Function Remarks
Trigger IN 1 : Wave start
Trigger IN 2 : Wave stop ( Vers. >1.30)
Proposal design of external circuit for using positive
edge trigger signal.
External trigger circuit Trigger Input
