Manual for Operation V 5.9.1 11 / 45

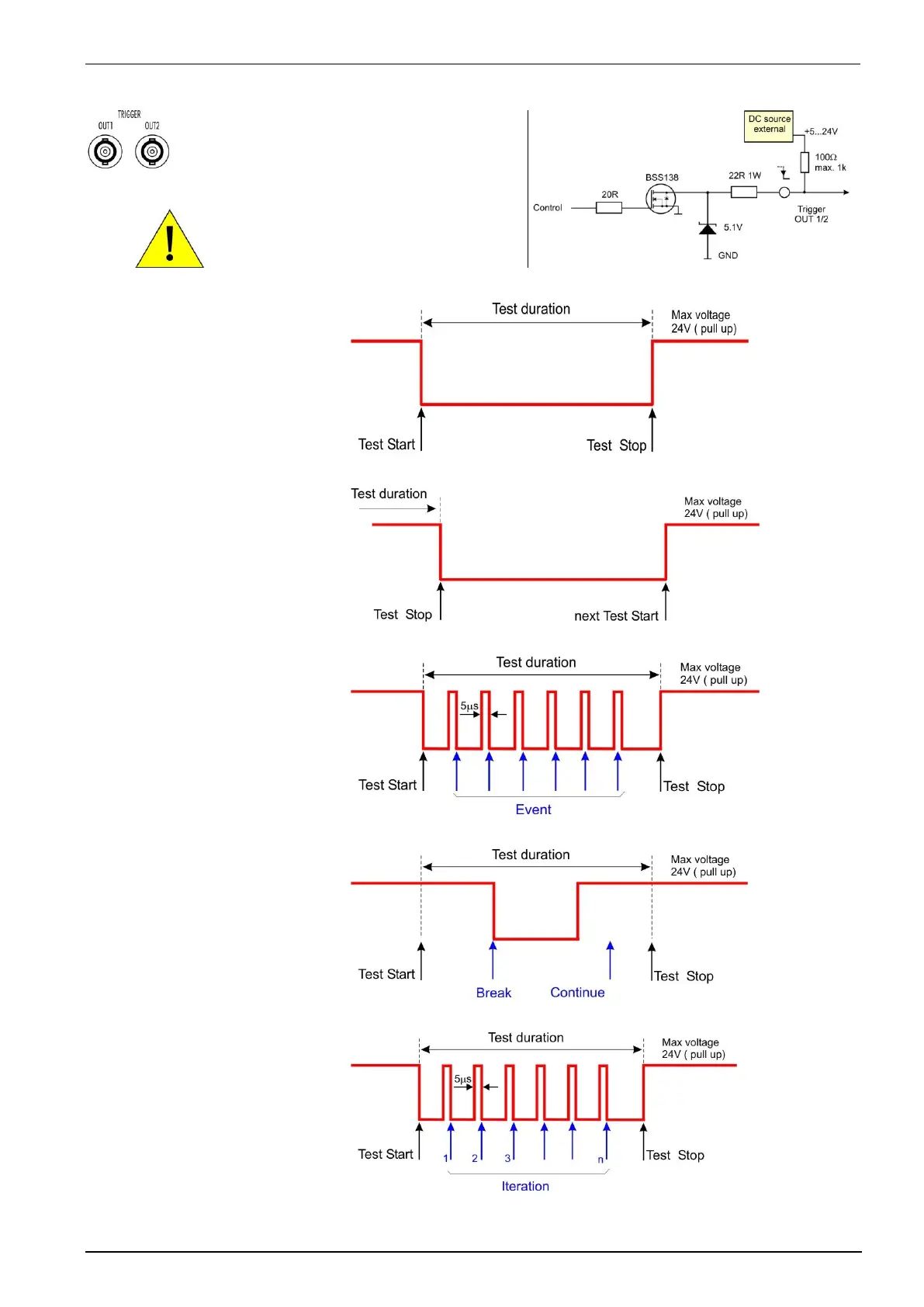

11. Trigger OUT
Trigger outputs for event triggering. This
trigger outputs are generated from the DSP
signal processor.
Max. voltage: 24V ( pull up )
Current : 100mA
NOTE : For use the trigger out the user has
to connect an external DC source
for pull up the trigger signal
Trigger OUT at Start
Trigger OUT at Stop
Trigger OUT at Event
Trigger OUT at Break
Trigger OUT at each Iteration
