EM TEST CNI 503 Series User Manual

EM TEST CNI 501 / CNI 503
Manual of operation V 3.32 14 / 41

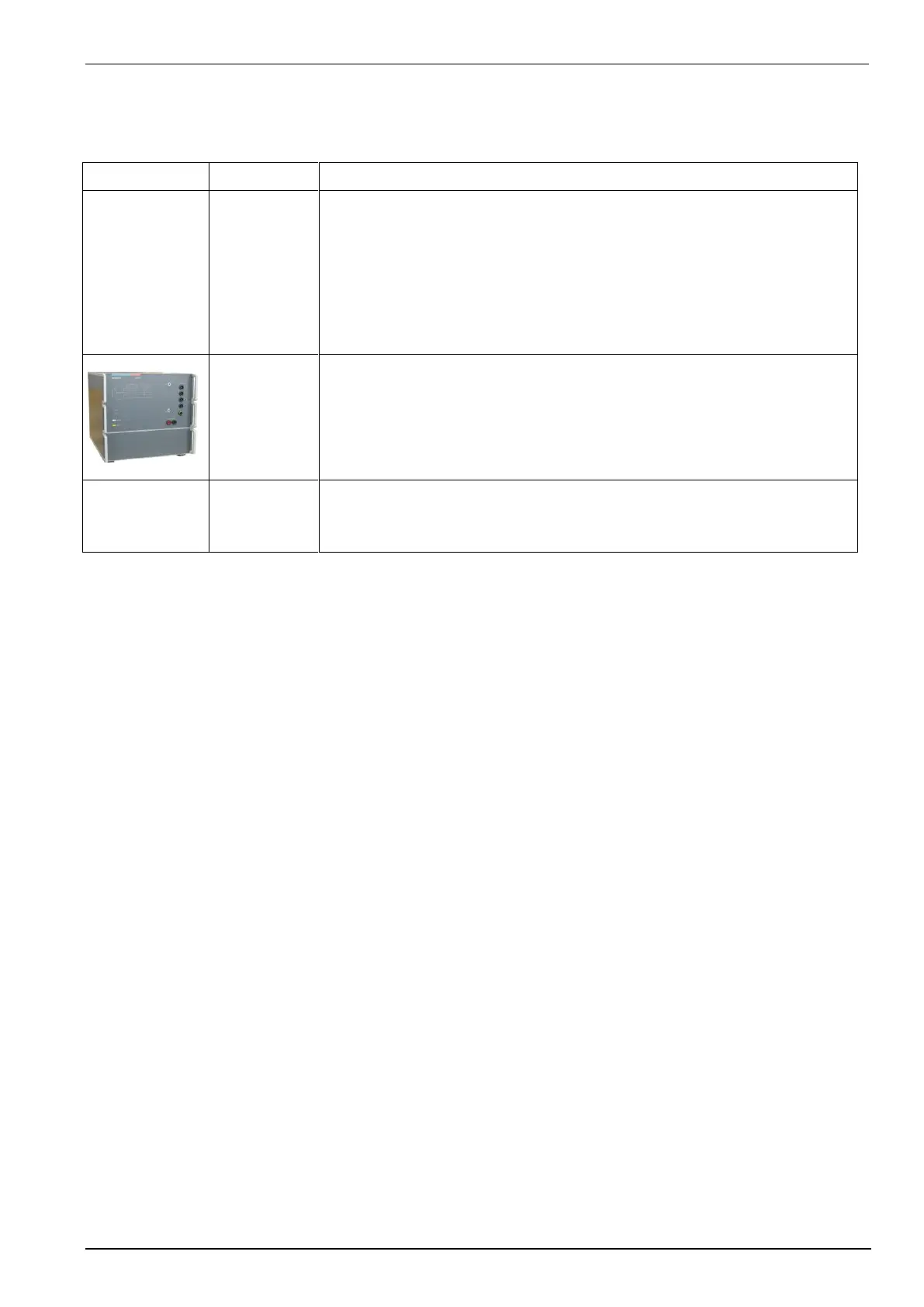

4.3.
Technical data special CNI 503
Differences to the standard CNI 503 devices:
Device
Based on
Differences
CNI503 B S7
CNI 503 B7
7 kV 32 A
- 3x208 V; 400 Hz
- Coupling capacitor surge = 1 F
- Inductance per phase = 160 H
- Burst 6.0 kV
For the CNI 503BS7 which is designed for a 400Hz power mains supply
network the series inductors had to be limited to 160uH totally. Then
the pulse duration of the applied surges are reduced furthermore.
CNI 503A12S2
- 3x690V 50/60 Hz
- 8 kV Surge
- IEC & ANSI-B Kopplung manuell wählbar
Dimension: 19“, 9 HU
500 mm x 448 mm x 420 mm (LxBxH)
Weight: 48.9 kg
CNI 503 A14.1
- 3x440 V 50/60 Hz
- 8k V Surge
Dimension: 19“, 34 HU Rack
Weight: 181 kg (Rack with CNI 503A14.1 no generators)
