EM TEST CNI 503 Series User Manual

EM TEST CNI 501 / CNI 503
Manual of operation V 3.32 15 / 41
4.4.
General
DC supply as per tables in 4.2
Coupling modes Surge IEC 61000-4-5
Line to Ground all combinations coupling capacitor 9F Source impedance 12
Line to Line all combinations coupling capacitor 18F Source impedance 2
Output sockets for testing signal and data lines with CNV 504 and CNV 508
Coupling modes Burst IEC 61000-4-4
Line(s) to ground all combinations
Output sockets for capacitive coupling clamp
Remote control
UCS 500; all models Burst and Surge
EFT 500, all models Burst
VCS 500M; all models Surge
Note: In case that all remote control input at the CNI 503 are available and the user has all above
mentioned generators available a simultaneous use of all generators is not allowed.
The operator has to decide either to use the UCS 500 or the EFT/VCS combination of generators.
Power supply
Mains 115 V / 230 V
Fuse 2 A slow blow all models

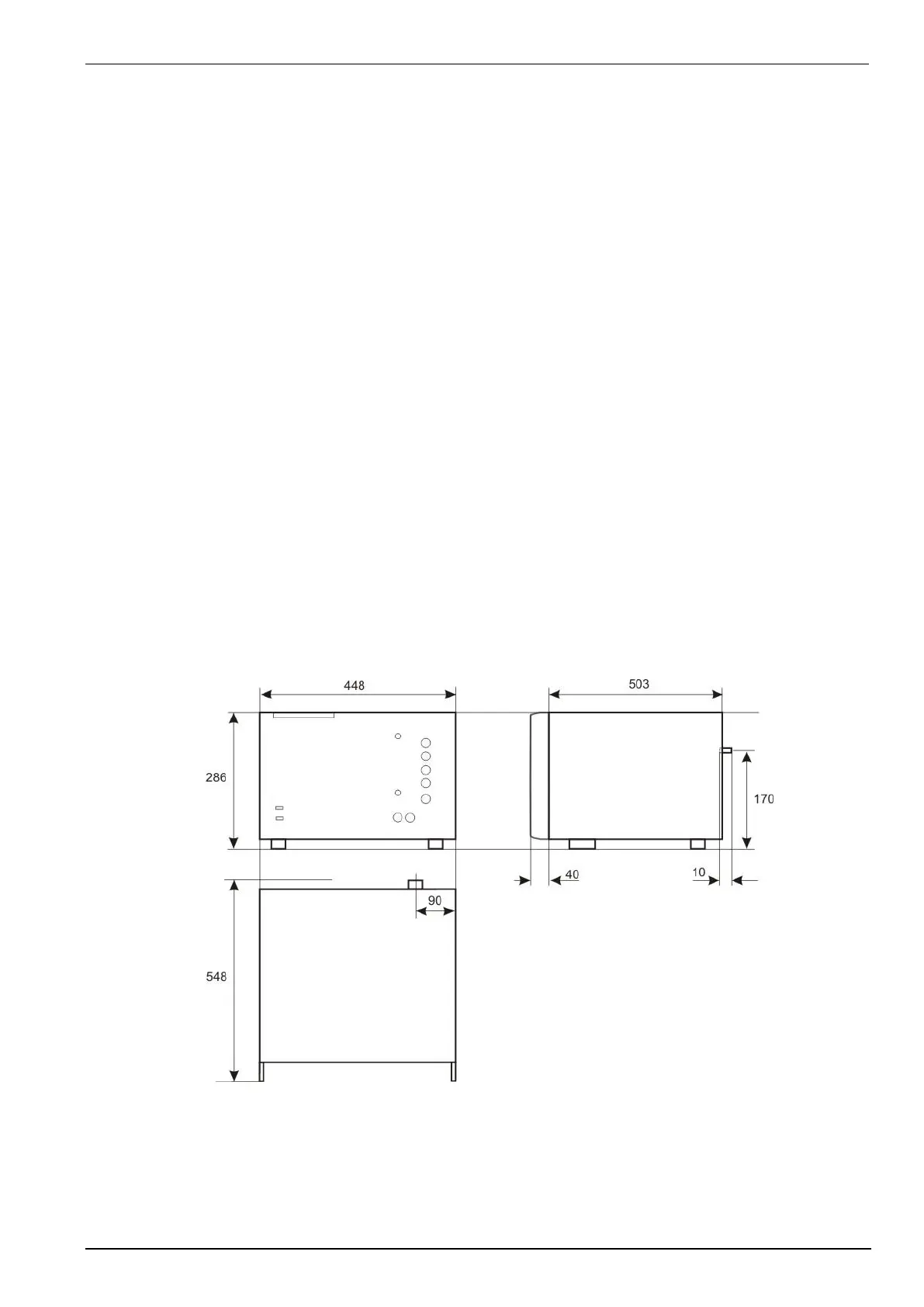

Dimension and weight
Housing 19” 6HU (models up to 32 A all models if not otherwise specified)
Weight 16 A models 3-ph: Approx. 30 kg
32 A models 3-ph: Approx. 45 kg models 1-ph approx. 30 kg

EM TEST CNI 503 Series Specifications

General

Brand	EM TEST
Model	CNI 503 Series
Category	Test Equipment
Language	English
