EM TEST CNI 503 Series User Manual

EM TEST CNI 501 / CNI 503
Manual of operation V 3.32 34 / 41
12.2.
Connectors
For general EUT connection to the rack 4/6 mm plug from Multi Contact are proposed. Below you find some
information from the Multi Contact catalogue. For detail information please refer to http://www.multi-contact.com/

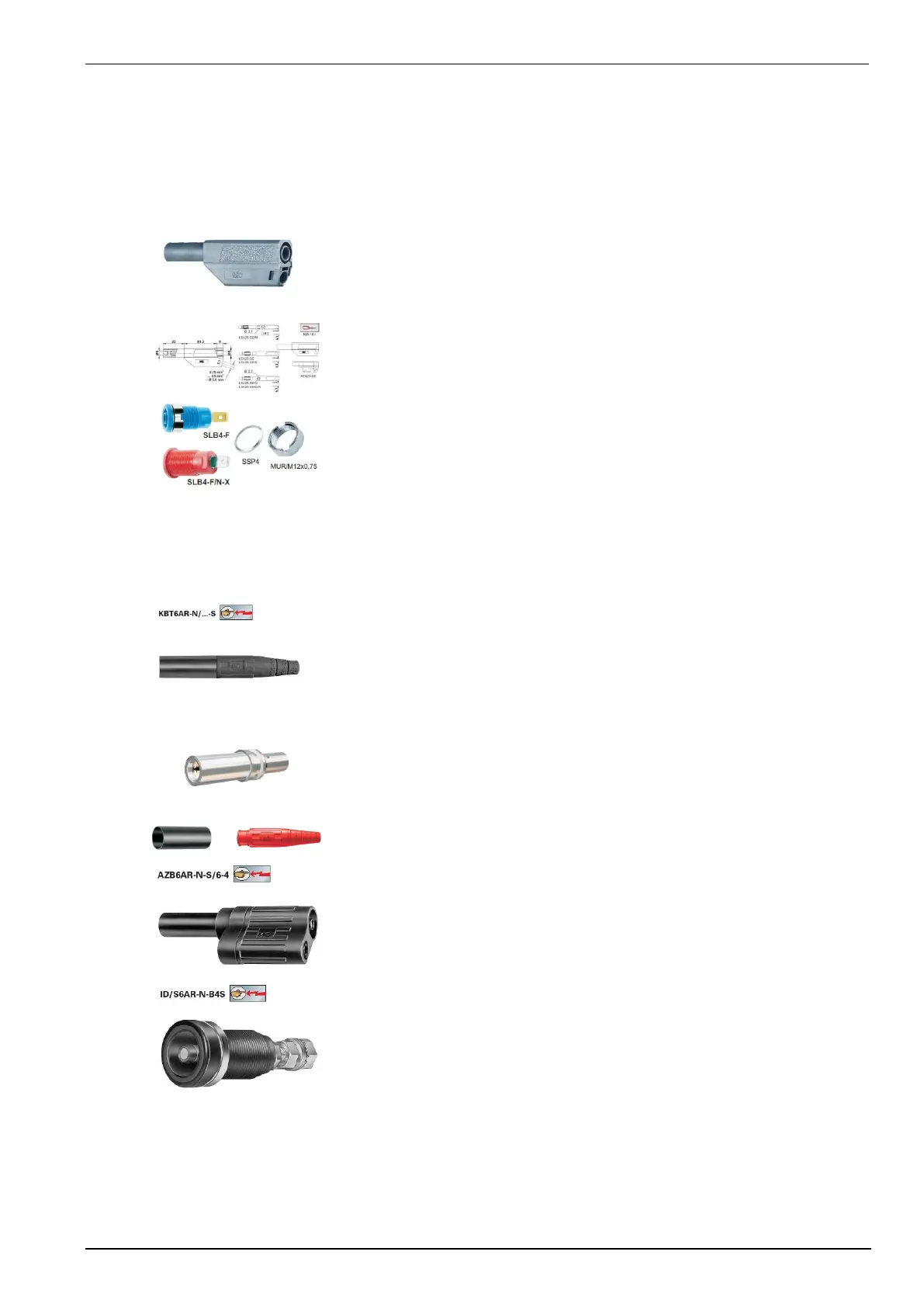

12.2.1.
32 A plugs and connectors 4mm from Multi Contact
SLS425-SE/M
Stackable Ø 4 mm plugs with spring-loaded Multilam for self-assembly of
test leads. With rigid insulating sleeve. Nickel-plated and gold-plated
versions available.
Various types of connection:
SLS425-SE/M: Screw connection
SLS425-SE(/N): Cylindrical soldering surface
SLS425-SE/Q(/N): Cross hole for solder connection
SLB4-F SLB4-F/N-X
Insulated Ø 4 mm rigid sockets accepting spring-loaded Ø 4 mm plugs with
rigid insulating sleeve. Machined brass, nickel- or gold-plated. The socket is
screwed into predrilled panels of plastic, metal etc.
-Flat connecting tab 4.8 mm x 0.8 mm.
-Round connecting pin Ø 1.9 mm.
12.2.2.
100 A plugs and connectors 6mm from Multi Contact
Safety sockets KBT6AR-N/...-S with snap-in lock and crimp connection
Model KBT6AR-N/...-S safety sockets are sockets with locking devices and
for crimping onto highly flexible Cu conductor with cross-sections of 10mm2,
16mm2 or 25mm2.
This safety socket is suitable for mating with either safety flush-mounting
plugs or plugs model KST6AR-N. Used together with a flush-mounting plug it
acts as an appliance connector and with plugs as a coupler.
IH6 + T6N
Sockets BP...AR-N with snap-in lock and crimp termination
Crimp termination for flexible and highly flexible Cu-cables class 6
(according to IEC 6028). MC recommends a hexagonal crimp. Indent
crimping and soldering is also possible. Cables with compacted conductors
need a special crimping sleeve.
Safety branch adapter AZB6AR-N-S/6-4
Safety branch adapter with snap-in lock and ergonomic PA/TPE insulation
that grips well. Mating plugs with suitable locking devices can be snap-
locked into the socket. With one pick-off socket Ø 6mm and two safety
sockets Ø 4mm for voltage tests up to 600V, CATIII.
Safety flush-mounting plugs ID/S6AR-N-B4S with snap-in lock and
threaded stud
Model ID/S6AR-N-B4S safety flush-mounting plugs are insulated plugs
designed for flush mounting in housings and panels. The plugs are designed
to mate with sockets KBT6AR-N. The resulting plug connections are
securable by means of snap-in lock. The plug ID/S6AR-N-B4S also mates
with Ø 4mm MC Safety plugs, because the Ø 6mm plug has a Ø 4mm
socket hole. The internal connection is made with an M6 threaded stud with
nuts and washers. These safety flush-mounting plugs are also used to be
connected with test leads according to the test accessories IEC/EN61010,
(UL3111) and are UL recognised.
