EM TEST CNI 503 Series User Manual

EM TEST CNI 501 / CNI 503
Manual of operation V 3.32 27 / 41
8.
CNI 503 Rack Mountain
Device
Impulse Phase Supply rated Current ac/dc
Remarks
CNI 503 A3
5.5kV 3 3x480V 63A
requires MRAC or RAC
CNI 503 A4
5.5kV 3 3x480V 100A
requires MRAC or RAC
CNI 503 A8
7kV 3 3x480V 63A
requires MRAC or RAC
CNI 503 A9
7kV 3 3x480V 100A
requires MRAC or RAC
CNI 503 A13
8kV 3 3x480V 63A
requires MRAC or RAC
CNI 503 A14
8kV 3 3x480V 100A
requires MRAC or RAC
CNI 503 A19
10kV 3 3x480V 63A
requires MRAC or RAC
CNI 503 A20
10kV 3 3x480V 100A
requires MRAC or RAC
Coupling networks as per IEC, ANSI and Ringwave
CNI 503 B8
7kV 3 3x480V 63A
requires MRAC or RAC
CNI 503 B9
7kV 3 3x480V 100A
requires MRAC or RAC
CNI 503 B9.6
7kV 3 3x480V 100A
requires MRAC or RAC
Special Coupling networks
CNI 503A S3
4.4kV 3 3x690V 63A
requires MRAC or RAC
CNI 503A S4
4.4kV 3 3x690V 100A
requires MRAC or RAC
CNI 503B S3
7kV 3 3x690V 63A
requires MRAC or RAC
CNI 503B S4
7kV 3 3x690V 100A
requires MRAC or RAC
CNI 503A S22
4.4kV 3 3x480V 200A
requires MRAC or RAC
Coupling networks for the US are generally specified for a 3 phase power mains supply of 3x480Vrms.

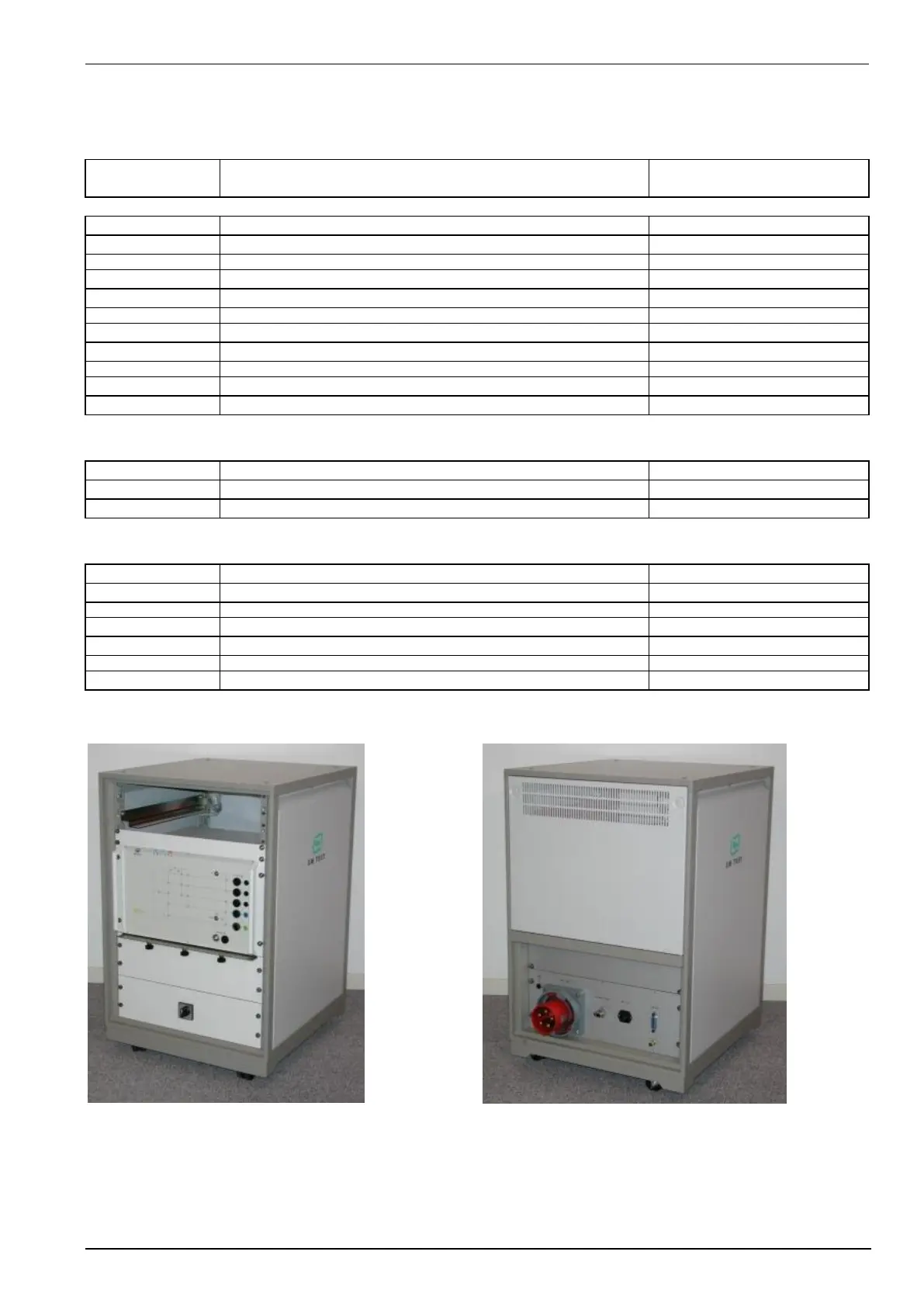

Figure 8.1: Minirack front side
Figure 8.2: Minirack rear side
- Minirac on wheels for 63A and 100A
- Height is 16 HU; totally about 85 cm
- Weight is app. 100kg
- Ground reference connection to the test table (due to the compact size this connection is not on table height)
