EM TEST CNI 501 / CNI 503
Manual of operation V 3.32 30 / 41
9.1.4.
DC Application
Burst coupling as per IEC 61000-4-4
IEC 61000-4-4
All combinations
/ (coupling to 50 ohm output)
One coupling: “+”; “-“; PE,
“+” + “-“ + PE
Two couplings: “+” & ”-“; “+”& PE; “-“N+PE
Three couplings: “+” & “-“ & PE
Surge coupling as per IEC 61000-4-5
The standard couplings are bolded
Coupling 20uF (18uF)
Coupling 10uF (9uF)
Other couplings
/ (coupling to HV – COM output)
“+” – “-“
“+” - PE
“+” + “-“ - PE
“-“ – PE
9.1.5.
Schematics

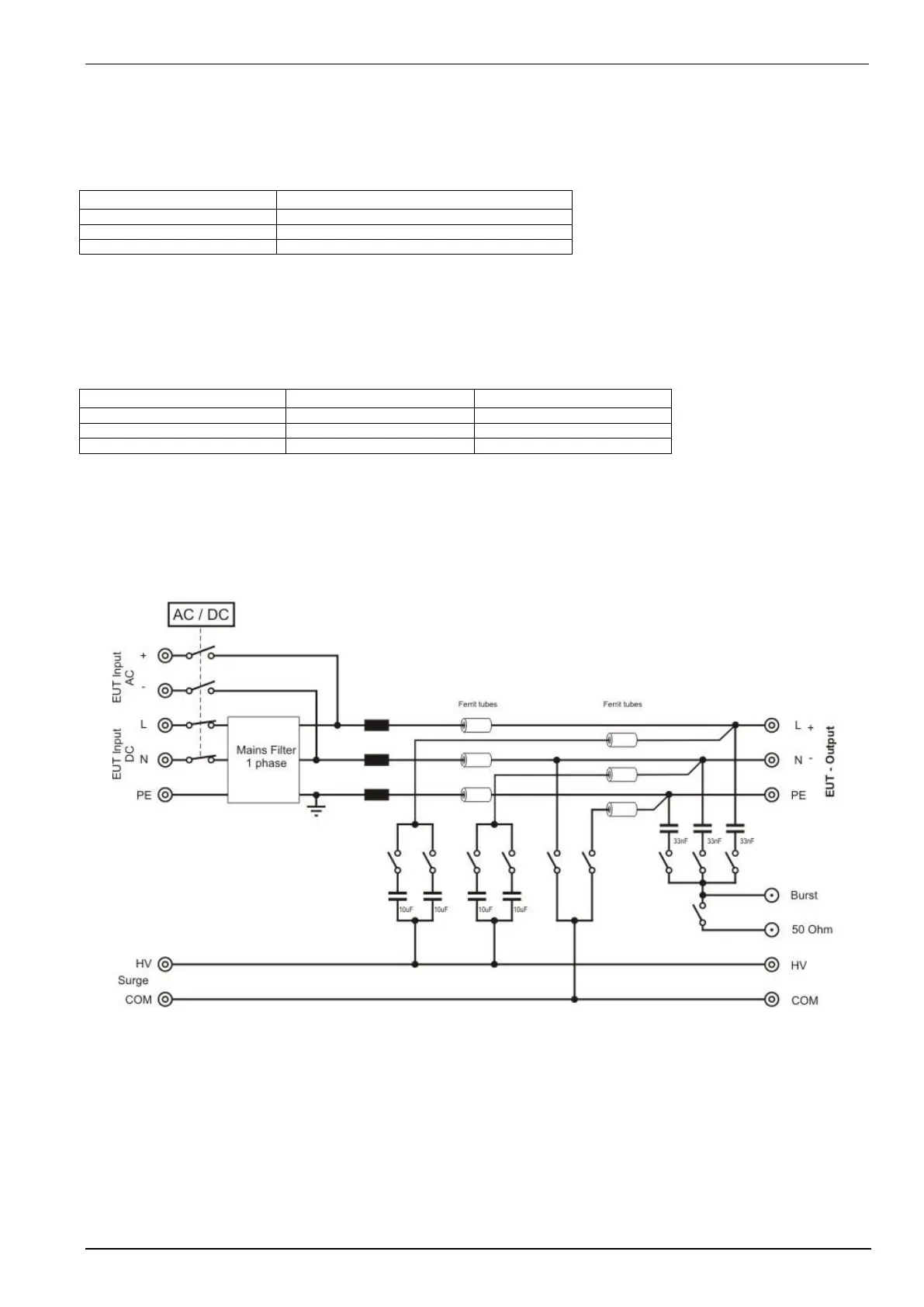

Figure 9.3: CNI 501B9 Overview
