EM TEST RDS 200N User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 11 / 57
2.3.
VDS200N100.1 operating elements
2.3.1.

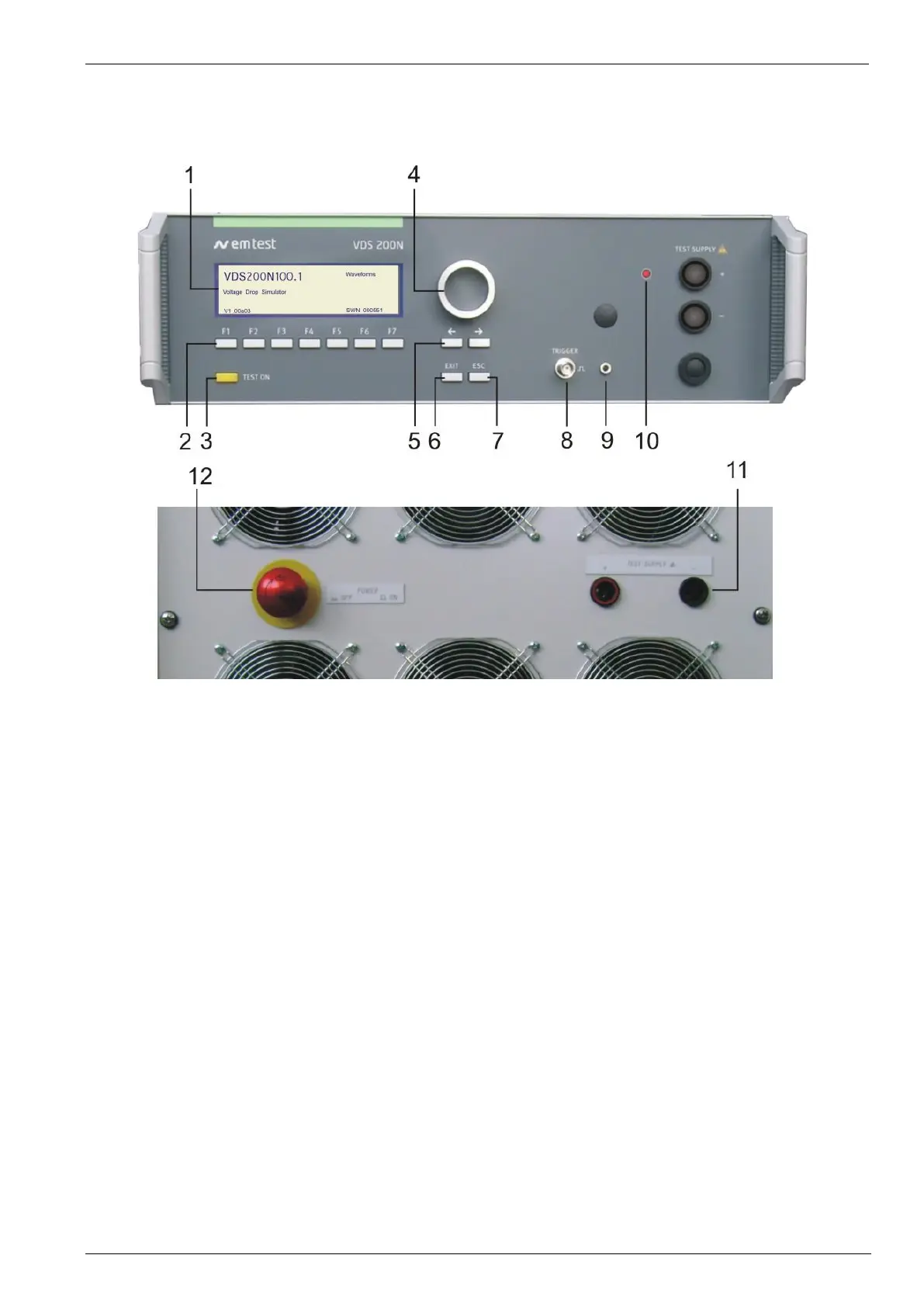

Front view VDS200N100.1
1 Display
2 Function keys "F1..F7"
3 "TEST ON"
4 Knob (Inc/Dec)
5 Cursor keys "" and ""
6 EXIT
7 ESC
8 BNC CRO Trigger ( for oscilloscope)
9 Earthplug for voltage probes
10 LED Power ON
11 DUT test supply output
12 Emergency switch OFF
11 EUT test supply
The EUT is powered via the safety laboratory plugs at the front panel of the simulator.
12 Emergency Switch OFF
Switches off the DUT output. ( for release the button turn before)
