4.5.5.
Typical protection behavior

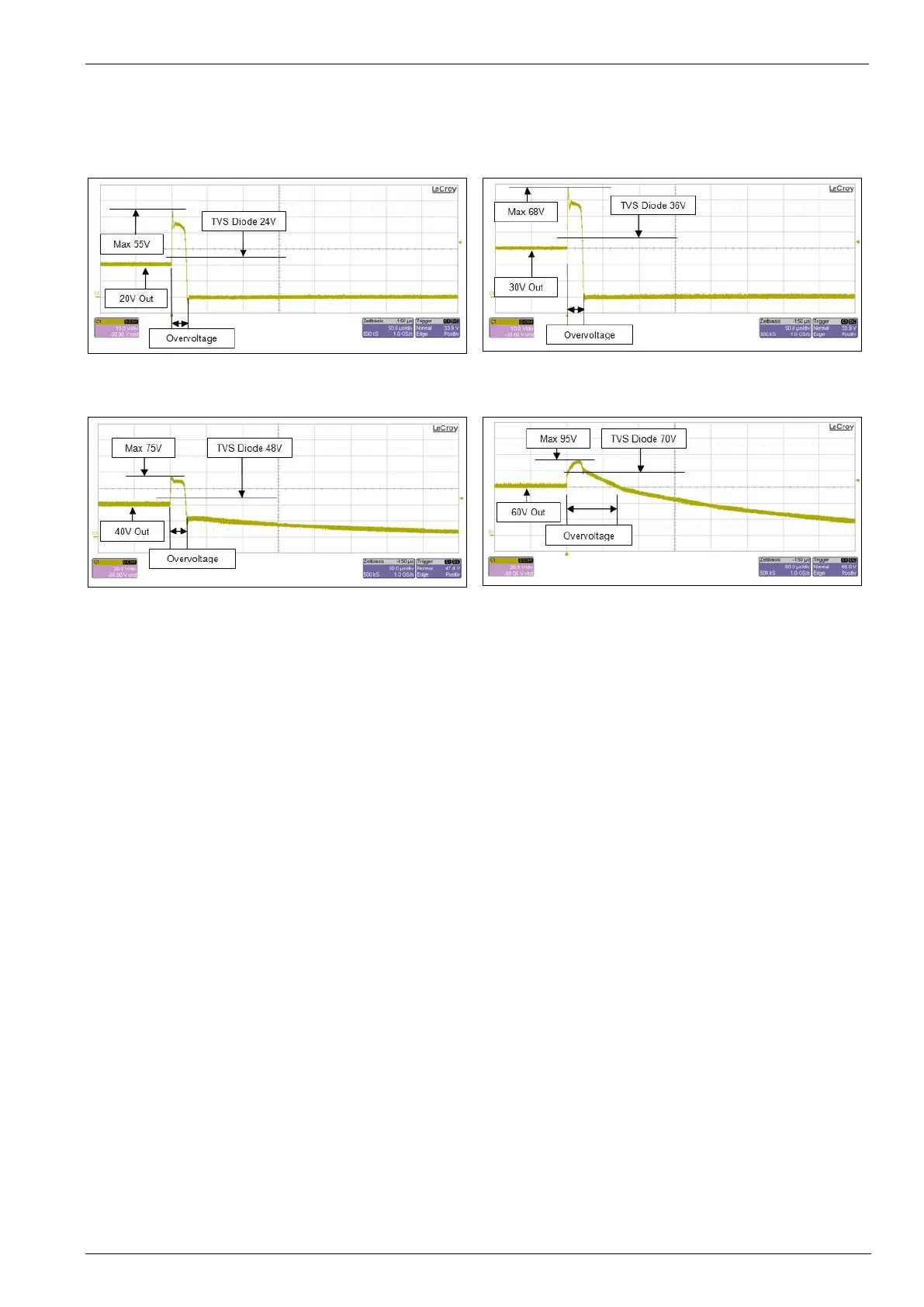

The following pictures show the typical behavior of the crowbar protection in case of an overvoltage.
Protection level 20V
Protection level 30V
Protection level 40V
Protection level 60V
