EM TEST RDS 200N - Examples Test Setup

EM TEST VDS 200 Series
Manual for Operation V 5.19 45 / 57
6.4.
Examples Test setup

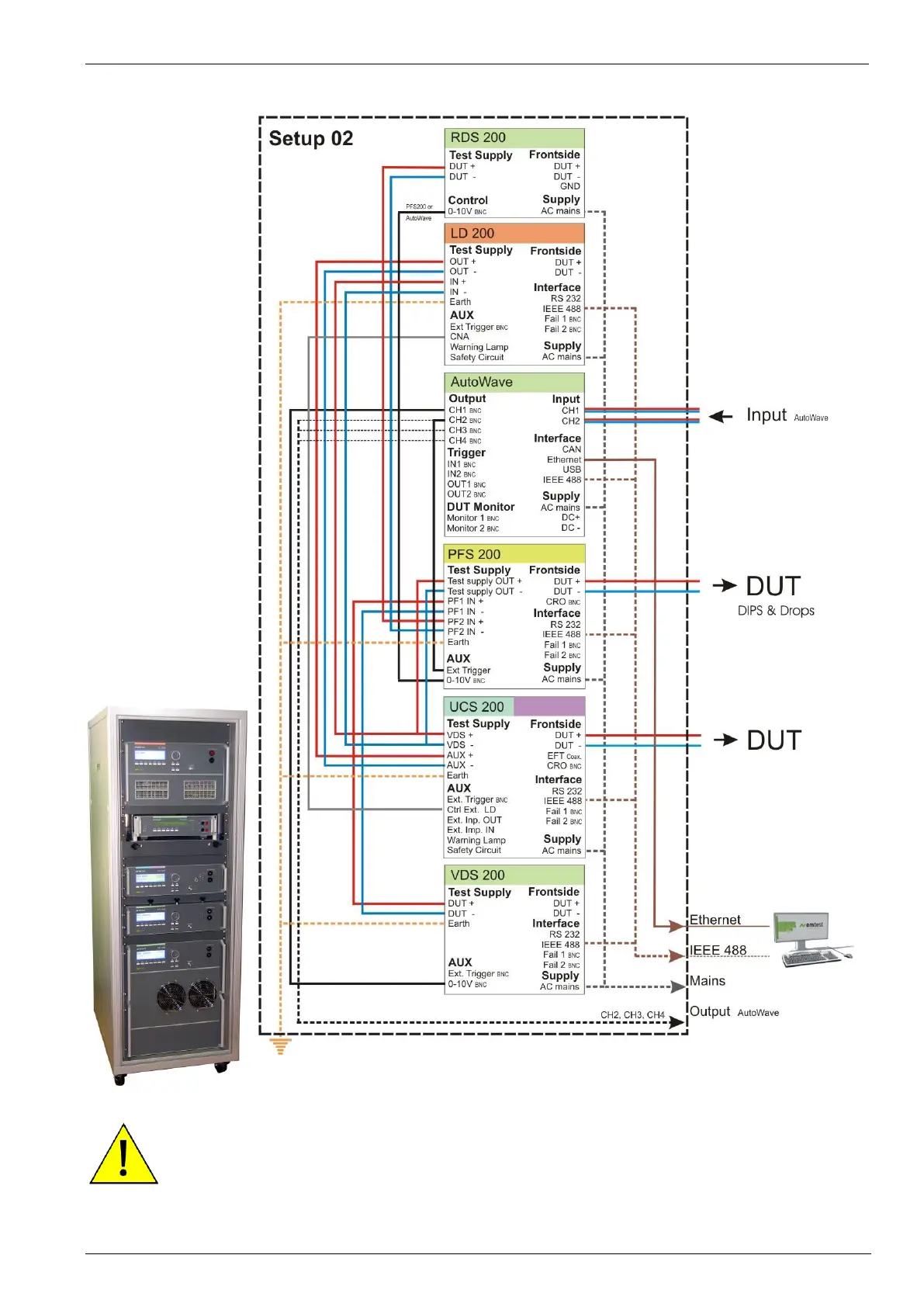

Setup example with:
AutoWave
UCS 200N
VDS 200Nx
LD200N
PFS 200N
RDS 200N
Note : Do never connect The PFS200N output 0-10V in parallel with any Autowave output. In this
case the controlled DC source will deliver a wrong output signal. It is not allowed to
connect two output sources in parallel.
