EM TEST RDS 200N User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 12 / 57
2.3.2.

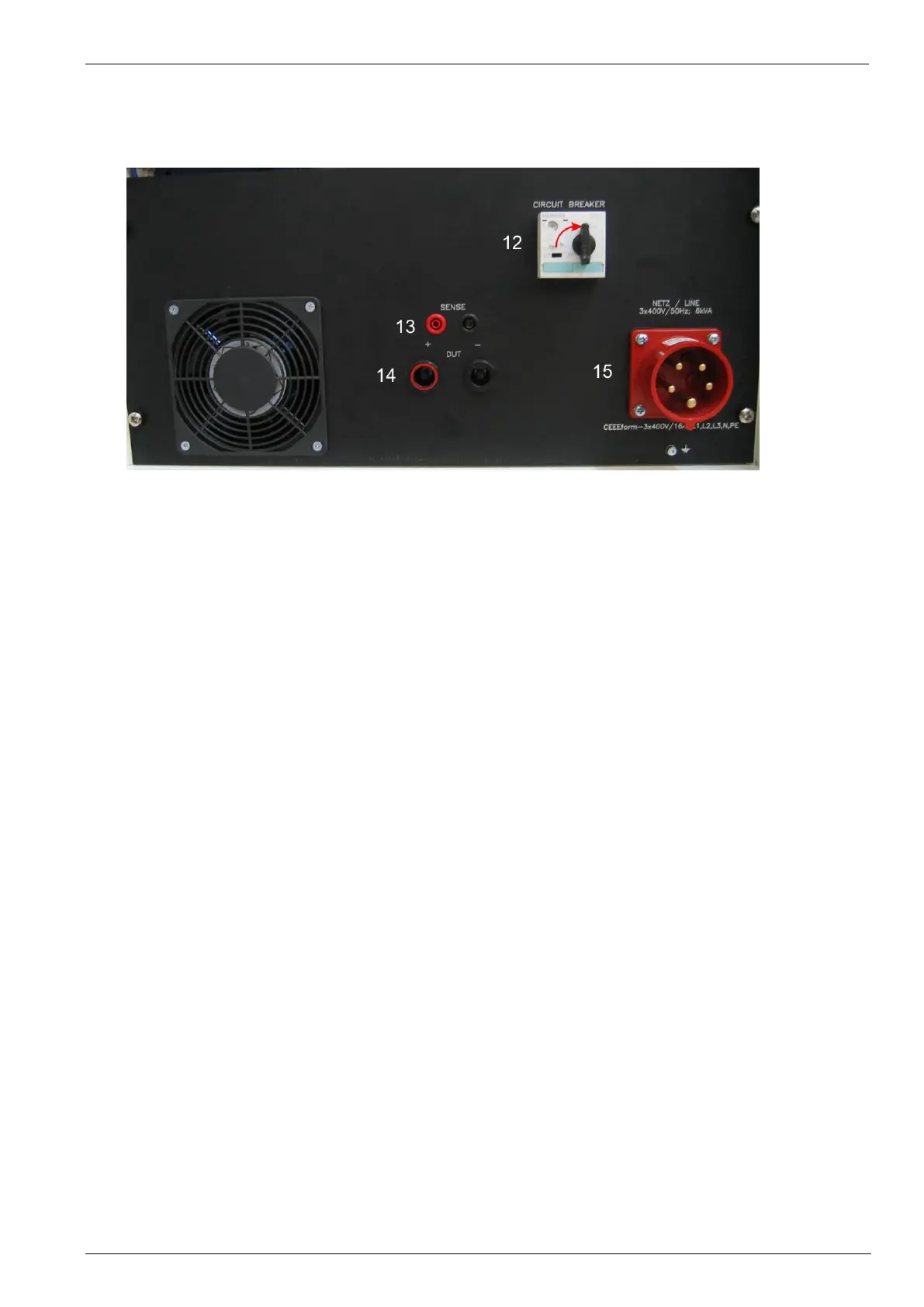

Rear view VDS200N100.1
12 Main Switch
13 Sense input
14 DUT Test supply output
15 Mains input CEE 3x400V 16A
12 Power On switch
The power on switch is a circuit breaker model Siemens 3RV10 21-1JA1 with overcurrent protection. For switch on
the user has to put the switch in the illustrated position.
13 Sense input
Sense input for dc supply. (2x banana plug 4mm)
14 DUT Test supply output
At this 6mm output the generator can be loaded with the maximum This plugs are in parallel to the plugs
“TEST SUPPLY” at the front side.
15 Mains CEE 3x400V 16A
3 x 400/ 50Hz 6kVA
CEE plug type Mennekes 2069
3x400/16A L1, L2, L3, N, PE
