Technical data VDS 200N100.6
The VDS 200N100.6 is a bipolar DC source with the following technical data:
Output voltage
U = -5 V to + 70 V ± 10 % Settings in 0.1V Steps
Output resolution
internal ADC 8 Bit : approx. 0.24V at range 0…60V
Current VDS 200N100.6
I = 0A – 100A ± 10%
Voltage modulation
30kHz Modulation 12Vpp
50kHz Modulation 10Vpp
Sink operation
At DUT + 15V at DUT +48V
500A; 10ms 230A; 10ms
300A; 100ms 138A; 100ms
200A; 200ms 92A; 300ms
100A; continuous 46A: continuous
Power lost at 23± 5C
P = (DUT-Voltage + countervoltage-Charge-C) x I
500A : (14V + 15V) x 500A = 29V x 500A = 14‘500W; 10ms
230A : (48V + 15V) x 230A = 63V x 230A = 14‘500W; 10ms
230A : (14V + 15V) x 300A = 29V x 230A = 8‘700W; 100ms
138A : (48V + 15V) x 138A = 63V x 138A = 8‘700W; 100ms
200A : (14V + 15V) x 200A = 29V x 200A = 5‘800W; 200ms
92A : (48V + 15V) x 928A = 63V x 92A = 5‘800W; 200ms
100A : (14V + 15V) x 100A = 29V x 100A = 2‘900W; continuous
46A : (14V + 15V) x 46A = 63V x 46A = 2‘900W; continuous
Risetime DC coupled
< 10µs (10% - 90%)
Frequency range
DC .. 100kHz
Cooling
Air cooling 3-stages
Mains Supply
3 x 400V 32A/phase
Weight
Approx. 230kG

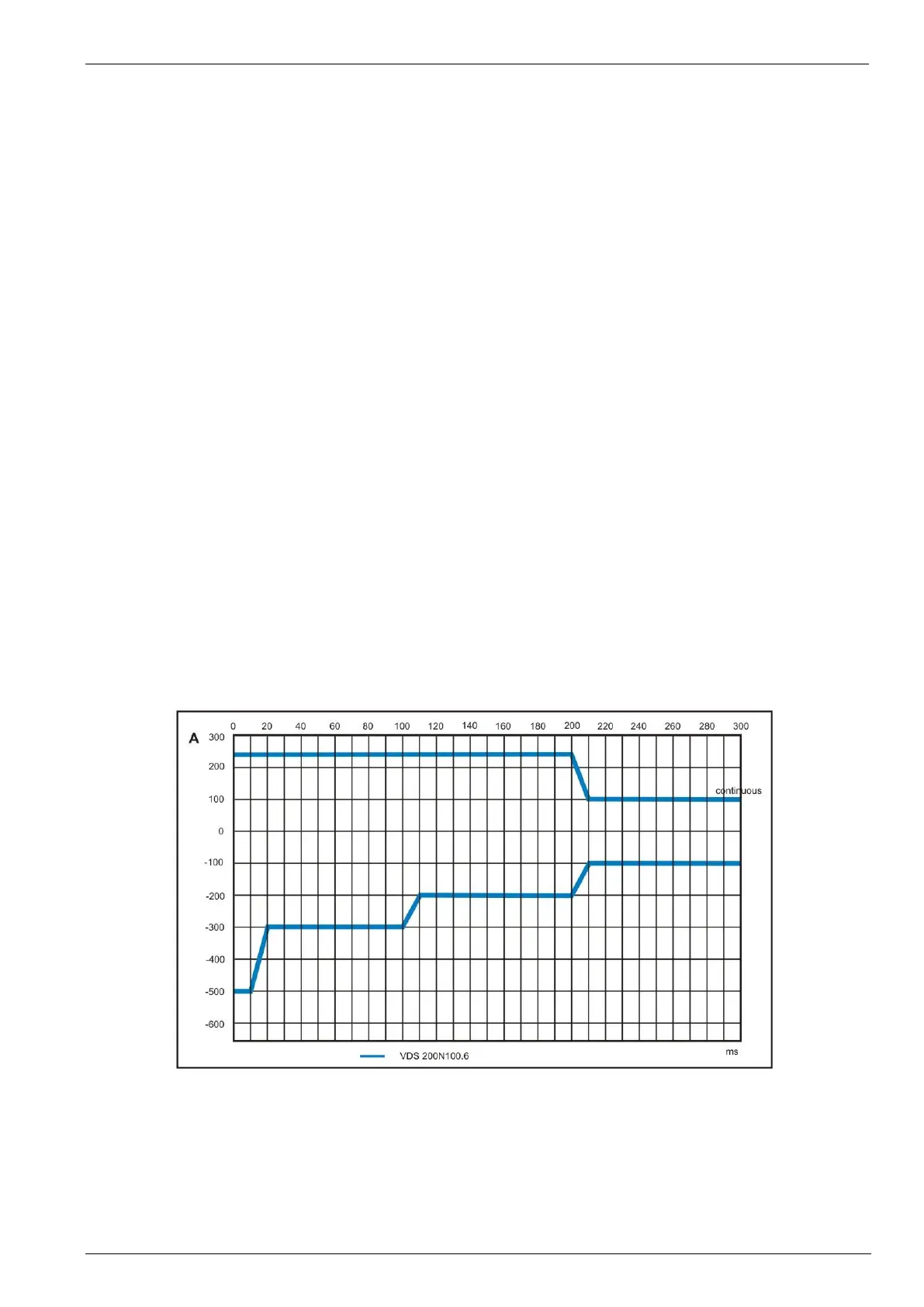

Dynamic current limitter VDS200N100.6
- The different ranges of the sink operatings are working with integrators. At max values the currenntwil be
limited to 100A. If the max. integrated power is reached, the controller reduces to the nominal current of 100A
- If the current specs are exceed, the VDS 200N100.6(10ms) controlls back to the setted voltage.
- At overtemperature the device will switch off the output voltage.
