EM TEST RDS 200N User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 25 / 57
3.3.4.2.

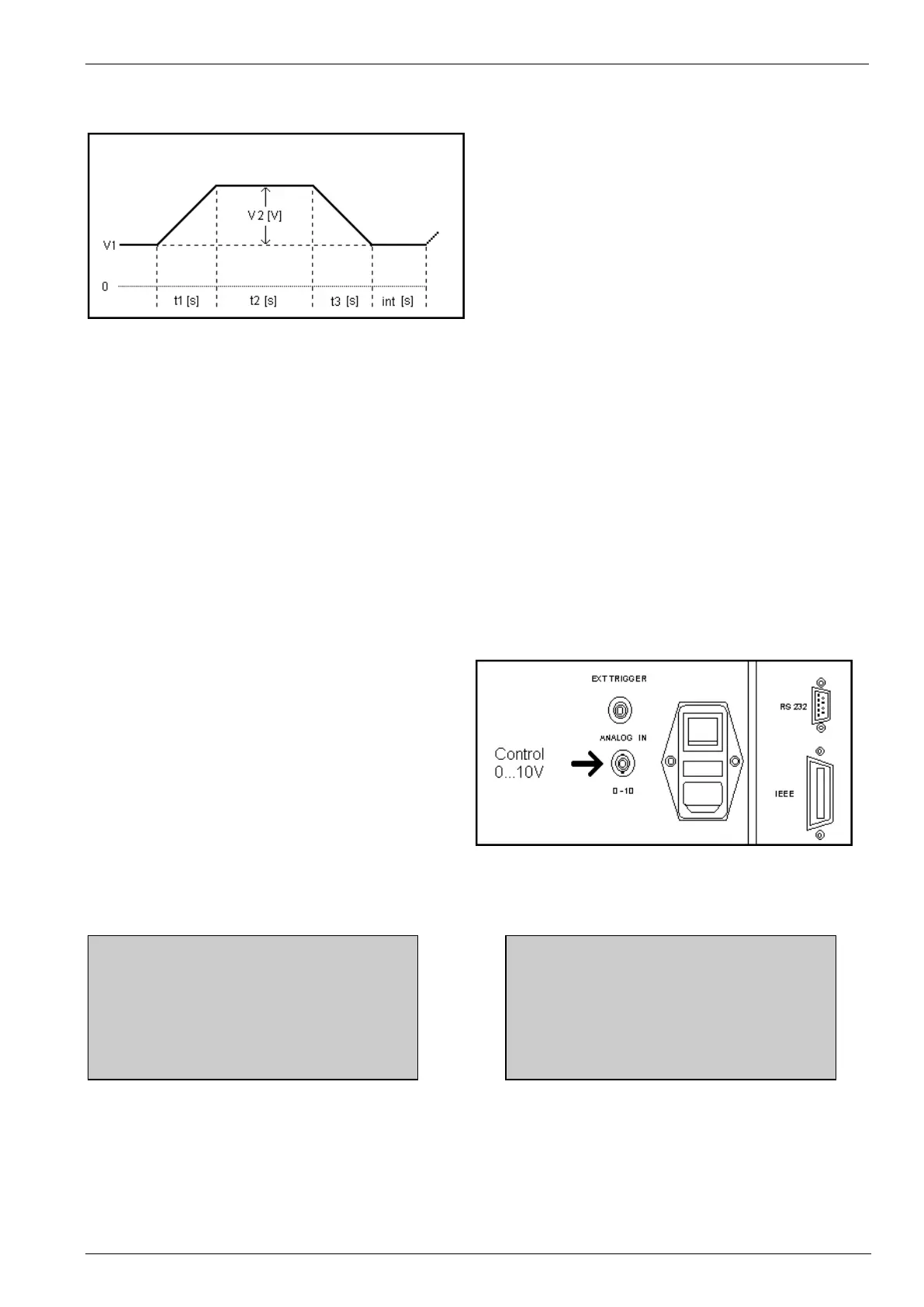

Jump Start
Limitations
V1 + V1 <= 30.0V (60.0V)
V1 + V1 = 0.0V
Parameters:
V1
0.0V
-
30.0V (60.0V)
V2
- 30.0V (- 60.0V)
-
30.0V (60.0V)
t1
0.01s
-
999.99s
t2
0.01s
-
999.99s
t3
0.01s
-
999.99s
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
30A (Imax)
3.3.4.3.
VDS Extern via the analogue input
The power amplifier can be driven by an external control voltage (0 - 10V), e.g. from an external waveform
generator. The maximum bandwidth is 50kHz for generators up to 35A output current. For higher currents the
bandwidth is limited to 30kHz.
For this purpose the operator must select VDS Extern
by pressing the related function key. The Extern mode
is displayed and the unit can only be operated via the
coaxial BNC input ANALOG IN at the rear part.
Parameters:
Input voltage at BNC input :0...10V dc
f max up to : 25kHz up to 2.6Vpp
30kHz up to 1.6Vpp
50kHz up to 1.0Vpp
Page 6 (Change of page 1/2) Page 6 (Change of page 2/2)
Extern
Extern
I = 30 A
Voltage Current
13.5 V 14.5 A
I = 30 A
Start Change
Stop
F1
F2
F3
F4
F5
F6
F7
F1
F2
F3
F4
F5
F6
F7
