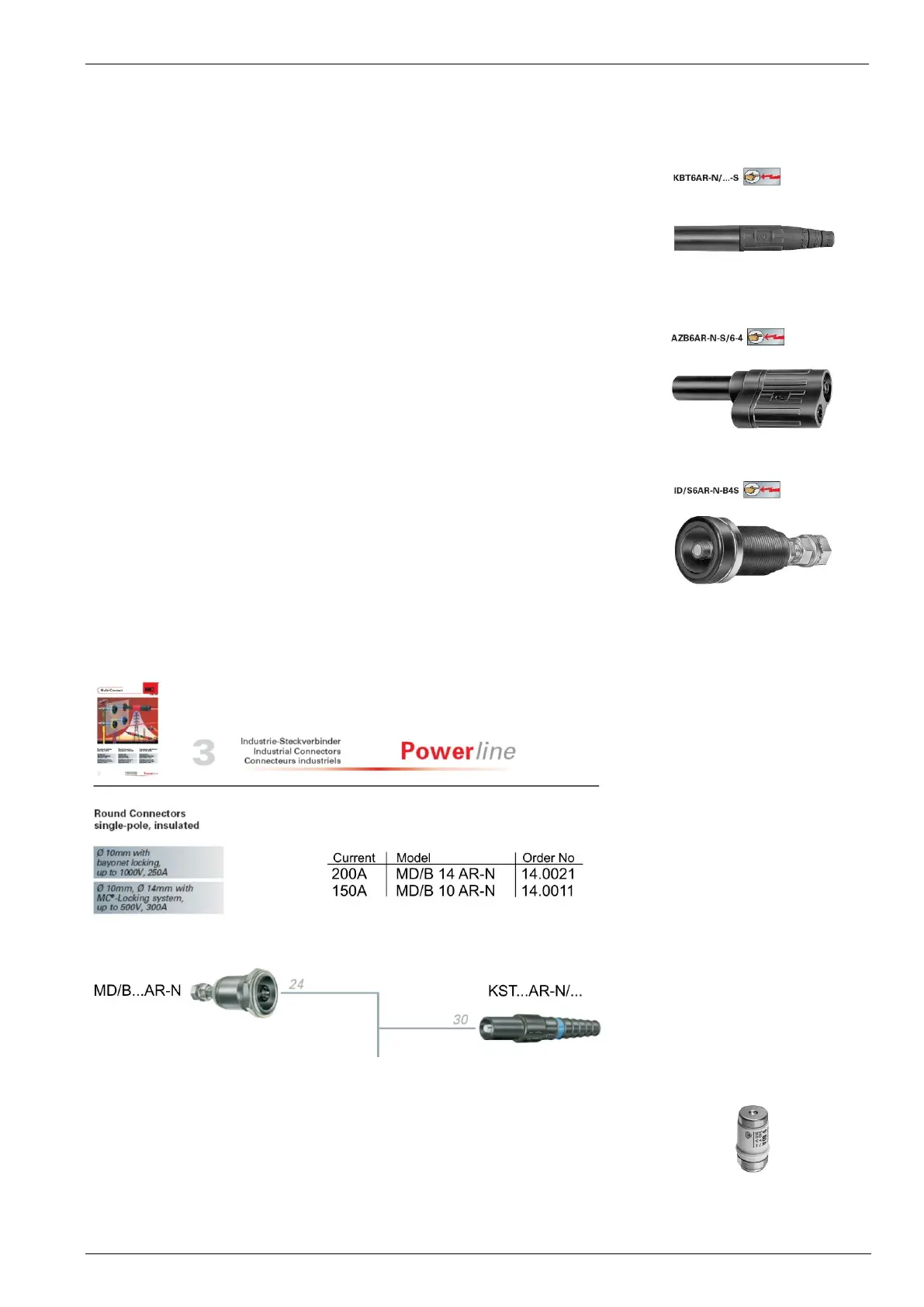

100A Plugs and connectors from Multi Contact
Safety sockets KBT6AR-N/...-S with snap-in lock and crimp connection
Model KBT6AR-N/...-S safety sockets are sockets with locking devices and for
crimping onto highly flexible Cu conductor with cross-sections of 10mm2, 16mm2
or 25mm2.
This safety socket is suitable for mating with either safety flush-mounting plugs or
plugs model KST6AR-N. Used together with a flush-mounting plug it acts as an
appliance connector and with plugs as a coupler.
Safety branch adapter AZB6AR-N-S/6-4
Safety branch adapter with snap-in lock and ergonomic PA/TPE insulation that
grips well. Mating plugs with suitable locking devices can be snap-locked into the
socket. With one pick-off socket Ø 6mm and two safety sockets Ø 4mm for
voltage tests up to 600V, CATIII.
Safety flush-mounting plugs ID/S6AR-N-B4S with snap-in lock and threaded stud
Model ID/S6AR-N-B4S safety flush-mounting plugs are insulated plugs designed
for flush mounting in housings and panels. The plugs are designed to mate with
sockets KBT6AR-N. The resulting plug connections are securable by means of
snap-in lock. The plug ID/S6AR-N-B4S also mates with Ø 4mm MC Safety plugs,
because the Ø 6mm plug has a Ø 4mm socket hole. The internal connection is
made with an M6 threaded stud with nuts and washers. These safety flush-
mounting plugs are also used to be connected with test leads according to the test
accessories IEC/EN61010, (UL3111) and are UL recognized.
